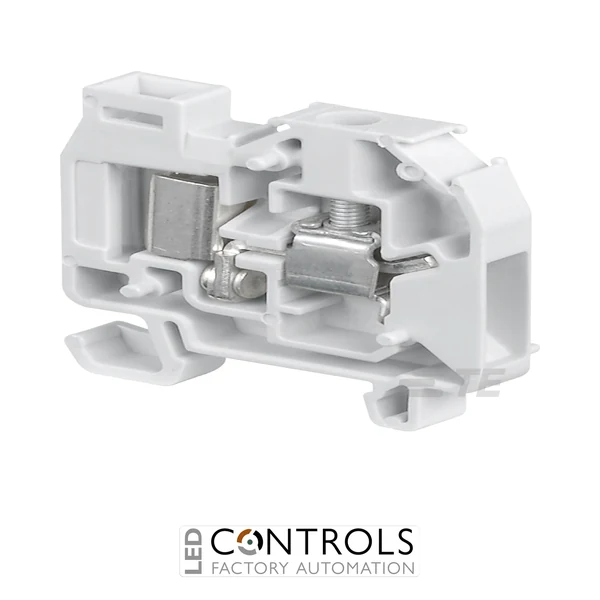

TE Connectivity 1SNA299552R0500 DRE4/6.ADO is a compact 1.5 mm² grey miniature terminal block combining ADO and screw-clamp connections with ratings of 17.5 A and 800 V.
£1.45
The TE Connectivity 1SNA299552R0500, also identified as DRE4/6.ADO or DRE 4/6 ADO, is a compact 1.5 mm² miniature terminal block from the Entrelec SNA ADO range. Designed specifically for applications where installation space is highly restricted, it combines ADO insulation-displacement technology with a conventional screw-clamp connection in a compact 6 mm profile.
The Entrelec ADO System enables fast and reliable conductor termination while the screw-clamp side provides a familiar connection method for standard wiring. The ADO connection can accept up to two conductors, making the DRE4/6.ADO particularly useful where compact dimensions, efficient wiring and flexible connection methods are required within control equipment.
Rated at 17.5 A and 800 V, the 1SNA299552R0500 supports rigid conductors from 0.28–1.5 mm² and flexible conductors from 0.34–1.5 mm². Its grey V0 thermoplastic housing, IP20 main-terminal protection and broad -55 to +110 °C operating range make it suitable for demanding industrial control and automation applications.
The DRE4/6.ADO combines two established conductor termination methods within a miniature terminal format. Its ADO connection provides rapid insulation-displacement termination and can accommodate up to two wires, while the screw-clamp connection allows conventional conductor termination on the opposite side of the circuit.
At only 6 mm wide, the terminal is particularly useful in compact equipment where available mounting space is limited. Its 17.5 A current rating, 800 V voltage rating and V0 insulating construction provide dependable electrical performance for industrial automation and control applications.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA ADO |
| Model | DRE4/6.ADO |
| Part number | 1SNA299552R0500 |
| Alternative designation | DRE 4/6 ADO |
| Product type | Miniature terminal block |
| Connection technology | ADO insulation-displacement / screw clamp |
| Number of levels | 1 |
| Rated cross-section | 1.5 mm² |
| Rigid conductor range | 0.28–1.5 mm² |
| Flexible conductor range without ferrule | 0.34–1.5 mm² |
| Rated current | 17.5 A |
| Rated voltage | 800 V |
| Degree of protection | IP20 at main terminals |
| Insulating material | Thermoplastic |
| Flammability classification | UL94 V0 |
| Colour | Grey |
| Mounting rail | TH15-5.5 |
| Width | 6 mm |
| Height | 31 mm |
| Depth | 18.5 mm |
| Net weight | 5 g |
| Operating temperature | -55 to +110 °C |
| Storage temperature | -55 to +110 °C |
| Pack quantity | 20 pieces |
| EAN | 3472592995526 |
The 1SNA299552R0500, also known as DRE4/6.ADO, is a compact 1.5 mm² miniature terminal block combining Entrelec ADO insulation-displacement technology with screw-clamp termination.
The DRE4/6.ADO has a rated current of 17.5 A and a rated voltage of 800 V.
The terminal supports rigid conductors from 0.28–1.5 mm² and flexible conductors without ferrules from 0.34–1.5 mm².
The terminal measures approximately 6 mm wide, 31 mm high and 18.5 mm deep, with a net weight of approximately 5 g.
The DRE4/6.ADO is designed for installation on a compact TH15-5.5 mounting rail, making it particularly suitable for miniature terminal assemblies.
TE Connectivity and Entrelec SNA ADO miniature terminal blocks combine space-saving dimensions with efficient ADO and screw-clamp conductor termination, providing dependable connectivity for compact industrial control and automation systems.
