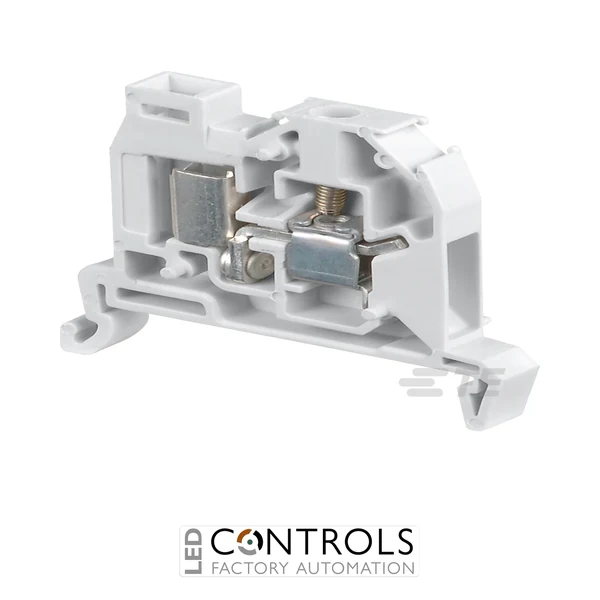

TE Connectivity DSE4/8.ADO 1SNA299557R0200 is a grey 8 mm feed-through miniblock without a separating rib, combining ADO and screw-clamp connections with a 24 A IEC current rating, 2.5 mm² rated cross-section and 1000 V IEC rated voltage.
Replacement product
52176
SKU: 1SNA299493R2300
£1.31 ex VAT
View
The TE Connectivity / Entrelec DSE4/8.ADO, part number 1SNA299557R0200, is a grey feed-through ADO miniblock terminal designed for compact industrial wiring installations. It combines Entrelec ADO connection technology with a conventional screw-clamp connection, providing two termination methods within a single DIN rail terminal.
This DSE version is manufactured without the separating rib for installation at the extremity of a compatible terminal block assembly and incorporates two notches for 1–2.5 mm² ADO conductors. With an 8 mm pitch, it provides a rated cross-section of 2.5 mm², an IEC rated current of 24 A and an IEC rated voltage of 1000 V.
The screw-clamp side accepts rigid conductors from 0.2–4 mm² and flexible conductors from 0.22–4 mm², while the ADO connection accommodates 1–2.5 mm² conductors. Measuring approximately 42.3 × 8 × 28 mm and weighing 7 g, the DSE4/8.ADO is a compact solution for industrial automation, machinery and control-panel applications.
The DSE4/8.ADO combines the speed and compactness of Entrelec's ADO connection system with the familiarity and conductor flexibility of a conventional screw clamp. The ADO side accommodates 1–2.5 mm² conductors and supports up to two wires per ADO connection, while the screw-clamp side accepts conductors up to 4 mm².
Unlike the standard DS4/8.ADO, the DSE4/8.ADO is supplied without the separating rib and is intended for use at the extremity of a compatible terminal block assembly. Its 24 A IEC current rating, 1000 V IEC voltage rating and compact 8 mm width make it well suited to space-conscious industrial terminal installations.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA / ADO |
| Model | DSE4/8.ADO |
| Manufacturer part number | 1SNA299557R0200 |
| Product type | Feed-through miniblock terminal block |
| Configuration | Without rib for terminal block assembly extremity |
| Connection technology | ADO System / screw clamp |
| Number of levels | 1 |
| Rated cross-section | 2.5 mm² |
| IEC rated current | 24 A |
| UL rated current | 25 A |
| IEC rated voltage | 1000 V |
| UL rated voltage | 600 V |
| Rated short-time withstand current | 300 A for 1 s |
| ADO rigid conductor capacity | 1–2.5 mm² |
| ADO flexible conductor capacity | 1–2.5 mm² |
| ADO UL conductor range | 16–14 AWG |
| Screw-clamp rigid conductor capacity | 0.2–4 mm² |
| Screw-clamp flexible conductor capacity | 0.22–4 mm² |
| Screw-clamp UL conductor range | 22–10 AWG |
| Wire stripping length | 9.5 mm |
| Tightening torque | 0.5–0.8 Nm |
| Recommended screwdriver | 4 mm slotted |
| Spacing / width | 8 mm |
| Height | 42.3 mm |
| Depth | 28 mm |
| Degree of protection | IP20 |
| Colour | Grey |
| DIN rail mounting | TH 35-7.5 / TH 35-15 |
| Operating temperature | -55 to +110 °C |
| Storage temperature | -55 to +110 °C |
| Product net weight | 7 g |
| Pack quantity | 20 |
| EAN | 3472592995571 |
| Product status | Discontinued; DS4/8.ADO 1SNA299493R2300 is listed as the replacement |
The DSE4/8.ADO is a grey feed-through miniblock terminal combining Entrelec ADO and screw-clamp connection technologies in an 8 mm-wide format.
The DSE4/8.ADO is supplied without the separating rib for use at the extremity of a terminal block assembly, while the DS4/8.ADO is the corresponding version with a rib.
The terminal has an IEC rated current of 24 A, a rated cross-section of 2.5 mm² and an IEC rated voltage of 1000 V.
The ADO connection accepts rigid and flexible conductors from 1–2.5 mm², corresponding to 16–14 AWG under the applicable UL specification.
The screw-clamp connection accepts rigid conductors from 0.2–4 mm² and flexible conductors from 0.22–4 mm².
Part number 1SNA299557R0200 is listed as discontinued, with the ribbed DS4/8.ADO 1SNA299493R2300 identified as its replacement.
TE Connectivity / Entrelec ADO miniblocks provide compact connection solutions for industrial automation and panel building, with the DSE4/8.ADO combining a 24 A rating, 1000 V IEC capability and dual ADO/screw-clamp termination in a space-saving 8 mm format.
