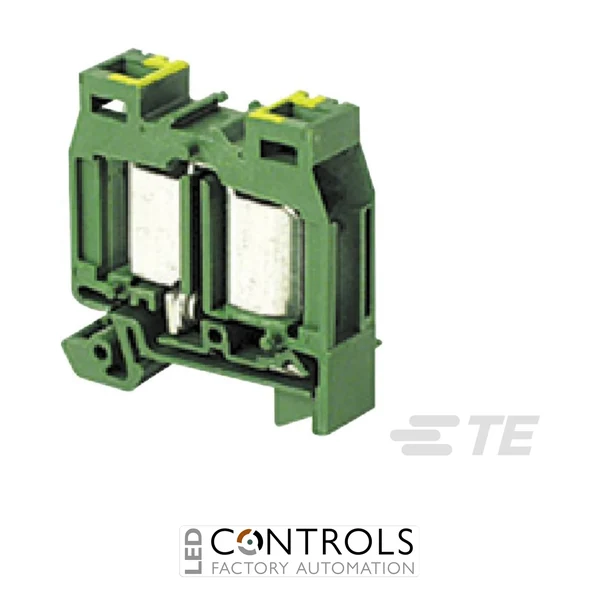

TE Connectivity / Entrelec DR2.5/8.P.ADO 1SNA299633R0600 is a compact green/yellow 2.5 mm² ADO-ADO protective-earth terminal block for reliable grounding connections in industrial control and automation systems.
Replacement product
52192
SKU: 1SNA299632R0500
£4.70 ex VAT
View
The TE Connectivity DR2.5/8.P.ADO 1SNA299633R0600 is a compact green/yellow protective-earth terminal block with ADO insulation displacement connections. Part of the established TE Connectivity / Entrelec SNA ADO range, this miniblock is designed for dependable protective-earth connections in industrial control panels, machinery and automation equipment where installation space is restricted.
The DR2.5/8.P.ADO uses ADO connection technology on both conductor connections, providing fast and consistent conductor termination while supporting up to two wires per connection. Its screwless rail contact establishes the protective-earth connection to the mounting rail without relying on an operator-adjusted rail-contact screw, helping provide secure grounding in demanding industrial installations.
With a rated cross-section of 2.5 mm², conductor capacity from 1–2.5 mm² and a rated short-time withstand current of 300 A for 1 s, the 1SNA299633R0600 provides robust protective-earth connectivity in a compact 8 mm-wide format. Its green/yellow housing provides immediate protective-earth identification, while IP20 protection supports safe integration into enclosed electrical equipment.
Protective-earth terminal blocks provide the essential connection between equipment protective conductors and the grounding system of an electrical installation. The DR2.5/8.P.ADO combines this function with the Entrelec ADO System, using insulation displacement technology to provide reliable conductor connections without conventional conductor-clamping screws.
The terminal's screwless rail contact provides the protective-earth connection directly to its compatible mounting rail and avoids dependence on operator-applied rail-contact torque. Together with its compact 8 mm profile and support for up to two wires per connection, this makes the DR2.5/8.P.ADO particularly useful for densely populated industrial control and automation panels.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Series | SNA ADO |
| Model | DR2.5/8.P.ADO |
| Manufacturer part number | 1SNA299633R0600 |
| Product type | Protective-earth IDC terminal block / miniblock |
| Function | Ground / protective-earth connection |
| Connection type | ADO insulation displacement connection |
| Connection configuration | ADO / ADO |
| Rated cross-section | 2.5 mm² |
| ADO conductor capacity | 1–2.5 mm² |
| Conductor range | 16–14 AWG |
| Conductors per connection | Up to 2 |
| Rated short-time withstand current | 300 A for 1 s |
| Width | 8 mm |
| Height | 32 mm |
| Depth | 28 mm |
| Protection rating | IP20 at main terminals |
| Colour | Green/yellow |
| Rail connection | Screwless protective-earth contact |
| Mounting rail | TH15-5.5 |
| Product weight | 8 g |
| EAN | 3472592996332 |
| Pack quantity | 100 |
The DR2.5/8.P.ADO is a protective-earth terminal block designed to connect equipment grounding conductors to the mounting rail in industrial control panels, machinery and automation systems.
The 1SNA299633R0600 uses Entrelec ADO insulation displacement connections on both sides, providing fast conductor termination without conventional conductor-clamping screws.
The terminal is designed for suitable conductors from 1–2.5 mm², corresponding to a conductor range of 16–14 AWG.
The terminal incorporates a screwless rail contact that provides the protective-earth connection through the compatible TH15-5.5 mounting rail without an operator-dependent rail-contact screw connection.
The DR2.5/8.P.ADO measures approximately 32 mm high, 8 mm wide and 28 mm deep and has a product weight of approximately 8 g.
TE Connectivity / Entrelec SNA ADO protective-earth terminal blocks provide panel builders, machine manufacturers and automation engineers with compact, dependable grounding connections designed for efficient installation in space-restricted industrial electrical systems.
