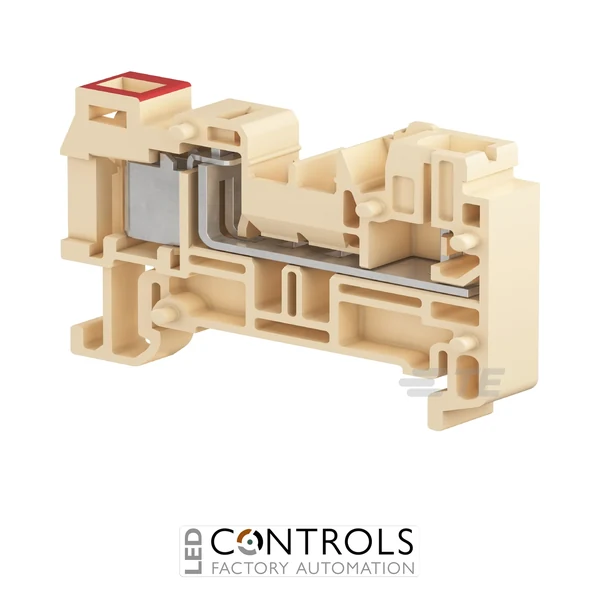

TE Connectivity / Entrelec D1.5/7.ADO-CPE.NF 1SNA400153R0700 is a 16 A, 500 V pluggable feed-through DIN rail terminal block with ADO insulation displacement connection technology for industrial control and automation wiring.
£2.28
The TE Connectivity / Entrelec D1.5/7.ADO-CPE.NF 1SNA400153R0700 is a compact and reliable pluggable feed-through DIN rail terminal block designed for industrial control panels, machinery and automation systems. Featuring Entrelec ADO insulation displacement connection (IDC) technology, it provides efficient conductor termination while supporting modular and maintainable electrical installations.
This single-level terminal block provides one feed-through circuit across two positions and incorporates a plug disconnect arrangement for convenient connection and disconnection. Its polyamide housing, compact dimensions and DIN rail mounting make it well suited to densely populated electrical cabinets where dependable connections and efficient panel assembly are important.
With an IEC rated voltage of 500 V and rated current of 16 A, the D1.5/7.ADO-CPE.NF is suitable for a wide range of industrial signal and power distribution applications. It accommodates 1.5 mm² / 16 AWG conductors, features a 7.62 mm pitch and mounts directly onto TH35 DIN rail.
Pluggable feed-through terminal blocks provide a convenient interface between field wiring and electrical control equipment while allowing circuits to be disconnected without dismantling the complete terminal assembly. This can simplify installation, testing, maintenance and equipment replacement in industrial control systems.
The D1.5/7.ADO-CPE.NF combines this pluggable architecture with Entrelec ADO insulation displacement connection technology. Its compact DIN rail format, wide operating temperature range and robust electrical ratings make it suitable for panel builders and automation engineers requiring reliable modular connections in demanding industrial environments.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Model | D1.5/7.ADO-CPE.NF |
| Manufacturer part number | 1SNA400153R0700 |
| Product type | Pluggable DIN rail terminal block |
| Block function | Feed-through |
| Number of circuits | 1 |
| Number of levels | 1 |
| Number of positions | 2 |
| Rated voltage (IEC) | 500 V |
| Rated current (IEC) | 16 A |
| Operating voltage | 500 V AC |
| Maximum contact current rating | 16 A |
| Short-time withstand current at 1 s | 180 A |
| Wire size | 1.5 mm² / 16 AWG |
| Termination method | Insulation displacement (IDC) |
| Disconnect type | Plug |
| Housing material | Polyamide |
| Colour | Beige |
| Protection rating | IP20 |
| DIN rail mounting | TH35-7.5 / TH35-15 |
| Product spacing | 7.62 mm |
| Dimensions (H × W × D) | 48.5 × 7.6 × 29 mm |
| Weight | 8.4 g |
| Operating temperature | -55 to +110 °C |
The 1SNA400153R0700 is a pluggable feed-through DIN rail terminal block used to provide reliable electrical connections in industrial control panels, machinery and automation systems.
The terminal block has an IEC rated voltage of 500 V and an IEC rated current of 16 A.
The D1.5/7.ADO-CPE.NF is specified for a conductor size of 1.5 mm² / 16 AWG.
The terminal uses insulation displacement connection (IDC) technology from the Entrelec ADO system, providing efficient conductor termination for industrial wiring applications.
The terminal block is designed for mounting on TH35-7.5 and TH35-15 DIN rails, making it suitable for standard industrial control-panel installations.
TE Connectivity / Entrelec terminal blocks provide compact, dependable connection solutions for industrial panel builders, machine manufacturers and automation engineers requiring efficient installation and reliable electrical performance.
