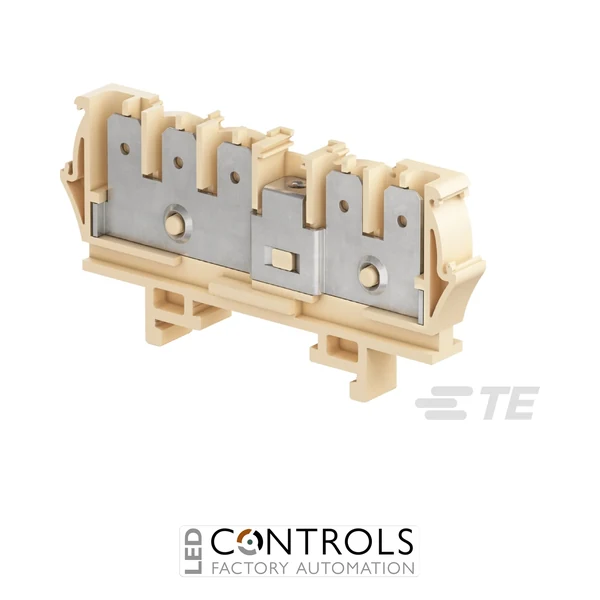

TE Connectivity / Entrelec HD6/7.5G 1SNA400766R1500 is a beige 6 mm², 25 A, 320 V quick-connect feed-through DIN rail terminal block with five 6.3 × 0.8 mm Faston-style tabs for industrial and transportation wiring.
£4.74
The TE Connectivity / Entrelec HD6/7.5G 1SNA400766R1500 is a compact and reliable quick-connect feed-through DIN rail terminal block designed for efficient electrical connections in industrial control panels, railway equipment and automation systems. Its Faston-style quick-connect design uses five vertical tabs, providing convenient push-on connections without conventional screw termination.
The HD6/7.5G features five vertical 6.3 × 0.8 mm quick-connect tabs connected as a single electrical circuit. This configuration enables fast installation and straightforward servicing while also supporting transverse connections. Its beige polyamide housing and compact DIN rail format make it well suited to high-density industrial wiring assemblies.
With a rated cross-section of 6 mm², a DIN rated current of 25 A and rated voltage of 320 V AC/DC, the HD6/7.5G provides dependable electrical performance for control and distribution circuits. Its 7 mm pitch and compatibility with Type 2, TH35-7.5 and TH35-15 mounting rails provide flexibility for professional panel-building applications.
Quick-connect terminal blocks provide an efficient alternative to conventional screw connections by allowing compatible push-on receptacles to connect directly to flat electrical tabs. This can reduce assembly and maintenance time while providing convenient connection and disconnection in industrial equipment, control cabinets and transportation electrical systems.
The HD6/7.5G provides five 6.3 × 0.8 mm vertical quick-connect tabs on a single circuit, offering multiple connection points within a compact terminal footprint. Transverse connection is also possible, and jumper bars can be used by removing the terminal's precut partition when the installation requires adjacent circuits to be interconnected.
| Manufacturer | TE Connectivity / Entrelec |
|---|---|
| Model | HD6/7.5G |
| Manufacturer part number | 1SNA400766R1500 |
| Product type | Quick-connect / Faston terminal block |
| Block function | Feed-through |
| Number of circuits | 1 |
| Number of levels | 1 |
| Number of quick-connect tabs | 5 |
| Quick-connect tab size | 6.3 × 0.8 mm |
| Rated cross-section | 6 mm² |
| Wire size | 6 mm² / 10 AWG |
| Conductor capacity | 0.34–6 mm² |
| Rated voltage (DIN) | 320 V AC |
| Rated current (DIN) | 25 A |
| Rated voltage (NF C) | 320 V AC/DC |
| Rated current (NF C) | 25 A |
| Rated voltage (NF F 61-017) | 320 V AC/DC |
| Rated current (NF F 61-017) | 20 A |
| Maximum contact current rating | 25 A |
| Operating voltage | 320 V AC |
| Termination method | Quick connect |
| Housing material | Polyamide |
| Colour | Beige |
| DIN rail mounting | Type 2 / TH35-7.5 / TH35-15 |
| Product spacing | 7 mm |
| Dimensions (H × W × D) | 69.5 × 7 × 29.5 mm |
| Weight | 11 g |
| Operating temperature | -55 to +110 °C |
| Compliance | CE / RoHS / EAC |
| Pack quantity | 25 |
| EAN | 3472594007661 |
The HD6/7.5G is a quick-connect feed-through DIN rail terminal block used to provide multiple Faston-style connection points on a single circuit in industrial control, automation and transportation electrical systems.
The terminal block has five vertical quick-connect tabs, each measuring 6.3 × 0.8 mm, connected as a single electrical circuit.
The HD6/7.5G has a DIN rated voltage of 320 V AC and rated current of 25 A, with a rated conductor cross-section of 6 mm².
The HD6/7.5G has a rated cross-section of 6 mm² and supports conductors from 0.34–6 mm².
The terminal block can be mounted on Type 2, TH35-7.5 and TH35-15 rails, providing flexibility for industrial and transportation electrical installations.
TE Connectivity / Entrelec quick-connect terminal blocks provide compact and dependable wiring solutions for panel builders, railway equipment manufacturers and automation engineers requiring efficient installation, convenient servicing and reliable electrical connections.
