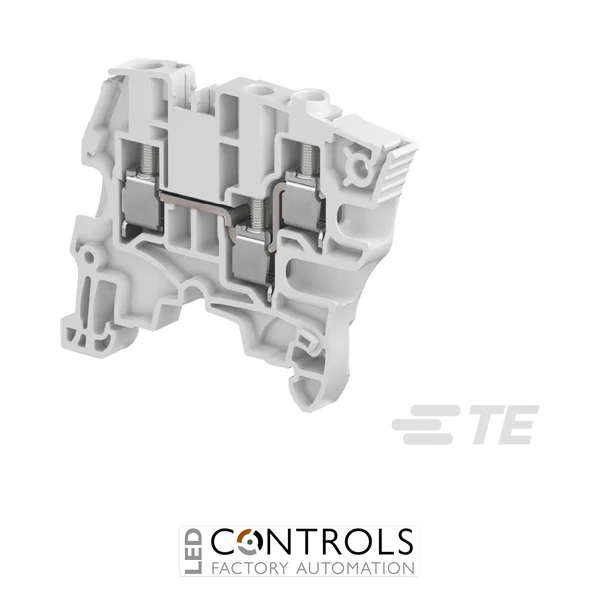

TE Connectivity ZS6-3S 1SNK506011R0000 is a grey 6 mm three-position feed-through screw clamp DIN rail terminal block rated at 32 A and 800 V IEC for conductors up to 6 mm².
£1.78
The TE Connectivity ZS6-3S 1SNK506011R0000 is a grey 3-position feed-through screw clamp terminal block from the ENTRELEC SNK series, designed for compact and dependable conductor distribution in industrial control, energy and electrical equipment applications. Its three connection positions provide increased connection density while maintaining a slim 6 mm spacing.
The ZS6-3S features 1 circuit and 1 level with established screw clamp termination technology. It accepts a single flexible conductor from 0.22–6 mm² or a single rigid stranded conductor from 0.2–6 mm², providing versatile connection capability for control and power wiring. The terminal mounts directly onto standard TH35-7.5 and TH35-15 DIN rails.
Rated at 32 A and 800 V IEC, the 1SNK506011R0000 also provides an 8000 V IEC impulse withstand rating and 480 A short-time withstand current for 1 s. Its durable grey polyamide housing provides IP20 protection and a UL 94 V-0 flammability rating, while an operating temperature range of -55 to +110 °C supports demanding industrial environments.
The TE Connectivity ZS6-3S is designed for applications requiring increased connection density without sacrificing straightforward installation or conductor access. Its three-position configuration provides up to three connections within a compact 6 mm terminal width, making it particularly useful for energy applications and other demanding industrial systems where efficient DIN rail utilisation is important.
With conductor capacities up to 6 mm², a 32 A IEC current rating and an 800 V IEC voltage rating, the 1SNK506011R0000 provides a versatile connection point for industrial control and electrical distribution wiring. Screw clamp technology, DIN rail compatibility and a broad operating temperature range help create secure, organised and maintainable terminal assemblies.
| Manufacturer | TE Connectivity |
|---|---|
| Brand / range | ENTRELEC SNK |
| Series | ZS6 |
| Manufacturer part number | 1SNK506011R0000 |
| Manufacturer description | ZS6-3S |
| Product type | Screw clamp terminal block |
| Block function | Feed-through |
| Connection type | Screw clamp |
| Colour | Grey |
| Housing material | Polyamide |
| Rated cross-section | 4 mm² |
| Number of positions | 3 |
| Number of circuits | 1 |
| Number of levels | 1 |
| Gauge type | A4-B3 |
| Product spacing | 6 mm |
| IEC current rating | 32 A |
| UL current rating | 30 A |
| CSA current rating | 30 A |
| IEC voltage rating | 800 V |
| UL / CSA operating voltage | 600 V |
| IEC impulse withstand voltage | 8000 V |
| Maximum dielectric withstand voltage | 2000 V |
| Short-time withstand current at 1 s | 480 A |
| Power loss | 1 W |
| Flexible conductor capacity | 0.22–6 mm² |
| Rigid stranded conductor capacity | 0.2–6 mm² |
| Rigid stranded conductor range | 24–10 AWG |
| Insulated ferrule capacity | 0.22–4 mm² |
| Non-insulated ferrule capacity | 0.22–4 mm² |
| Twin ferrule capacity | 0.22–2.5 mm² |
| Two flexible conductors per screw clamp | 0.2–2.5 mm² |
| Two rigid stranded conductors per screw clamp | 0.2–2.5 mm² |
| Wire stripping length | 10.5 mm |
| Tool size | 4 mm |
| DIN rail mounting | TH35-7.5 / TH35-15 |
| Height | 62 mm |
| Width / spacing | 6 mm |
| Length | 48.2 mm |
| Depth | 48.2 mm |
| Product weight | 11.8 g |
| Installation temperature | -5 to +40 °C |
| Operating temperature | -55 to +110 °C |
| Storage temperature | -55 to +110 °C |
| Protection rating | IP20 |
| Flammability rating | UL 94 V-0 |
| EAN | 3472599872738 |
It is a grey 3-position feed-through screw clamp terminal block from the ENTRELEC SNK series, providing 1 circuit and 1 level in a compact 6 mm format.
The ZS6-3S provides 3 connection positions, allowing increased connection density within a terminal block measuring just 6 mm wide.
The terminal accepts a single flexible conductor from 0.22–6 mm² or a single rigid stranded conductor from 0.2–6 mm². Ferrules and multiple-conductor connections are supported within their specified capacity ranges.
The 1SNK506011R0000 is rated at 32 A and 800 V according to IEC, with an 8000 V impulse withstand voltage and a short-time withstand current of 480 A for 1 s.
The TE Connectivity ZS6-3S is designed for mounting on standard TH35-7.5 and TH35-15 DIN rails, making it suitable for professional industrial control and distribution panel assemblies.
TE Connectivity ENTRELEC SNK terminal blocks provide panel builders, automation engineers and machine manufacturers with compact, dependable connection technology for creating organised, space-efficient and maintainable industrial electrical installations.
