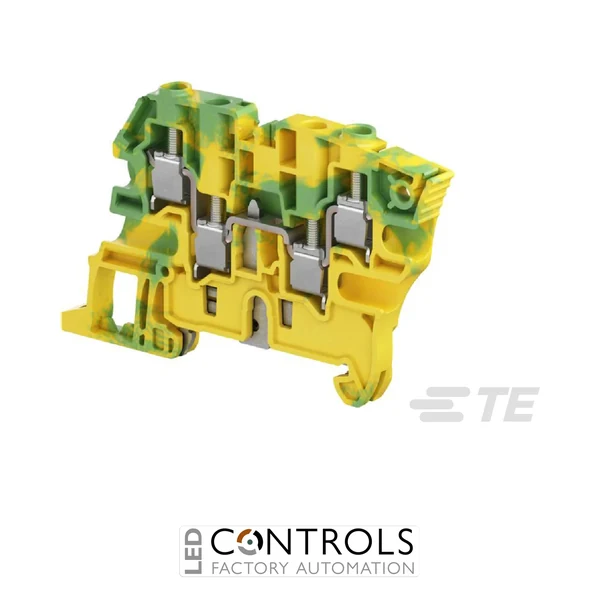

TE Connectivity ZS6-4S-PE 1SNK506152R0000 is a green/yellow four-position ENTRELEC SNK screw clamp ground terminal block with 6 mm spacing and a secure DIN rail protective earth contact for industrial electrical installations.
£5.75
The TE Connectivity ZS6-4S-PE 1SNK506152R0000 is a robust green/yellow ground screw clamp terminal block designed for protective earth connections in industrial control panels, machinery and electrical distribution systems. Part of the TE Connectivity ENTRELEC SNK Series, it combines four conductor connection positions with a secure rail contact to provide dependable grounding while conserving valuable DIN rail space.
Designed specifically for protective earth applications, the ZS6-4S-PE provides a direct electrical connection to the mounting rail through its screwless rail contact. This rail connection is non-operator-dependent and securely engages when the terminal block is snapped onto the DIN rail, helping improve installation safety and consistency.
The terminal accepts rigid or stranded conductors from 0.2–6 mm² and flexible conductors from 0.22–6 mm². Its compact 6 mm pitch, four connection positions and green/yellow polyamide housing make it an efficient solution for high-density protective earth wiring in industrial electrical assemblies.
Protective earth terminal blocks provide an essential low-impedance connection between equipment conductors and the grounded DIN rail. The TE Connectivity ZS6-4S-PE uses secure screw clamps for conductor termination together with a screwless rail contact, helping establish a dependable protective earth path without relying on a separate operator-adjusted rail connection.
The ZS6-4S-PE shares the same profile as the corresponding ZS6-4S terminal block, helping maintain aligned marking and consistent terminal assembly geometry. Its four connection positions and compact 6 mm spacing make it particularly suitable for control cabinets requiring multiple protective earth conductors within a limited DIN rail footprint.
| Manufacturer | TE Connectivity |
|---|---|
| Series | ENTRELEC SNK |
| Model | ZS6-4S-PE |
| Part number | 1SNK506152R0000 |
| Product type | Screw clamp terminal block |
| Block function | Ground / protective earth |
| Number of circuits | 1 |
| Number of positions | 4 |
| Number of levels | 1 |
| Colour | Green / yellow |
| Product spacing | 6 mm |
| Rated cross-section | 4 mm² |
| Maximum conductor cross-section | 6 mm² |
| Rigid / stranded conductor capacity | 0.2–6 mm² |
| Flexible conductor capacity | 0.22–6 mm² |
| Insulated ferrule capacity | 0.22–4 mm² |
| Non-insulated ferrule capacity | 0.22–4 mm² |
| Wire size | 24–10 AWG |
| Short-time withstand current at 1 s | 480 A |
| Dielectric withstand voltage | 2,000 V |
| Impulse withstand voltage (IEC) | 8,000 V |
| Wire stripping length | 10.5 mm |
| Tool size | 4 mm |
| Housing material | Polyamide |
| Flammability rating | UL 94V-0 |
| Protection rating | IP20 |
| Mounting type | DIN rail |
| DIN rail compatibility | TH35-7.5 / TH35-15 |
| Product height | 79.2 mm |
| Product depth | 48.3 mm |
| Product weight | 19.4 g |
| Installation temperature range | -5 to +40 °C |
| Operating temperature range | -55 to +110 °C |
It is a protective earth / ground terminal block designed to connect grounding conductors securely to the DIN rail in industrial control panels and electrical assemblies.
The ZS6-4S-PE provides four connection positions, allowing multiple protective earth conductors to be terminated on a compact 6 mm pitch terminal block.
It accepts rigid or stranded conductors from 0.2–6 mm² and flexible conductors from 0.22–6 mm², with a maximum conductor size equivalent to 10 AWG.
The terminal block incorporates a screwless rail contact that securely engages with the DIN rail, providing the protective earth connection when correctly installed.
The terminal block is designed for TH35-7.5 and TH35-15 DIN rails, making it suitable for standard industrial control cabinet and distribution panel installations.
TE Connectivity ENTRELEC SNK terminal blocks are engineered for dependable industrial electrical connectivity, providing secure conductor termination, space-efficient DIN rail installation and dedicated protective earth solutions for modern control and distribution systems.
