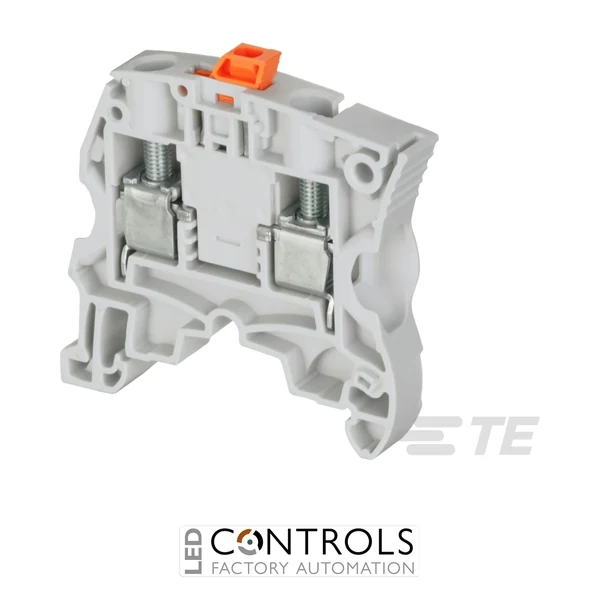

TE Connectivity 1SNK508315R0000 ZS10-S is a grey 8 mm screw clamp blade disconnect terminal block rated at 25 A and 630 V IEC for reliable circuit isolation in industrial DIN rail control panels.
£4.83
The TE Connectivity 1SNK508315R0000 ZS10-S is a robust screw clamp disconnect terminal block designed for convenient circuit isolation, testing and maintenance in industrial electrical installations. As part of the TE Connectivity ENTRELEC SNK series, it combines dependable screw clamp conductor termination with an integrated blade disconnect mechanism for control panels, switchgear, machinery and automation systems.
The ZS10-S features a blade disconnect operated by hand or with a screwdriver, allowing the electrical circuit to be opened without removing the connected conductors. Its profile is aligned with the ZS10 feed-through terminal block, helping engineers maintain consistent marking and use identical end-section accessories across mixed terminal assemblies.
With a compact 8 mm terminal spacing, two connection positions and an IEC rating of 25 A at 630 V, the ZS10-S provides reliable circuit isolation while supporting conductors up to 10 mm² / 6 AWG. Its grey polyamide housing, IP20 protection and wide -55–110 °C operating temperature range make it suitable for demanding industrial environments.
Disconnect terminal blocks provide a practical method of opening an electrical circuit directly at the terminal point without removing permanently connected conductors. This makes circuit testing, commissioning, fault finding and maintenance more efficient while preserving an organised and secure DIN rail wiring installation.
The ZS10-S combines a convenient blade disconnect with high-capacity screw clamp connections. The disconnect blade can be operated manually or with a screwdriver, while its profile alignment with the ZS10 feed-through terminal enables consistent marking and common end-section use across mixed terminal block assemblies.
| Manufacturer | TE Connectivity |
|---|---|
| Brand / product family | ENTRELEC |
| Series | SNK |
| Model | ZS10-S |
| Manufacturer part number | 1SNK508315R0000 |
| Product type | Screw clamp disconnect terminal block |
| Block function | Disconnect |
| Disconnect type | Blade |
| Connection type | Screw clamp |
| Number of positions | 2 |
| Number of circuits | 1 |
| Number of levels | 1 |
| Gauge type | A5-B5 |
| Product spacing | 8 mm |
| Primary colour | Grey |
| Housing material | Polyamide |
| IEC rated current | 25 A |
| IEC rated voltage | 630 V |
| UL rated current | 25 A |
| CSA rated voltage | 300 V |
| UL / CSA maximum operating voltage | 300 V |
| Short-time withstand current | 480 A for 1 s |
| Maximum dielectric withstand voltage | 1890 V |
| IEC impulse withstand voltage | 6000 V |
| Power loss | 1.8 W |
| Flexible conductor capacity | 0.22–10 mm² / 24–10 AWG |
| Rigid stranded conductor capacity | 0.2–10 mm² / 24–6 AWG |
| Insulated ferrule capacity | 0.22–6 mm² / 24–12 AWG |
| Non-insulated ferrule capacity | 0.22–10 mm² / 24–12 AWG |
| Twin ferrule capacity | 0.5–4 mm² / 20–12 AWG |
| Two flexible conductors per screw clamp | 0.5–4 mm² / 20–12 AWG |
| Two rigid stranded conductors per screw clamp | 0.5–4 mm² / 20–12 AWG |
| Wire stripping length | 12 mm |
| Tool size | 4 mm |
| Protection rating | IP20 |
| UL flammability rating | UL 94V-0 |
| DIN rail mounting | TH35-7.5 / TH35-15 |
| Installation temperature | -5–40 °C |
| Operating temperature | -55–110 °C |
| Height | 53 mm |
| Width / spacing | 8 mm |
| Depth | 51.4 mm |
| Length | 51.35 mm |
| Weight | 8.6 g |
| Pack quantity | 50 |
The ZS10-S is a screw clamp disconnect terminal block designed to connect and conveniently isolate electrical circuits for testing, commissioning, maintenance and industrial control applications.
The terminal incorporates a blade disconnect mechanism that can be operated by hand or with a screwdriver, allowing the circuit to be opened without removing the connected conductors.
The TE Connectivity 1SNK508315R0000 has an IEC rating of 25 A at 630 V, with a short-time withstand current of 480 A for 1 s.
The ZS10-S accepts flexible conductors up to 10 mm² and rigid stranded conductors up to 10 mm² / 6 AWG, providing capacity for a wide range of industrial wiring applications.
The 1SNK508315R0000 is designed for DIN rail mounting and is compatible with standard TH35-7.5 and TH35-15 rail profiles.
TE Connectivity ENTRELEC SNK terminal blocks are designed for dependable industrial wiring, with the ZS10-S combining high-capacity screw clamp connections and an accessible blade disconnect mechanism for efficient circuit isolation, testing and maintenance.
