Why Choose the TE Connectivity ZK4-PE-4P 1SNK706152R0000 PI-Spring Earth Terminal?

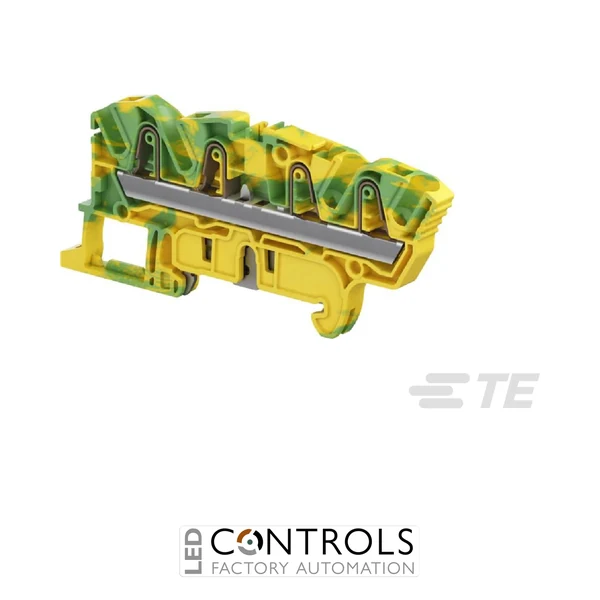

The TE Connectivity ZK4-PE-4P 1SNK706152R0000 is a compact 4 mm² four-position PI-Spring protective earth terminal block designed for reliable grounding connections in industrial control panels, machinery and automation systems. Part of the TE Connectivity ENTRELEC SNK series, it combines spring-terminal connection technology with a multi-position design for efficient protective earth wiring.
The ZK4-PE-4P provides four conductor connection positions on a single ground circuit, making it particularly useful where several protective earth conductors need to be connected within one compact DIN rail assembly. Its green and yellow polyamide housing provides immediate identification as a protective earth terminal, while the slim 6 mm spacing supports high-density panel construction.
With a rated wire size of 4 mm², the ZK4-PE-4P accepts flexible conductors from 0.5–4 mm² and rigid stranded conductors from 0.5–6 mm². It also provides a short-time withstand current rating of 480 A for 1 s, while compatibility with TH35 DIN rails enables straightforward integration into industrial electrical cabinets and equipment.
Key Advantages
- Purpose-designed four-position protective earth terminal for industrial grounding circuits.
- PI-Spring connection technology provides fast and reliable conductor termination.
- Four connection positions simplify the termination and distribution of multiple protective earth conductors.
- 4 mm² rated wire size with support for rigid stranded conductors up to 6 mm².
- Compact 6 mm terminal spacing helps maximise wiring density on the DIN rail.
- Green and yellow housing provides clear and recognisable protective earth identification.
Key Features
- TE Connectivity ENTRELEC SNK series.
- 4 mm² rated wire size.
- Protective earth / ground terminal configuration.
- Four-position, single-circuit design.
- Single-level terminal construction.
- PI-Spring / spring terminal connection technology.
- 480 A short-time withstand current at 1 s.
- 8000 V IEC impulse withstand voltage.
- 2200 V maximum dielectric withstand voltage.
- Compatible with TH35-7.5 and TH35-15 DIN rails.
- Green and yellow polyamide housing with UL 94V-0 flammability rating.
- IP20 protection rating.
Compact Four-Position Protective Earthing with PI-Spring Technology
Protective earth terminal blocks such as the TE Connectivity ZK4-PE-4P provide a dedicated grounding connection within DIN rail-mounted electrical assemblies. The green and yellow housing clearly identifies its protective earth function, while the four-position configuration enables several earth conductors to be terminated within a single compact terminal block.
PI-Spring technology provides consistent spring pressure on connected conductors while simplifying installation compared with conventional screw-clamp wiring. Combined with its 6 mm width and four connection positions, the ZK4-PE-4P is particularly suited to control panels where dependable grounding, efficient installation and high terminal density are important.
Typical Applications
- Industrial control panels and electrical cabinets.
- Protective earth and grounding circuits.
- PLC and industrial automation systems.
- Industrial machinery and production equipment.
- Power distribution and switchgear assemblies.
- Motor control centres and machine control systems.
- Multi-conductor protective earth distribution.
- OEM equipment and industrial panel building.
