Why Choose the TE Connectivity ZK10 PI-Spring Terminal Block?

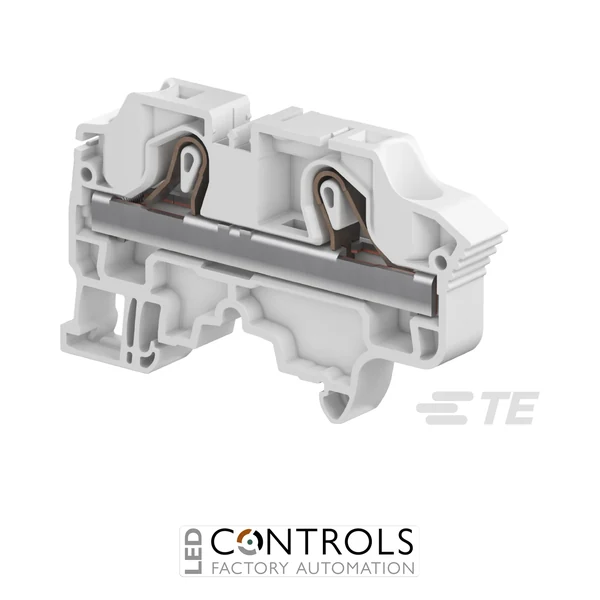

The TE Connectivity ZK10 (1SNK710010R0000) is a high-performance grey PI-Spring feed-through terminal block designed for reliable power and signal connections in industrial control panels, machinery and electrical distribution systems. Part of the TE Connectivity ENTRELEC SNK Series, it combines spring-terminal connection technology with a compact DIN rail mounting format for efficient panel wiring.
The ZK10 provides a single-level, single-circuit feed-through connection with two positions and a 10 mm pitch. Its PI-Spring connection system supports fast, secure conductor termination while eliminating the routine tightening associated with conventional screw-clamp connections, making it particularly suitable for high-density industrial panel building and automation applications.
With an IEC voltage rating of 1000 V and an IEC current rating of 57 A, the ZK10 provides substantial electrical performance in a compact terminal format. It accepts flexible conductors from 0.5–10 mm² and rigid stranded conductors up to 16 mm², while its polyamide housing and wide -55 to 110 °C operating temperature range provide dependable service in demanding industrial environments.
Key Advantages
- High-performance PI-Spring feed-through terminal block for power and signal circuits.
- 57 A IEC current rating for demanding industrial connections.
- 1000 V IEC voltage rating provides excellent electrical capability.
- 10 mm pitch combines substantial conductor capacity with efficient panel utilisation.
- Spring-terminal technology enables fast and reliable conductor termination.
- Supports rigid stranded conductors up to 16 mm².
- DIN rail mounting simplifies integration into industrial control cabinets.
- Durable polyamide housing with UL 94V-0 flammability rating.
Key Features
- TE Connectivity ENTRELEC SNK ZK Series.
- PI-Spring terminal block connection technology.
- Feed-through block function.
- 2 positions, 1 circuit and 1 level.
- 10 mm product spacing.
- 57 A IEC current rating.
- 1000 V IEC voltage rating.
- 55 A UL and CSA current rating.
- 600 V UL/CSA voltage rating.
- 0.5–10 mm² flexible conductor capacity.
- Rigid stranded conductor capacity up to 16 mm².
- 15 mm wire stripping length.
- Compatible with TH35-7.5 and TH35-15 DIN rails.
- IP20 protection rating.
Reliable PI-Spring Connectivity for Industrial Panels
PI-Spring terminal technology provides a secure spring-force connection between conductors and the terminal's current bar. The spring maintains consistent contact pressure during normal operation, helping provide reliable electrical continuity while supporting efficient wiring and maintenance in industrial control systems.
The ZK10 is designed for DIN rail assemblies requiring relatively high current and conductor capacity without sacrificing installation efficiency. Its front-accessible connection arrangement, robust polyamide housing and broad electrical ratings make it suitable for both power distribution and signal wiring within machinery and automation equipment.
Typical Applications
- Industrial electrical control panels.
- Machine building and factory automation.
- Power and signal distribution circuits.
- Motor control centres and switchgear.
- Process control and instrumentation systems.
- Building automation and electrical distribution equipment.
- OEM machinery and production equipment.
