Why Choose the TE Connectivity ZK10-PE PI-Spring Earth Terminal?

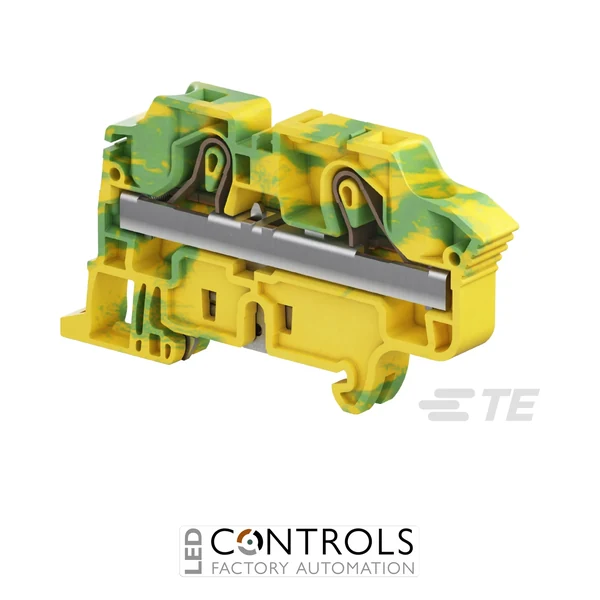

The TE Connectivity ZK10-PE, part number 1SNK710150R0000, is a high-performance PI-Spring protective earth terminal block designed for reliable grounding connections in industrial control panels, machinery and electrical distribution systems. Part of the TE Connectivity ENTRELEC SNK Series, it combines screwless spring termination with a robust DIN rail earth connection.
The ZK10-PE uses PI-Spring technology to provide fast and dependable conductor termination while its dedicated ground function connects the protective earth circuit directly to the mounting rail. The screwless rail contact is designed to provide a secure connection independently of operator tightening, while the green and yellow housing clearly identifies the terminal as a protective earth connection.
Designed around a 10 mm² rated cross-section, the ZK10-PE accepts flexible conductors from 0.5–10 mm² and rigid stranded conductors from 0.5–16 mm². Its 10 mm spacing, 1200 A short-time withstand current for 1 s and compatibility with TH35 DIN rails make it a dependable grounding solution for demanding industrial power and signal installations.
Key Advantages
- Dedicated protective earth terminal for industrial grounding applications.
- PI-Spring connection technology provides fast and reliable screwless conductor termination.
- 10 mm² rated cross-section for higher-capacity industrial wiring.
- Accepts rigid stranded conductors up to 16 mm².
- 1200 A short-time withstand current for 1 s.
- Screwless rail contact helps provide a secure, operator-independent earth connection.
- Green and yellow housing provides immediate protective earth identification.
Key Features
- TE Connectivity ENTRELEC SNK Series.
- PI-Spring ground terminal block.
- 2 positions and 1 electrical circuit.
- Single-level terminal configuration.
- 10 mm product spacing.
- 10 mm² rated cross-section.
- 8 kV IEC impulse withstand voltage.
- 2.2 kV maximum dielectric withstand voltage.
- Flexible conductor capacity from 0.5–10 mm².
- Rigid stranded conductor capacity from 0.5–16 mm².
- Compatible with TH35-7.5 and TH35-15 DIN rails.
- Polyamide housing with UL 94V-0 flammability rating.
- IP20 protection rating.
- Operating temperature range from -55 to 110 °C.
Reliable Protective Earth Connections with PI-Spring Technology
Protective earth terminal blocks provide an essential low-impedance connection between equipment conductors and the grounding system. The ZK10-PE uses a screwless rail contact designed to provide dependable grounding without relying on operator-applied tightening torque, helping improve installation consistency and electrical safety.
PI-Spring technology combines Push-In and spring connection principles for efficient industrial wiring. Solid conductors and suitably prepared conductors can be inserted rapidly, while spring-mode operation supports stranded conductors, making the ZK10-PE a versatile protective earth solution for panel builders, machine manufacturers and automation engineers.
Typical Applications
- Protective earth connections in industrial control panels.
- Machine building and OEM equipment.
- Factory automation systems.
- Motor control centres and electrical cabinets.
- Industrial power and signal distribution assemblies.
- Higher-capacity DIN rail grounding circuits.
