Why Choose the TE Connectivity ZDK2.5-22 PI-Spring Pluggable Terminal Block?

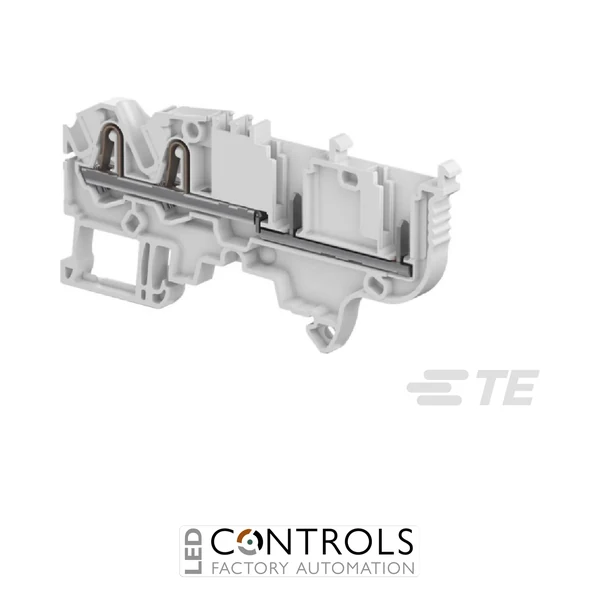

The TE Connectivity ZDK2.5-22 (1SNK805010R0000) is a grey PI-Spring feed-through and pluggable terminal block designed for fast, reliable connections in industrial control panels, machinery and automation systems. Part of the ENTRELEC SNK Series, it combines spring connection technology with a pluggable architecture that simplifies the connection and disconnection of electrical sub-assemblies.
The ZDK2.5-22 is specifically designed to increase wiring productivity by supporting pre-produced plug harnesses and plug-and-play assembly. This approach can reduce panel preparation and final installation time, simplify transportation of separately wired assemblies and make it easier to connect modular machine sections while reducing the risk of incorrect field connections.
Designed for 2.5 mm² applications, the ZDK2.5-22 provides four connection positions within a compact 5.2 mm spacing. It is rated at 24 A and 1000 V IEC, accepts rigid stranded conductors up to 4 mm² and flexible conductors up to 2.5 mm², making it a versatile pluggable connection solution for power and signal wiring.
Key Advantages
- Feed-through and pluggable design simplifies modular panel and machine wiring.
- PI-Spring connection technology provides fast and reliable spring-force conductor termination.
- Supports pre-produced plug harnesses for efficient panel manufacturing and assembly.
- Four connection positions provide flexible wiring within a compact terminal format.
- 24 A IEC current rating and 1000 V IEC voltage rating support demanding industrial circuits.
- Compact 5.2 mm spacing helps maximise available DIN rail space.
- Pluggable construction makes it easier to connect, disconnect and test modular equipment assemblies.
Key Features
- TE Connectivity ENTRELEC SNK Series.
- ZDK2.5-22 PI-Spring terminal block.
- Feed-through and pluggable block function.
- Four connection positions.
- Single circuit, single-level configuration.
- 2.5 mm² nominal conductor size.
- 5.2 mm product spacing.
- 24 A IEC rated current.
- 1000 V IEC rated voltage.
- 22 A UL / CSA current rating.
- 600 V UL / CSA operating voltage.
- Rigid stranded conductor capacity up to 4 mm².
- Flexible conductor and ferrule capacity up to 2.5 mm².
- Grey polyamide housing with UL 94V-0 flammability rating.
- IP20 protection rating.
Reliable Pluggable Connections for Modular Industrial Systems
Pluggable terminal blocks are particularly valuable in modular machines and control systems because separately manufactured or pre-wired assemblies can be connected quickly during final installation. The ZDK2.5-22 supports pre-produced plug harnesses, helping reduce field wiring work while making pre-installation testing and connection verification easier.
TE Connectivity's PI-Spring technology provides dependable spring-force conductor contact, while the pluggable interface makes equipment sections easier to connect and disconnect during assembly, commissioning and servicing. The combination of 24 A IEC current capacity, 1000 V IEC voltage rating and compact DIN rail installation makes the ZDK2.5-22 well suited to modern industrial automation and machine-building applications.
Typical Applications
- Industrial control panels and automation cabinets.
- Modular machinery and OEM equipment.
- Pre-wired electrical sub-assemblies.
- Power and signal distribution circuits.
- PLC and process control systems.
- Machine sections requiring rapid plug-and-play connection.
- Production equipment requiring simplified commissioning and servicing.
