Why Choose the TE Connectivity CDS4-E Female Plug?

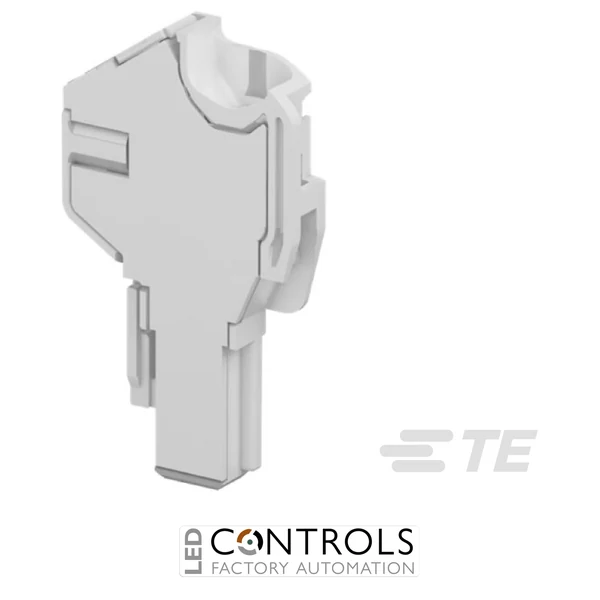

The TE Connectivity CDS4-E (1SNK805715R0000) is a compact female plug terminal block with closed screw-clamp connection designed for pluggable wiring within industrial control panels, automation equipment and electrical distribution systems. Part of the ENTRELEC SNK Series, this grey single-pole female plug provides a convenient modular connection solution for compatible SNK terminal block assemblies.
The CDS4-E uses a proven screw-clamp connection and has a rated cross-section of 4 mm². Individual plugs can be combined to create multi-pole plug assemblies, allowing panel builders to configure connections to suit individual applications without maintaining numerous pre-configured plug variants.
With an IEC current rating of 29 A and an IEC voltage rating of 800 V, the CDS4-E delivers dependable electrical performance in a compact 5.2 mm pitch. Its polyamide housing, IP20 protection and wide -55 to 110 °C operating temperature range make it well suited to demanding industrial wiring applications.
Key Advantages
- Compact female plug terminal block for modular industrial wiring.
- Closed screw-clamp connection provides secure conductor termination.
- 4 mm² rated cross-section for power and control connections.
- 29 A IEC current rating and 800 V IEC voltage rating.
- Compact 5.2 mm pitch supports space-efficient terminal assemblies.
- Individual plugs can be combined into customised multi-pole assemblies.
- Durable polyamide housing with UL 94V-0 flammability rating.
- Designed for integration with compatible ENTRELEC SNK Series terminal systems.
Key Features
- TE Connectivity ENTRELEC SNK Series.
- CDS4-E female plug.
- Single-pole modular design.
- 2 connection positions.
- Screw-clamp termination.
- 4 mm² rated cross-section.
- 5.2 mm product spacing.
- 29 A IEC current rating.
- 800 V IEC voltage rating.
- 28 A UL and CSA current rating.
- 300 V UL/CSA operating voltage rating.
- Grey polyamide insulating housing.
- IP20 ingress protection.
Flexible Pluggable Connectivity for Industrial Panels
Pluggable terminal systems simplify equipment installation and maintenance by allowing wiring connections to be disconnected and reconnected without disturbing the fixed terminal assembly. This can reduce service time and provides a practical modular interface between field wiring, control equipment and replaceable machine components.
The CDS4-E is designed so individual female plugs can be snapped together into multi-pole assemblies without specialised tooling. Combined with its screw-clamp conductor termination and compact 5.2 mm pitch, this modular arrangement gives panel builders flexibility when configuring industrial control and automation wiring.
Typical Applications
- Industrial electrical control panels.
- Pluggable SNK Series terminal block assemblies.
- Machine building and factory automation.
- Power and control wiring.
- Process control and instrumentation equipment.
- Electrical distribution and switchgear systems.
- OEM machinery and modular electrical equipment.
