Why Choose the TE Connectivity ZDS4-22-R1 Pluggable Screw Terminal Block?

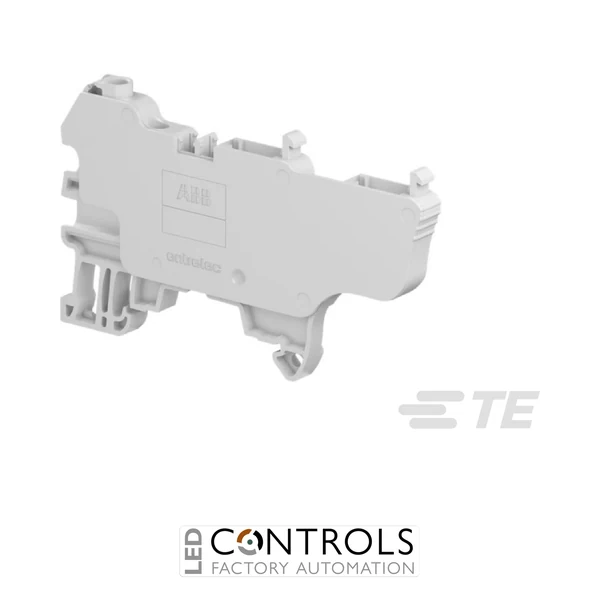

The TE Connectivity ZDS4-22-R1, part number 1SNK806013R0000, is a compact 4-position pluggable screw-clamp terminal block designed for reliable feed-through connections in industrial control panels, machinery and automation systems. Part of the TE Connectivity ENTRELEC SNK Series, it combines conventional screw-clamp termination with a pluggable connection architecture for convenient installation and maintenance.
The ZDS4-22-R1 provides four connection positions arranged as a single-level, single-circuit terminal. Its pluggable design can simplify equipment assembly, commissioning and servicing by allowing compatible connections to be separated without disturbing the permanent DIN rail wiring, while screw-clamp technology provides a familiar and secure method of terminating industrial conductors.
With an IEC rated voltage of 800 V, an IEC rated current of 29 A and conductor capacity up to 4 mm², the ZDS4-22-R1 provides strong electrical performance in a compact format. Its 6 mm spacing, grey polyamide housing and compatibility with standard TH35 DIN rails make it well suited to modular control and distribution assemblies.
Key Advantages
- Combines feed-through and pluggable terminal functionality for flexible industrial wiring.
- Screw-clamp connection technology provides secure and familiar conductor termination.
- Four connection positions within a single-level terminal design.
- 800 V IEC voltage rating for demanding electrical applications.
- 29 A IEC current rating for power and control circuits.
- Accepts conductors and ferrules up to 4 mm².
- Compact 6 mm spacing helps maximise DIN rail installation density.
Key Features
- TE Connectivity ENTRELEC SNK Series.
- ZDS4-22-R1 pluggable terminal configuration.
- Screw-clamp terminal technology.
- Feed-through and pluggable block function.
- 4 positions, 1 circuit and 1 level.
- 800 V IEC rated voltage.
- 29 A IEC rated current.
- 8 kV IEC impulse withstand voltage.
- 480 A short-time withstand current for 1 s.
- 6 mm product spacing.
- Flexible conductor capacity from 0.22–4 mm².
- Rigid stranded conductor capacity from 0.2–4 mm².
- Compatible with TH35-7.5 and TH35-15 DIN rails.
- Grey polyamide housing with UL 94V-0 flammability rating.
- IP20 protection rating.
Reliable Pluggable Connections with Screw-Clamp Technology
Pluggable terminal blocks provide a modular interface between permanent panel wiring and removable equipment connections. The ZDS4-22-R1 combines this flexibility with conventional screw-clamp termination, providing dependable conductor retention while allowing compatible pluggable connections to simplify installation, testing and servicing.
The ENTRELEC SNK Series is designed for efficient DIN rail panel construction with compact dimensions and robust industrial performance. With four connection positions, high IEC electrical ratings and broad conductor compatibility, the ZDS4-22-R1 is particularly suitable for machine builders, panel builders and automation engineers requiring modular and service-friendly electrical connections.
Typical Applications
- Industrial electrical control panels.
- Pluggable power and control connections.
- Machine building and OEM equipment.
- Factory automation systems.
- PLC and instrumentation wiring.
- Power and signal distribution assemblies.
- DIN rail installations requiring removable connections.
