1snk900200r0000 - tc5 [pk=10] test connector

1snk900200r0000 – tc5 [pk=10] test connector

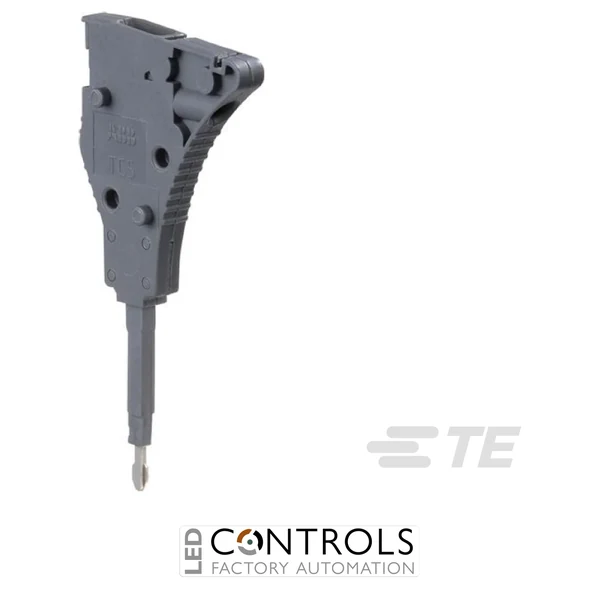

TE Connectivity TC5 1SNK900200R0000 is a dark grey single-pole 5.2 mm modular test connector rated at 16 A and 1000 V IEC for convenient testing and measurement access within compatible ENTRELEC SNK Series terminal block assemblies.

SKU: 1SNK900200R0000Alt SKU: TC5 [pk=10] Test ConnectorMPN: 1SNK900200R0000
Price
List Price £5.95 ex VAT
Your Price (ex VAT)
£5.95
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £5.95
Trade pricing is personalised to your account

Manufacturer Lead Time

£5.95

Why Choose the TE Connectivity TC5 Test Connector?

The TE Connectivity TC5 (1SNK900200R0000) is a dark grey single-pole modular test connector designed for testing and measurement access within compatible ENTRELEC SNK Series terminal block assemblies. Its plug-in design provides a convenient interface for connecting test equipment to electrical circuits during commissioning, diagnostics, troubleshooting and maintenance.

Designed for terminal blocks with 5.2 mm spacing, the TC5 provides a direct plug-in solution for compatible jumper channels and allows individual modules to be combined into customised test connector assemblies. The distinctive dark grey housing helps identify the testing accessory within densely populated industrial terminal installations.

The TC5 is rated at 16 A and 1000 V IEC, with an 8000 V impulse withstand rating and maximum dielectric withstand voltage of 2200 V. Its durable polyamide construction, IP20 protection and operating temperature range of -55 to 110 °C make it suitable for demanding industrial control and automation environments.

Key Advantages

  • Purpose-designed modular test connector for ENTRELEC SNK Series terminal blocks.
  • Direct plug-in connection provides convenient circuit testing access.
  • 16 A IEC current rating for industrial testing applications.
  • 1000 V IEC voltage rating provides robust electrical capability.
  • Compact 5.2 mm spacing matches compatible terminal block assemblies.
  • Individual modules can be combined to create customised test connector assemblies.
  • Dark grey colour provides easy visual identification.
  • Durable polyamide construction suitable for industrial environments.

Key Features

  • TE Connectivity ENTRELEC SNK Series.
  • TC5 modular test connector.
  • Single-pole configuration.
  • Plug-in retention design.
  • 5.2 mm product spacing.
  • 16 A IEC current rating.
  • 1000 V IEC voltage rating.
  • 8000 V IEC impulse withstand voltage.
  • 180 A short-time withstand current for 1 s.
  • Conductor capacity up to 1.5 mm² for a single conductor.
  • 0.5 Nm tightening torque.
  • Dark grey polyamide housing.
  • IP20 protection rating.
  • Supplied in a pack of 10.

Convenient Testing Access for Industrial Terminal Assemblies

Test connectors provide temporary electrical access to circuits without requiring permanent changes to the installed wiring. This makes them useful during commissioning, routine measurements, fault finding and maintenance where technicians need a reliable interface between terminal circuits and electrical test equipment.

The TC5 provides a direct plug-in solution for compatible SNK Series jumper channels and is designed for more than 10,000 operating cycles. Its modular construction allows users to build test connector arrangements suited to the number and layout of circuits being measured, providing flexibility for professional panel building and maintenance applications.

Typical Applications

  • Industrial electrical control panels.
  • Terminal block circuit testing and measurement.
  • Machine commissioning and diagnostics.
  • Factory automation systems.
  • Process control and instrumentation equipment.
  • Electrical maintenance and troubleshooting.
  • Switchgear and distribution cabinets.
  • OEM machinery and panel building.

Technical Specifications

Tick the specs you need, then view products that match.

Number of Connection Points 22
Connection Screw clamp
Terminal Type Disconnect / Test
Product Series TE SNK
Colour Grey
Manufacturer TE Connectivity / ENTRELEC
Series ENTRELEC SNK Series
Model TC5
Part number 1SNK900200R0000
Product type Test connector / conducting terminal block accessory
Accessory type Modular test connector
Number of poles 1
Gauge type A1-B1
Retention type Plug-in
Product spacing 5.2 mm
IEC rated voltage 1000 V
IEC rated current 16 A
CSA rated current 12 A
Maximum contact current rating 16 A
IEC impulse withstand voltage 8000 V
Maximum dielectric withstand voltage 2200 V
Short-time withstand current at 1 s 180 A
Single rigid stranded conductor capacity 0.2–1.5 mm²
Single flexible conductor capacity 0.22–1.5 mm²
Single insulated ferrule capacity 0.22–1.5 mm²
Two rigid stranded conductor capacity 0.2–0.75 mm²
Two flexible conductor capacity 0.22–0.75 mm²
Twin ferrule capacity 0.22–0.75 mm²
Tightening torque 0.5 Nm
Tool size 2.5 mm
Colour Dark grey
Material Polyamide
Product height 34.1 mm
Product width 5.2 mm
Product depth 71.65 mm
Product weight 5.2 g
Operating temperature range -55 to 110 °C
Installation temperature range -5 to 40 °C
Protection rating IP20
Pack quantity 10

Frequently Asked Questions

What is the TE Connectivity TC5 used for?

The TC5 is a modular test connector used to provide convenient electrical testing and measurement access within compatible ENTRELEC SNK Series terminal block assemblies.

What are the electrical ratings of the TC5?

The TC5 has an IEC current rating of 16 A and an IEC voltage rating of 1000 V.

What terminal spacing is the TC5 designed for?

The TC5 is designed for compatible terminal block assemblies with 5.2 mm spacing.

How does the TC5 connect to the terminal assembly?

The TC5 uses a plug-in connection and provides direct access through compatible SNK Series jumper channels, allowing convenient temporary connection of test equipment.

How many TC5 test connectors are supplied in this pack?

The 1SNK900200R0000 TC5 test connector is supplied in a pack of 10.

Trusted Industrial Terminal Connectivity

TE Connectivity ENTRELEC SNK Series terminal blocks and testing accessories provide flexible, reliable electrical connectivity and convenient circuit access for industrial automation, machine building, commissioning and professional control-panel applications.
