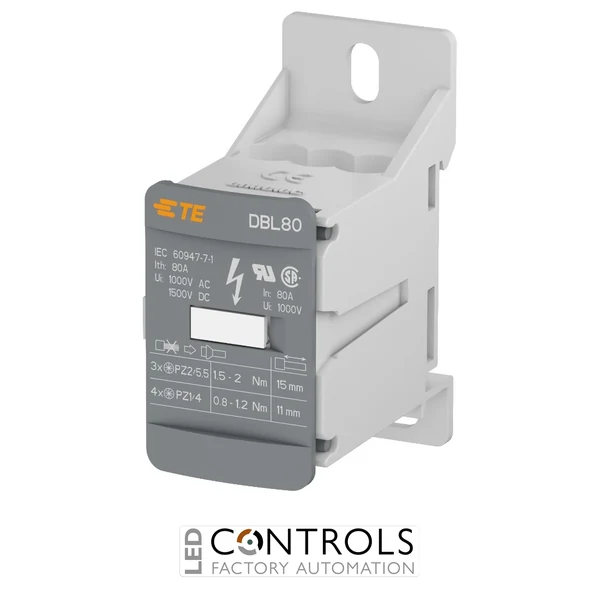

Why Choose the TE Connectivity 1SNL308010R0000 DBL80 Distribution Block?
The TE Connectivity 1SNL308010R0000, also identified as DBL80, is a compact single-pole power distribution block designed for efficient distribution of electrical power within industrial control panels, machinery and electrical cabinets. Part of the TE Connectivity ENTRELEC DBL series, it uses screw-clamp connection technology to provide secure and dependable conductor termination.
The DBL80 combines one pole with seven connection positions, enabling an incoming power connection to be distributed across multiple outgoing conductors from a compact DIN rail-mounted device. This arrangement can reduce the number of separate terminal blocks and interconnecting conductors required, helping panel builders achieve cleaner wiring layouts and more efficient use of cabinet space.
Rated at 80 A under both IEC and UL specifications, the 1SNL308010R0000 supports operating voltages up to 1000 V AC and 1500 V DC under IEC specifications. Its grey polyamide housing, DIN rail mounting and wide -55 to 110 °C operating temperature range make it suitable for demanding industrial power distribution applications.
Key Advantages
- Compact single-pole power distribution block for industrial panel wiring.
- Seven connection positions provide efficient distribution from a common power circuit.
- 80 A IEC and UL current rating for industrial power applications.
- Rated up to 1000 V AC and 1500 V DC under IEC specifications.
- Screw-clamp termination provides secure conductor connections.
- DIN rail mounting simplifies integration into electrical control cabinets.
Key Features
- TE Connectivity ENTRELEC DBL series.
- DBL80 power distribution block.
- Single-pole configuration.
- Seven positions for power distribution.
- 80 A IEC current rating.
- 80 A UL current rating.
- 1000 V AC IEC voltage rating.
- 1500 V DC IEC voltage rating.
- 100 kA short-circuit current rating.
- Grey polyamide housing with DIN rail mounting.
Compact and Reliable Power Distribution
Power distribution blocks provide a convenient method of splitting an incoming electrical supply into multiple outgoing circuits from a central connection point. This can simplify wiring, reduce the number of individual terminal connections and help create more organised electrical control panels.
The DBL80 uses screw-clamp technology for both incoming and outgoing conductors and is designed for direct installation on standard 35 mm DIN rail. Its seven-position, single-pole configuration makes it particularly useful where an 80 A supply needs to be distributed to several circuits within machinery, switchgear or automation equipment.
Typical Applications
- Industrial electrical control panels.
- Power distribution and branch circuits.
- Machine building and automation systems.
- Switchgear and distribution cabinets.
- DIN rail electrical assemblies.
- OEM equipment and panel building.
