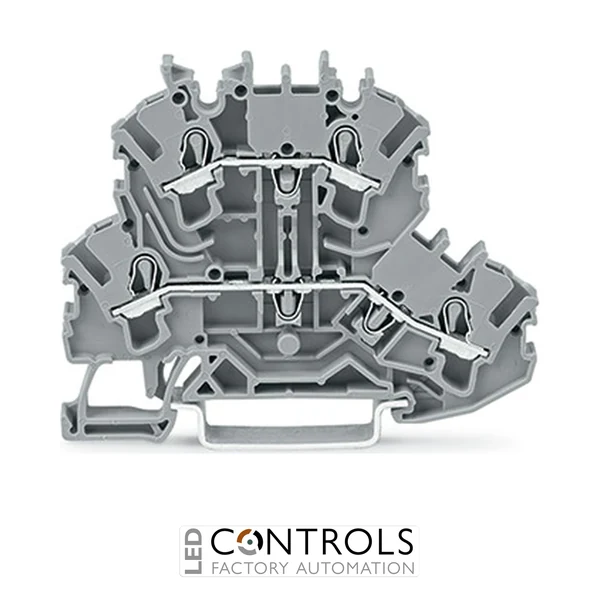

Why Choose the WAGO 2002-2201 TOPJOB S Double-Deck Terminal Block?
The WAGO 2002-2201 is a compact double-deck through/through terminal block designed to provide two independent electrical potentials within a single DIN rail-mounted housing. Part of the WAGO TOPJOB S 2002 Series, its stacked L/L configuration helps panel builders increase wiring density while maintaining clear, organised conductor connections in industrial control cabinets.
The 2002-2201 uses WAGO's proven Push-in CAGE CLAMP® connection technology, allowing solid conductors and fine-stranded conductors with ferrules to be pushed directly into the terminal without tools. Other conductor types can also be connected using the spring-clamp operating mechanism, providing a versatile connection system for industrial panel wiring.
With a nominal cross-section of 2.5 mm², a rated current of 24 A and a rated voltage of 500 V, the WAGO 2002-2201 combines dependable electrical performance with a space-saving 5.2 mm width. Four connection points and two independent potentials make it particularly suitable for high-density signal, control and power distribution applications.
Key Advantages
- Double-deck design provides two independent potentials within one compact terminal housing.
- 5.2 mm width supports high-density wiring and efficient use of DIN rail space.
- Push-in CAGE CLAMP® technology enables fast direct insertion of suitable conductors.
- Supports conductor cross-sections from 0.25–4 mm², depending on conductor type.
- 24 A rated current provides reliable performance for industrial control and distribution circuits.
- Suitable for standard 35 × 7.5 mm and 35 × 15 mm DIN rails.
Key Features
- WAGO TOPJOB S 2002 Series.
- Double-deck through/through terminal block.
- L/L configuration.
- Push-in CAGE CLAMP® connection technology.
- 2.5 mm² nominal cross-section.
- Four connection points.
- Two independent potentials.
- 24 A rated current.
- 500 V rated voltage.
- Grey polyamide insulated housing for professional industrial installations.
Space-Efficient Double-Deck Wiring for Control Panels
Double-deck terminal blocks increase wiring density by providing two connection levels within approximately the same DIN rail footprint normally occupied by a single terminal position. This allows panel builders to accommodate more circuits in limited enclosure space while maintaining structured and accessible wiring.
The WAGO 2002-2201 combines this space-saving arrangement with Push-in CAGE CLAMP® technology and two independent through potentials. Its four connection points, broad conductor compatibility and compact 5.2 mm width make it particularly useful for PLC interfaces, signal wiring, machinery and other high-density industrial control applications.
Typical Applications
- Industrial control panels and electrical cabinets.
- PLC input, output and signal wiring.
- High-density DIN rail terminal assemblies.
- Machine building and factory automation systems.
- Process control and instrumentation wiring.
- Industrial power and control circuit distribution.
