Why Choose the WAGO 2002-2611 Double-Deck Fuse Terminal Block?

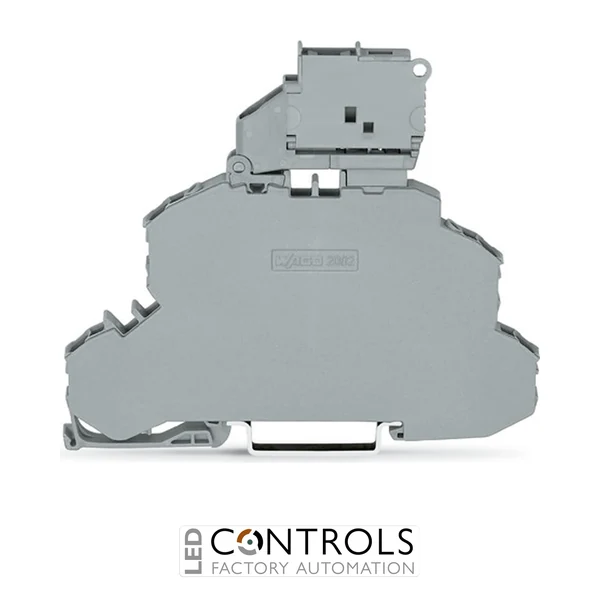

The WAGO 2002-2611 is a TOPJOB® S double-deck through/fuse terminal block with a pivoting fuse holder, designed to combine standard feed-through connection and fused circuit protection within a compact DIN rail-mounted format. Its double-level construction is ideal for control panels where high wiring density and straightforward fuse access are important.
The upper fuse level accommodates a standard 5 × 20 mm miniature metric fuse, while the terminal uses WAGO's proven Push-in CAGE CLAMP® connection technology for fast, vibration-resistant conductor termination. Suitable solid and ferruled conductors can be pushed directly into the connection point, reducing wiring time during panel assembly and maintenance.
The standard 2002-2611 version is supplied without blown-fuse indication and provides a rated current of 6.3 A and nominal voltage of 250 V according to IEC/EN 60947-7-3. With a width of only 6.2 mm, four connection points and two potentials, it provides fused and through connectivity while making efficient use of DIN rail space.
Key Advantages
- Combines a through terminal and fuse terminal in one double-deck housing.
- Pivoting fuse holder provides convenient access to the installed fuse.
- Designed for standard 5 × 20 mm miniature metric fuses.
- Push-in CAGE CLAMP® technology supports fast, secure and maintenance-friendly wiring.
- Compact 6.2 mm width helps maximise wiring density on the DIN rail.
- Provides 4 connection points and 2 potentials in a double-level design.
- Mounts on standard 35 × 7.5 mm and 35 × 15 mm DIN rails.
- Rated for 6.3 A with electrical ratings determined in conjunction with the installed fuse.
Key Features
- WAGO TOPJOB® S 2002 Series.
- Double-deck through/fuse terminal block.
- Pivoting fuse holder.
- Fuse format: 5 × 20 mm.
- Without blown-fuse indication.
- Circuit arrangement: L/L.
- Push-in CAGE CLAMP® connection.
- Rated cross-section: 2.5 mm².
- 4 connection points.
- 2 potentials.
- Grey polyamide housing.
- Suitable for standard 35 mm DIN rail systems.
Space-Saving Fused Circuit Protection with Push-In Wiring
Double-deck fuse terminal blocks allow panel builders to combine two circuit functions within the footprint normally occupied by a single-width terminal position. The WAGO 2002-2611 combines a through level with a fused level, helping increase wiring density while keeping the fuse accessible for inspection, isolation and replacement.
WAGO's Push-in CAGE CLAMP® connection technology further simplifies panel wiring by allowing suitable prepared conductors to be inserted directly without manually opening the clamping unit. Combined with the pivoting 5 × 20 mm fuse holder, this makes the 2002-2611 particularly suitable for control and auxiliary circuits that require compact installation, reliable connections and accessible fuse protection.
Typical Applications
- Industrial control and automation panels.
- PLC input and output circuit protection.
- Machine control cabinets.
- Power supply and auxiliary circuit distribution.
- Instrumentation and process control systems.
- Switchgear and electrical distribution panels.
- High-density DIN rail wiring assemblies.
- OEM machinery and electrical panel building.
