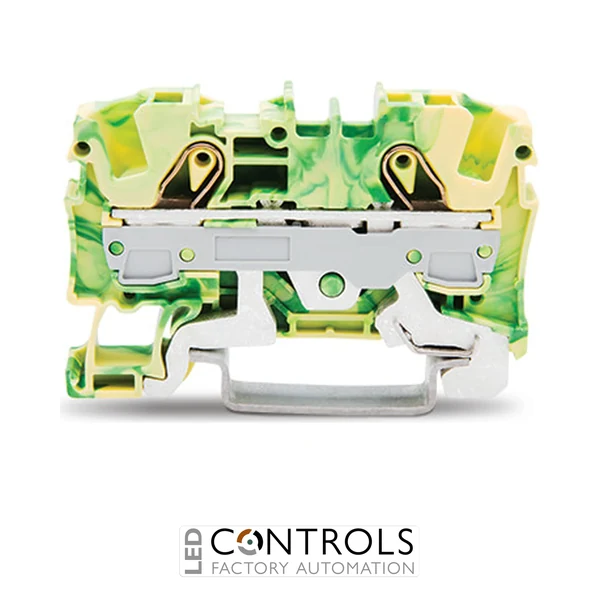

Why Choose the WAGO 2006-1207 TOPJOB S Ground Terminal Block?
The WAGO 2006-1207 is a 2-conductor protective earth terminal block designed for reliable grounding and protective conductor connections in industrial control panels, machinery and building installations. Part of the WAGO TOPJOB S 2006 Series, it provides a secure electrical and mechanical connection between connected protective conductors and the DIN rail through its integrated contact foot.
The 2006-1207 uses WAGO's proven Push-in CAGE CLAMP® connection technology, allowing suitable solid conductors and fine-stranded conductors with ferrules to be inserted directly without tools. Its nominal cross-section is 6 mm², while its universal connection system accommodates solid and fine-stranded conductors from 0.5–10 mm², providing flexibility across a wide range of industrial wiring applications.
Designed for standard 35 × 7.5 mm and 35 × 15 mm DIN rails, the WAGO 2006-1207 has a compact 7.5 mm width and features the internationally recognised green-yellow protective earth colour scheme. It is also suitable for specified Ex e II applications, making it a versatile grounding terminal for conventional industrial installations and appropriate hazardous-area equipment.
Key Advantages
- 2-conductor protective earth terminal block for reliable grounding connections.
- Push-in CAGE CLAMP® technology enables direct insertion of suitable conductors.
- Wide 0.5–10 mm² conductor range for flexible industrial wiring.
- Integrated contact foot creates a direct electrical connection to the mounting rail.
- Suitable for specified Ex e II applications.
- Compact 7.5 mm width supports space-efficient DIN rail installations.
Key Features
- WAGO TOPJOB S 2006 Series.
- 2-conductor ground terminal block.
- 6 mm² nominal cross-section.
- Push-in CAGE CLAMP® connection technology.
- Two connection points with one protective earth potential.
- Solid conductor capacity from 0.5–10 mm².
- Fine-stranded conductor capacity from 0.5–10 mm².
- Suitable for Ex e II applications.
- Side and centre marking capability.
- Green-yellow polyamide housing for clear protective earth identification.
Reliable Protective Earth Connections for Industrial Panels
Protective earth terminal blocks provide an essential connection between equipment protective conductors and the grounded DIN rail within an electrical enclosure. The WAGO 2006-1207 uses an integrated contact foot to establish both an electrical and mechanical connection to the mounting rail, helping create a structured protective earth system without requiring a separate connection from each terminal to the rail.
WAGO's Push-in CAGE CLAMP® technology combines maintenance-free spring pressure connection with direct push-in wiring for suitable conductors. Together with its 6 mm² nominal cross-section, broad 0.5–10 mm² conductor capacity and suitability for specified Ex e II applications, the 2006-1207 provides a versatile grounding solution for industrial automation, machinery and electrical distribution systems.
Typical Applications
- Protective earth wiring in industrial control panels.
- Machine building and factory automation equipment.
- PLC and automation system cabinets.
- Electrical distribution and switchgear panels.
- Protective conductor connections to grounded DIN rails.
- Specified Ex e II industrial and hazardous-area applications.
