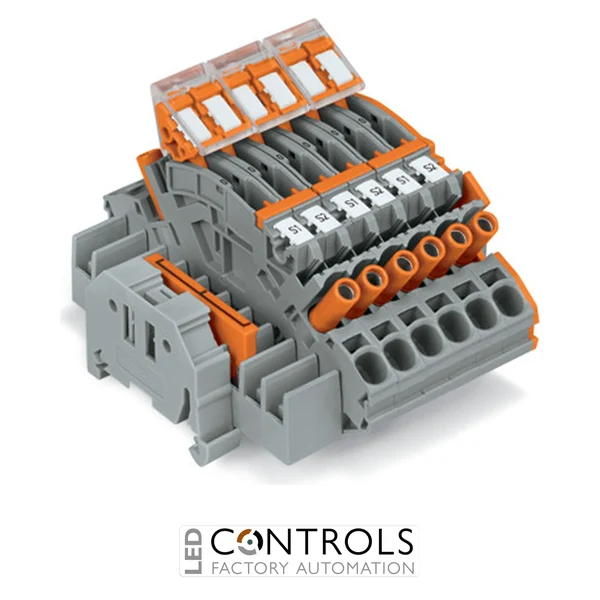

Why Choose the WAGO 2007-8876 TOPJOB® S Compact Current Transformer Terminal Block?
The WAGO 2007-8876 is a specialised compact terminal block for 3-phase current transformer circuits, designed for structured CT wiring in industrial measurement, metering and power distribution systems. Part of the WAGO TOPJOB® S 2007 Series, it combines multiple current-transformer connection functions in a compact DIN-rail-mounted assembly with a multicoloured design for clear circuit identification.
Using WAGO Push-in CAGE CLAMP® connection technology, the 2007-8876 provides reliable spring-pressure conductor termination and supports direct insertion of suitable solid conductors and fine-stranded conductors with ferrules. This helps simplify installation and maintenance while providing dependable connections for demanding current-transformer circuits.
With a nominal cross-section of 6 mm², a rated voltage of 500 V and a rated impulse withstand voltage of 6 kV, the 2007-8876 is engineered for industrial three-phase CT applications. It accepts copper conductors across a broad cross-section range and mounts on standard DIN-35 rail, providing an integrated solution for organised transformer secondary wiring.
Key Advantages
- Purpose-designed compact terminal block for 3-phase current transformer circuits.
- 6 mm² nominal cross-section for industrial CT secondary wiring.
- WAGO Push-in CAGE CLAMP® technology provides secure spring-pressure termination.
- Direct push-in connection for suitable solid conductors and fine-stranded conductors with ferrules.
- 500 V rated voltage for industrial measurement and distribution applications.
- 6 kV rated impulse withstand voltage.
- Multicoloured construction supports clear identification within three-phase circuits.
- DIN-rail mounting simplifies integration into switchgear, metering and control cabinets.
Key Features
- WAGO TOPJOB® S 2007 Series.
- Compact current transformer terminal block.
- Designed specifically for 3-phase current transformer circuits.
- Push-in CAGE CLAMP® connection technology.
- 6 mm² nominal cross-section.
- Supports copper conductors with cross-sections up to 10 mm², depending on conductor type.
- 13–15 mm conductor strip length.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- DIN-35 rail mounting for industrial panel installations.
Current transformer secondary circuits require carefully organised and dependable connections for measurement, metering and protection equipment. The WAGO 2007-8876 combines the required terminal functions into a compact assembly specifically configured for three-phase CT circuits, reducing the need to construct the arrangement from numerous individual terminal components.
Push-in CAGE CLAMP® technology provides consistent spring contact pressure and accommodates different copper conductor types. Combined with DIN-rail mounting and multicoloured identification, the terminal block helps panel builders create clearly structured current-transformer circuits that are easier to install, identify and maintain.
Typical Applications
- Three-phase current transformer secondary circuits.
- Industrial energy measurement and metering panels.
- Switchgear and electrical distribution systems.
- Power monitoring installations.
- Protection and measurement circuits.
- Industrial control and automation cabinets.
- Current-transformer interfaces for meters and monitoring equipment.
