Why Choose the WAGO 2102-5201 TOPJOB S 2-Conductor Through Terminal Block?

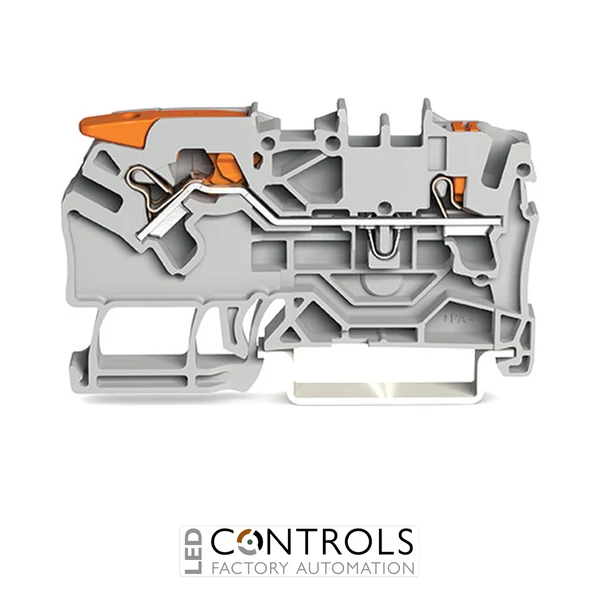

The WAGO 2102-5201 is a 2-conductor through terminal block with lever and push-button operation from the TOPJOB® S 2102 Series. Designed for 2.5 mm²-class wiring, this grey DIN rail terminal combines WAGO's Push-in CAGE CLAMP® technology with two different operating methods, providing convenient conductor termination for industrial control panels, machinery and building installations.
The terminal incorporates a lever and push-button alongside Push-in CAGE CLAMP® connection technology. Suitable solid and ferruled conductors can be inserted directly, while the operating elements simplify opening of the spring connection when connecting or removing other conductor types. A built-in test port also provides convenient access for electrical testing and commissioning.
Rated at 800 V and 24 A, the 2102-5201 accepts solid and fine-stranded copper conductors from 0.25 to 4 mm². Its compact 5.2 mm width, side and centre marking positions and compatibility with both 35 × 7.5 mm and 35 × 15 mm DIN rails make it well suited to dense, clearly organised terminal assemblies.
Key Advantages
- Combines lever and push-button operation with Push-in CAGE CLAMP® technology.
- 2.5 mm² nominal cross-section for common control and distribution wiring.
- Accepts solid and fine-stranded conductors from 0.25 to 4 mm².
- Direct push-in termination supports fast connection of suitable conductors.
- Integrated test port facilitates testing, measurement and commissioning.
- Rated at 800 V and 24 A according to IEC data.
- Slim 5.2 mm pitch supports high-density terminal installations.
- Side and centre marking positions help maintain clear circuit identification.
Key Features
- WAGO TOPJOB S 2102 Series.
- 2-conductor through terminal block.
- Lever and push-button actuation.
- Push-in CAGE CLAMP® connection technology.
- 2.5 mm² nominal cross-section.
- 2 connection points.
- 1 electrical potential.
- Single-level design.
- Integrated test port.
- Front-entry wiring.
- Solid conductor range of 0.25 to 4 mm².
- Fine-stranded conductor range of 0.25 to 4 mm².
- Solid conductor direct push-in range of 0.75 to 4 mm².
- 10 to 12 mm stripping length.
- Side and centre marking capability.
- Grey polyamide housing.
Flexible Through-Wiring with Lever, Push-Button and Push-In Connection
The WAGO 2102-5201 combines several convenient operating methods in one compact terminal. Push-in CAGE CLAMP® enables suitable solid and ferruled conductors to be inserted directly, while the lever and push-button provide convenient spring-clamp actuation for conductor installation, removal and rewiring. This flexibility is particularly useful during panel assembly, testing and maintenance.
Two conductor connection points share one electrical potential, providing straightforward feed-through wiring. The integrated test port allows compatible test equipment to access the circuit without disturbing the connected conductors, while side and centre marking positions help maintain clear identification throughout complex terminal rows.
Typical Applications
- Industrial control and automation panels.
- Machine-building and OEM electrical equipment.
- PLC and control-system terminal assemblies.
- Building electrical installations.
- Power and control circuit through-wiring.
- DIN rail terminal assemblies requiring convenient testing and maintenance access.
