Why Choose the WAGO 2104-5201 TOPJOB S 2-Conductor Through Terminal Block?

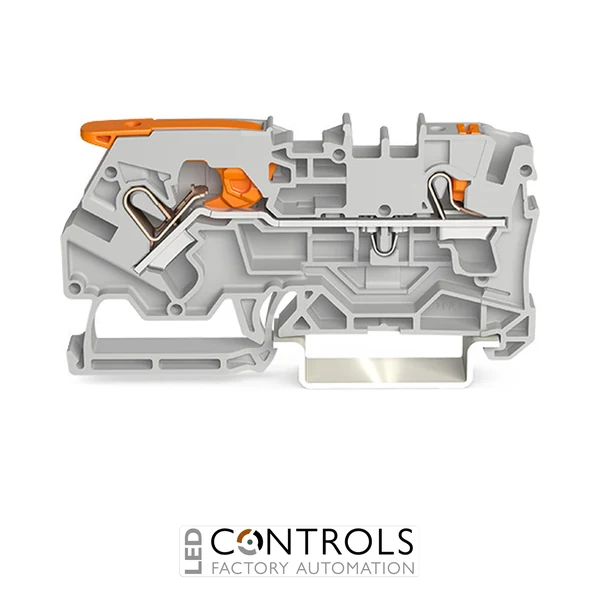

The WAGO 2104-5201 is a 2-conductor through terminal block with lever and push-button operation from the TOPJOB® S range. Designed for 4 mm²-class wiring, this grey DIN rail terminal combines WAGO spring-clamp technology with intuitive operating elements for efficient conductor termination in industrial control panels, machinery and electrical distribution systems.
The combination of lever and push-button operation provides convenient access to the spring connection during installation, testing, maintenance and rewiring. Suitable conductors can also benefit from direct push-in termination, reducing installation effort while retaining the consistent contact pressure associated with WAGO spring-clamp connections.
The 2104-5201 provides two conductor connection points on one electrical potential for straightforward feed-through wiring. Its compact DIN rail format, grey insulating housing and integrated marking and testing provisions make it a practical choice for clearly organised professional terminal assemblies requiring a 4 mm² nominal cross-section.
Key Advantages
- 4 mm² nominal cross-section for industrial power and control wiring.
- Combines lever and push-button operation for convenient conductor handling.
- Spring-clamp connection maintains consistent contact pressure without routine screw retightening.
- Direct push-in capability for suitable conductor types helps reduce installation time.
- 2-conductor feed-through design provides simple point-to-point circuit continuity.
- Integrated testing provision supports commissioning and troubleshooting.
- Compact construction helps maximise available DIN rail space.
- Suitable for control panels, machinery, automation equipment and distribution assemblies.
Key Features
- WAGO TOPJOB S terminal block.
- Manufacturer part number 2104-5201.
- 2-conductor through terminal block.
- 4 mm² nominal cross-section.
- Lever and push-button operating elements.
- Spring-clamp conductor connection.
- Direct push-in connection for suitable conductors.
- 2 connection points.
- 1 electrical potential.
- Single-level design.
- Feed-through electrical function.
- Integrated testing provision.
- Designed for DIN rail mounting.
- Suitable for modular terminal block assemblies.
- Grey insulating housing.
- Designed for professional industrial wiring applications.
Flexible 4 mm² Through-Wiring with Lever and Push-Button Operation
The WAGO 2104-5201 is designed to make conductor termination and subsequent maintenance straightforward. Its spring-clamp connection maintains pressure on the conductor, while the lever and push-button operating elements provide convenient ways to open the connection when inserting, removing or replacing conductors.
Both connection points share the same electrical potential, allowing the terminal to perform a conventional feed-through function between incoming and outgoing conductors. The modular TOPJOB S design also supports organised DIN rail assemblies with appropriate WAGO marking, testing and terminal accessories.
Typical Applications
- Industrial control panel wiring.
- Machine-building and OEM electrical equipment.
- PLC and automation system terminal assemblies.
- Power and control circuit distribution.
- Building electrical and control installations.
- DIN rail assemblies requiring accessible feed-through connections.
