Why Choose the WAGO 2110-5201 TOPJOB S 2-Conductor Through Terminal Block?

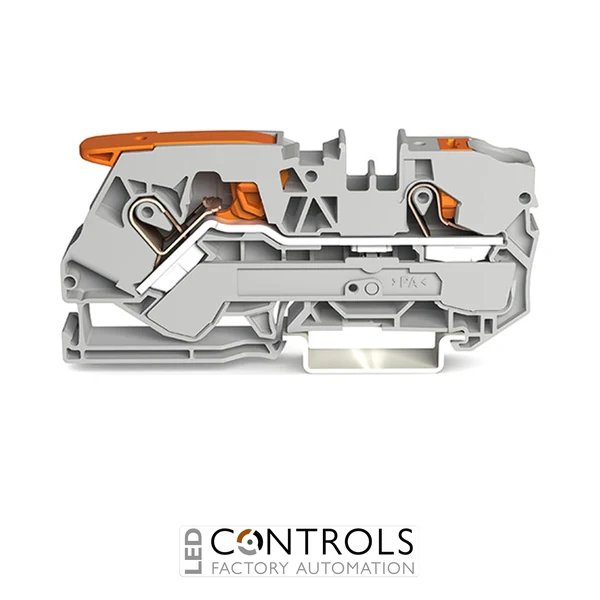

The WAGO 2110-5201 is a 2-conductor through terminal block from the TOPJOB S 2110 Series, combining a lever and push-button with WAGO's proven Push-in CAGE CLAMP® connection technology. Designed around a nominal cross-section of 10 mm², it provides a convenient screwless solution for power and control wiring in industrial panels, machinery and electrical distribution equipment.
The combination of operating methods provides flexibility during installation. The lever offers intuitive opening and closing of the clamping point, while the push-button provides convenient tool-assisted actuation. Suitable solid conductors can also be terminated directly using push-in technology, helping reduce wiring time while maintaining a secure spring-pressure connection.
Rated at 800 V and 57 A according to IEC/EN data, the WAGO 2110-5201 accepts copper conductors up to 16 mm² depending on conductor type. It also incorporates a test port, supports side and centre marking, and mounts onto standard 35 × 15 mm and 35 × 7.5 mm DIN rails.
Key Advantages
- Combines lever and push-button operation in one versatile terminal block.
- Push-in CAGE CLAMP® technology provides secure, maintenance-free spring-pressure connections.
- 10 mm² nominal cross-section with conductor capacity up to 16 mm² depending on conductor type.
- High electrical rating of 57 A at 800 V according to IEC/EN data.
- Integrated test port simplifies electrical testing and commissioning.
- Compact 10 mm width helps optimise DIN rail space in control cabinets.
Key Features
- WAGO TOPJOB S 2110 Series rail-mounted terminal block.
- 2-conductor through / feed-through configuration.
- Lever and push-button actuation.
- Push-in CAGE CLAMP® connection technology.
- 10 mm² nominal conductor cross-section.
- 57 A rated current.
- 800 V rated voltage.
- 8 kV rated impulse voltage.
- Integrated test port for testing and measurement.
- Side and centre marking for clear circuit identification.
- Two clamping units on one electrical potential.
- Front-entry conductor connection.
- Compatible with DIN 35 × 15 mm and DIN 35 × 7.5 mm rails.
- Grey housing for standard feed-through circuit identification.
Reliable Lever and Push-Button Connections for Industrial Wiring
The WAGO 2110-5201 combines several convenient operating methods within one high-current terminal block. Push-in CAGE CLAMP® technology allows suitable rigid conductors to be inserted directly, while lever and push-button actuation simplifies the connection and removal of other conductor types. The spring-pressure connection maintains consistent contact force without requiring routine screw retightening.
With a 57 A rated current, broad conductor capacity and compact 10 mm width, the 2110-5201 is well suited to power distribution and industrial control applications where both connection performance and installation efficiency are important. Its integrated test port and marking provisions further simplify commissioning, troubleshooting and long-term circuit identification.
Typical Applications
- Industrial control panels and electrical cabinets.
- Machine building and factory automation systems.
- Power distribution and higher-current control circuits.
- PLC and process-control installations.
- Switchgear and electrical distribution assemblies.
- DIN rail terminal systems requiring convenient testing and circuit identification.
