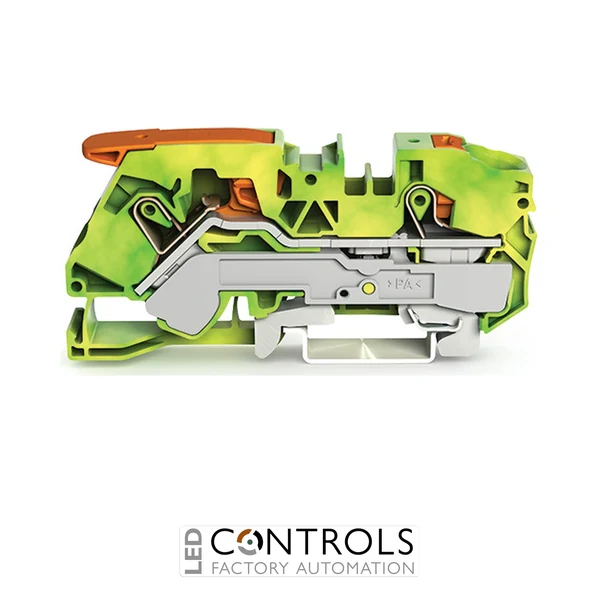

Why Choose the WAGO 2116-5207 2-Conductor Ground Terminal Block?
The WAGO 2116-5207 is a professional 2-conductor ground terminal block designed for protective earth connections in industrial control panels, switchgear and electrical distribution systems. Part of the WAGO TOPJOB® S range, it combines lever and push-button actuation with Push-in CAGE CLAMP® technology to provide secure, convenient conductor termination in a green-yellow protective earth terminal.
Designed for DIN-35 rail mounting, the 2116-5207 establishes the protective earth connection through the mounting rail while providing two conductor clamping points on one potential. The combination of a lever-operated connection and push-button-operated connection provides installation flexibility, while suitable solid conductors can be inserted directly using WAGO's push-in termination principle.
With a nominal conductor cross-section of 16 mm², the WAGO 2116-5207 accepts solid conductors from 0.5 to 16 mm² and fine-stranded conductors up to 25 mm². It also incorporates a test port, side and centre marking positions and two jumper slots, providing a versatile protective earth connection for demanding industrial panel-building applications.
Key Advantages
- Purpose-designed 2-conductor protective earth terminal block for industrial installations.
- 16 mm² nominal cross-section supports higher-current protective conductor applications.
- Combined lever and push-button operation simplifies conductor insertion and removal.
- Push-in CAGE CLAMP® technology provides secure spring-pressure conductor termination.
- Integrated test port plus side and centre marking supports testing and clear circuit identification.
- Green-yellow housing provides immediate identification as a protective earth terminal.
Key Features
- WAGO TOPJOB® S 2116 Series ground terminal block.
- 2-conductor / 2-clamping-unit configuration.
- 16 mm² nominal conductor cross-section.
- Combined lever and push-button actuation.
- Push-in CAGE CLAMP® spring-pressure connection technology.
- Suitable for DIN-35 × 15 and DIN-35 × 7.5 rails.
- Integrated test port and two jumper slots.
- Green-yellow PA66 insulating housing for protective earth identification.
Reliable Protective Earth Connections with Push-in CAGE CLAMP®
Protective earth terminal blocks provide a dedicated connection between protective conductors and the DIN rail, helping establish the grounding and equipotential bonding arrangement required within electrical equipment. The green-yellow WAGO 2116-5207 makes the protective earth function immediately identifiable while providing two convenient conductor connection points.
Its Push-in CAGE CLAMP® technology maintains conductor contact using spring pressure rather than a conventional screw connection. The lever and push-button operating methods provide flexible access to the clamping points, while direct push-in termination can further accelerate installation for suitable conductors. The integrated test port and marking facilities also support commissioning, identification and ongoing maintenance.
Typical Applications
- Protective earth connections in industrial control cabinets.
- Grounding conductors in switchgear and distribution panels.
- Machine building and factory automation systems.
- Protective conductor distribution in DIN-rail terminal assemblies.
- Motor control and industrial machinery panels.
- Equipotential bonding and protective grounding applications.
