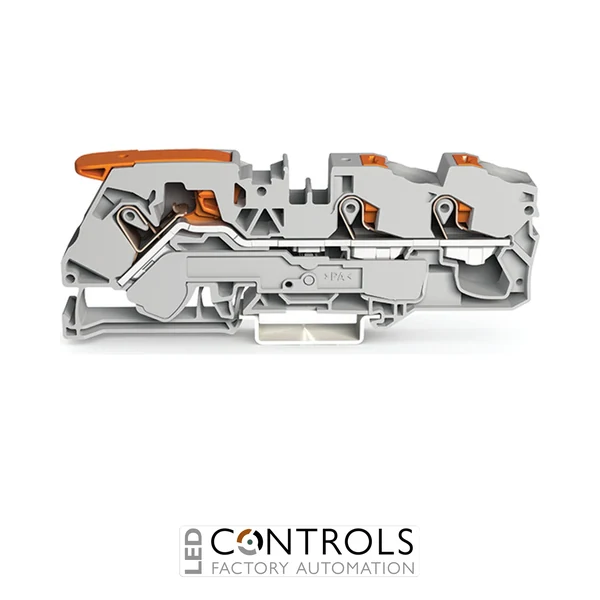

Why Choose the WAGO 2116-5301 TOPJOB S 3-Conductor Through Terminal Block?
The WAGO 2116-5301 is a 3-conductor through terminal block designed for reliable high-current conductor connections in industrial control panels, machinery and electrical distribution systems. Part of the WAGO TOPJOB S 2116 Series, it combines a lever and push-button operating concept with WAGO's proven Push-in CAGE CLAMP® technology for fast, secure and maintenance-free wiring.
Designed around a nominal 16 mm² cross-section, the 2116-5301 provides three connection points on a single potential and accommodates a broad range of conductor types. Suitable conductors can be inserted directly using push-in termination, while the integrated lever and push-button provide convenient operation when connecting or removing other conductor types.
The WAGO 2116-5301 is rated at 800 V and 76 A under IEC/EN specifications, with current carrying capacity up to 90 A at the maximum conductor cross-section. It also incorporates a test port, side and centre marking facilities and mounting compatibility with both 35 × 7.5 mm and 35 × 15 mm DIN rails, making it a versatile solution for professional industrial wiring.
Key Advantages
- Three conductor connection points provide convenient distribution of a single electrical potential.
- Combined lever and push-button operation simplifies conductor connection and removal.
- Push-in CAGE CLAMP® technology enables direct insertion of suitable conductors.
- High-capacity 16 mm² nominal cross-section for demanding industrial circuits.
- Integrated test port supports efficient electrical testing and commissioning.
- Compatible with standard 35 mm DIN rails for straightforward panel integration.
Key Features
- WAGO TOPJOB S 2116 Series.
- 3-conductor through terminal block.
- 16 mm² nominal cross-section.
- Push-in CAGE CLAMP® connection technology.
- Combined lever and push-button actuation.
- Three connection points on one level.
- 800 V IEC rated voltage.
- 76 A IEC rated current.
- Current carrying capacity up to 90 A at maximum conductor cross-section.
- Integrated test port for convenient measurement and testing.
- Side and centre marking facilities.
- Grey insulating housing.
Flexible High-Current Through Wiring for Control Panels
Through terminal blocks provide a structured method of connecting incoming and outgoing conductors on a common electrical potential. A three-conductor design adds an additional connection point, making it easier to branch or distribute a circuit without installing an additional terminal or external connection, which can reduce wiring complexity within densely populated industrial panels.
The WAGO 2116-5301 combines this three-conductor architecture with Push-in CAGE CLAMP® technology and dedicated lever and push-button operation. Together with its 16 mm² nominal cross-section, 800 V IEC rating and integrated test port, it provides panel builders with a versatile solution for higher-current power distribution, machine wiring and industrial automation systems.
Typical Applications
- High-current wiring within industrial control panels.
- Electrical power distribution in machinery and production equipment.
- Industrial automation and process control systems.
- Three-conductor circuit distribution and branching.
- Switchgear and electrical distribution cabinets.
- Building automation and industrial electrical installations.
