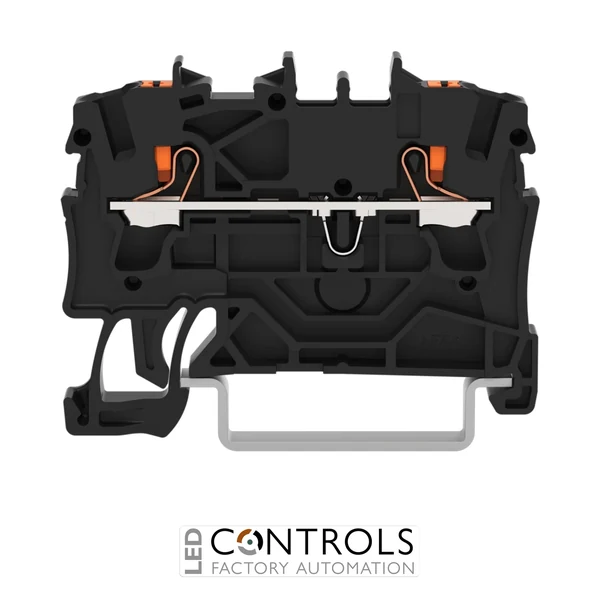

Why Choose the WAGO 2202-1205 2-Conductor Through Terminal Block?
The WAGO 2202-1205 is a compact 2-conductor through terminal block with push-button operation, designed for reliable through-wiring and potential distribution in industrial control panels, machinery and building installations. Part of the WAGO TOPJOB® S 2202 Series, this black terminal combines a 2.5 mm² nominal cross-section with Push-in CAGE CLAMP® technology for fast, secure and maintenance-friendly conductor termination.
The terminal provides two connection points on one electrical potential and uses front-entry wiring for convenient installation in densely populated control cabinets. Its integrated push-buttons provide intuitive opening of the spring clamp, while suitable solid and fine-stranded conductors with ferrules can be connected directly using the push-in termination method. An integrated test port also provides convenient access for electrical testing and commissioning.
Designed for DIN-35 × 15 and DIN-35 × 7.5 mm rails, the WAGO 2202-1205 has an IEC rated voltage of 800 V and rated current of 24 A, with the 2202 Series supporting up to 32 A depending on the applicable conductor and approval conditions. At only 5.2 mm wide, it provides an efficient solution where reliable connectivity and high terminal density are required.
Key Advantages
- Compact 2-conductor through terminal block for through-wiring and potential distribution.
- Push-button operation provides simple and intuitive conductor connection and removal.
- Push-in CAGE CLAMP® technology enables direct insertion of suitable conductors.
- Only 5.2 mm wide, helping maximise terminal density inside control cabinets.
- Integrated test port plus side and centre marking supports commissioning and circuit identification.
- Suitable for DIN-35 × 15 and DIN-35 × 7.5 mm rails and specific Ex e II applications.
Key Features
- WAGO TOPJOB® S 2202 Series terminal block.
- 2-conductor / 2-connection-point configuration.
- 2.5 mm² nominal cross-section.
- Push-in CAGE CLAMP® spring-pressure connection.
- Push-button actuation for straightforward wiring.
- 800 V IEC rated voltage.
- 24 A IEC rated current.
- Black PA66 insulating housing with front-entry wiring.
Fast and Reliable Push-Button Terminal Wiring
Through terminal blocks provide a straightforward method of joining two conductors at the same electrical potential. The WAGO 2202-1205 uses Push-in CAGE CLAMP® spring-pressure technology, eliminating the conventional screw connection and providing consistent conductor contact without routine screw-terminal retightening.
Push-button actuation makes the clamping point easy to operate when connecting or removing conductors, while suitable conductors can be pushed directly into the terminal without first operating the push-button. Combined with its slim 5.2 mm width, test facility and marking positions, this makes the 2202-1205 particularly useful for high-density control panel wiring and organised DIN-rail terminal assemblies.
Typical Applications
- Industrial control cabinets and automation panels.
- Through-wiring and potential distribution circuits.
- Machine building and factory automation equipment.
- Switchgear and low-voltage distribution assemblies.
- Building automation and electrical installations.
- High-density DIN-rail terminal block assemblies.
