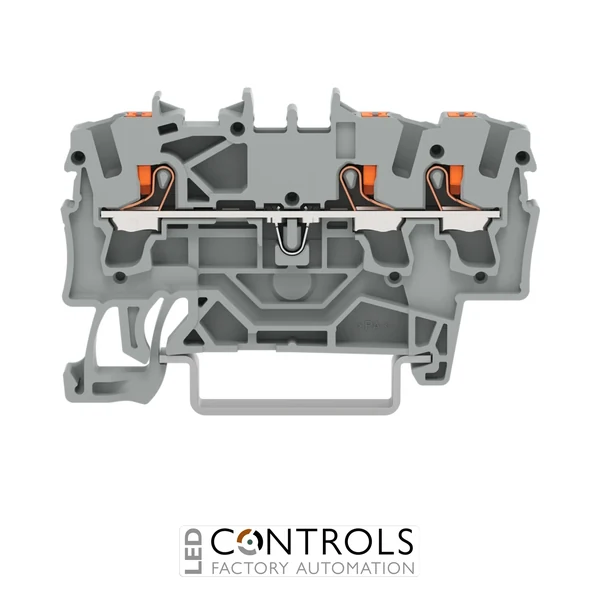

Why Choose the WAGO 2202-1301 3-Conductor Through Terminal Block?
The WAGO 2202-1301 is a compact and reliable 3-conductor through terminal block designed for secure electrical connections in industrial control panels, machinery and building installations. As part of the WAGO TOPJOB® S 2202 Series, it combines Push-in CAGE CLAMP® connection technology with convenient push-button actuation for fast, tool-assisted conductor termination.
This grey through terminal block provides three connection points on a single potential and is designed for a nominal conductor cross-section of 2.5 mm². Push-in CAGE CLAMP® technology allows suitable solid and ferruled conductors to be inserted directly, while the integrated push-buttons simplify conductor removal and the connection of flexible conductors.
The 2202-1301 is rated for up to 800 V and is suitable for currents up to 32 A under IEC ratings. It also incorporates a test port, side and centre marking facilities and mounting compatibility with standard 35 mm DIN rails, making it well suited to organised and service-friendly control cabinet wiring.
Key Advantages
- Compact 3-conductor through terminal block for reliable potential distribution.
- 2.5 mm² nominal conductor size for common industrial control wiring.
- Push-in CAGE CLAMP® connection technology for fast and secure termination.
- Integrated push-button actuation simplifies conductor insertion and removal.
- Rated up to 800 V and 32 A according to IEC specifications.
- Built-in test port and side and centre marking options support commissioning and maintenance.
Key Features
- WAGO TOPJOB® S 2202 Series.
- 3 connection points with one electrical potential.
- 2.5 mm² nominal cross-section.
- Push-in CAGE CLAMP® conductor connection.
- Push-button actuation.
- 800 V IEC rated voltage.
- 32 A IEC current rating.
- Integrated test port for electrical testing and commissioning.
- Two jumper slots for potential distribution accessories.
- Suitable for 35 × 15 mm and 35 × 7.5 mm DIN rails.
- Grey housing with side and centre marking facilities.
Fast and Reliable Push-in CAGE CLAMP® Connections
WAGO Push-in CAGE CLAMP® technology is designed to provide secure, vibration-resistant conductor connections while reducing wiring time. Suitable solid and ferruled conductors can be inserted directly into the terminal point, while the push-button provides intuitive operation when connecting flexible conductors or releasing installed wiring.
The three-conductor configuration allows several conductors to share the same electrical potential without requiring additional external bridging. Combined with integrated jumper slots, test access and marking positions, the 2202-1301 supports clear, efficient and maintainable control cabinet wiring.
Typical Applications
- Industrial control panels and switchgear.
- Machinery and factory automation systems.
- Building electrical installations.
- Power and signal distribution circuits.
- PLC and control cabinet wiring.
- OEM machinery and equipment manufacture.
