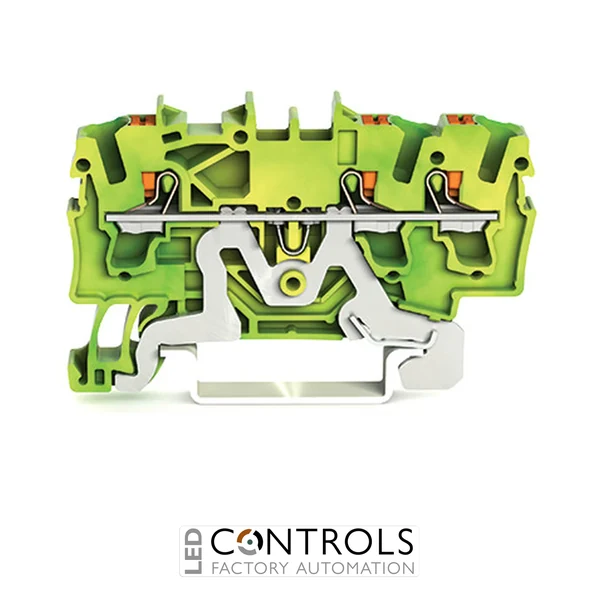

Why Choose the WAGO 2202-1307 3-Conductor Ground Terminal Block?
The WAGO 2202-1307 is a compact and reliable 3-conductor ground terminal block designed for secure protective earth connections in industrial control panels, machinery and electrical distribution systems. As part of the WAGO TOPJOB® S 2202 Series, it combines Push-in CAGE CLAMP® connection technology with convenient push-button actuation for fast and dependable conductor termination.
This green-yellow protective earth terminal block provides three connection points on a single potential and has a nominal conductor cross-section of 2.5 mm². Its Push-in CAGE CLAMP® connection system supports solid and fine-stranded copper conductors, while the integrated push-buttons provide intuitive operation when terminating or removing conductors.
Designed for mounting on standard 35 × 15 mm and 35 × 7.5 mm DIN rails, the 2202-1307 has a compact width of only 5.2 mm. It also incorporates a test port, two jumper slots and side and centre marking facilities, and is suitable for Ex e II applications, making it a versatile grounding solution for demanding industrial installations.
Key Advantages
- Dedicated 3-conductor protective earth terminal block for safe grounding connections.
- 2.5 mm² nominal cross-section for common industrial protective conductors.
- Push-in CAGE CLAMP® technology provides secure spring-pressure connections.
- Integrated push-button actuation simplifies wiring and conductor removal.
- Compact 5.2 mm width helps maximise available DIN-rail space.
- Green-yellow colour provides clear identification of the protective earth function.
- Integrated test port supports testing, commissioning and maintenance.
- Suitable for Ex e II applications.
Key Features
- WAGO TOPJOB® S 2202 Series.
- 3 conductor connection points.
- 1 electrical potential and single-level construction.
- 2.5 mm² nominal conductor cross-section.
- Push-in CAGE CLAMP® connection technology.
- Push-button actuation.
- Conductor range of 0.25–4 mm² for solid and fine-stranded conductors.
- 10–12 mm stripping length.
- Integrated test port for electrical testing.
- Two jumper slots for compatible accessories.
- Side and centre marking facilities.
- Suitable for 35 × 15 mm and 35 × 7.5 mm DIN rails.
- Green-yellow housing for protective earth identification.
Reliable Protective Earth Connections for Industrial Systems
Protective earth connections are essential for electrical safety in machinery, automation equipment and control cabinets. The WAGO 2202-1307 provides a structured means of connecting protective conductors to the DIN rail while its green-yellow housing enables immediate identification of the PE circuit within densely populated terminal assemblies.
WAGO Push-in CAGE CLAMP® technology maintains consistent spring pressure on connected conductors without conventional screw tightening. Combined with push-button operation, integrated test access and flexible marking facilities, the 2202-1307 supports efficient installation, inspection and maintenance throughout the service life of an electrical system.
Typical Applications
- Protective earth wiring in industrial control panels.
- Machinery and factory automation systems.
- Electrical distribution and switchgear assemblies.
- Building electrical installations.
- PLC and process control cabinets.
- OEM machinery and equipment manufacture.
- Suitable Ex e II electrical installations.
