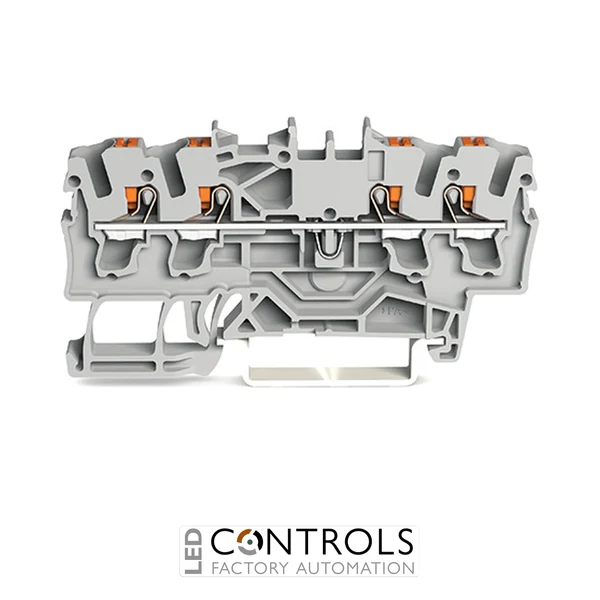

Why Choose the WAGO 2202-1403 TOPJOB® S 4-Conductor Through Terminal Block?
The WAGO 2202-1403 is a compact 4-conductor through terminal block with push-buttons, designed for efficient conductor connection and potential distribution in industrial control panels, machinery and automation equipment. Part of the WAGO TOPJOB® S 2202 Series, this red terminal combines four conductor connection points at one electrical potential in a space-saving DIN-rail format.
WAGO Push-in CAGE CLAMP® connection technology allows suitable solid conductors and fine-stranded conductors with ferrules to be inserted directly, while the clearly accessible push-buttons make opening the spring clamp simple for conductor insertion and removal. This combination provides fast installation with dependable spring-pressure contact and convenient maintenance access.
With a nominal cross-section of 2.5 mm², an IEC rated voltage of 800 V and a rated current of 24 A, the 2202-1403 is well suited to compact industrial wiring. Its 5.2 mm width, front-entry wiring and red housing make it particularly useful where high terminal density and clear circuit identification are required.
Key Advantages
- Compact 4-conductor through terminal block for connecting four conductors at one potential.
- 2.5 mm² nominal cross-section for industrial control and distribution wiring.
- WAGO Push-in CAGE CLAMP® spring-pressure connection technology.
- Integrated push-buttons provide intuitive operation of each connection point.
- 800 V rated voltage and 24 A rated current.
- Supports copper conductors up to 4 mm², depending on conductor type.
- Only 5.2 mm wide for high-density DIN-rail assemblies.
- Red housing enables clear visual differentiation of circuits and potentials.
Key Features
- WAGO TOPJOB® S 2202 Series.
- 4-conductor through terminal block.
- Push-in CAGE CLAMP® connection technology.
- Push-button actuation.
- 2.5 mm² nominal cross-section.
- Four connection points.
- One electrical potential.
- Single-level construction.
- 800 V IEC rated voltage.
- 24 A IEC rated current.
- 8 kV rated impulse withstand voltage.
- Front-entry wiring.
- Suitable for standard 35 mm DIN rails.
- Red insulating housing.
The WAGO TOPJOB® S push-button system combines proven Push-in CAGE CLAMP® technology with clearly accessible operating buttons. Suitable conductors can be pushed directly into the connection point, while pressing the push-button opens the spring clamp for convenient insertion or removal of conductors that require assisted termination.
Because all four connection points are electrically connected at one potential, the 2202-1403 provides an efficient method of branching or distributing a circuit within a terminal strip. Its narrow profile and red housing also support compact, clearly organised panel layouts where different potentials or circuits need to be visually distinguished.
Typical Applications
- Industrial control cabinet wiring.
- PLC input and output connections.
- Signal and control circuit distribution.
- Machine building and factory automation.
- Electrical switchgear and distribution panels.
- Building automation installations.
- Instrumentation and process control systems.
- Circuits requiring clear red terminal identification.
