Why Choose the WAGO 2202-1611 TOPJOB S 2-Conductor Fuse Terminal Block?

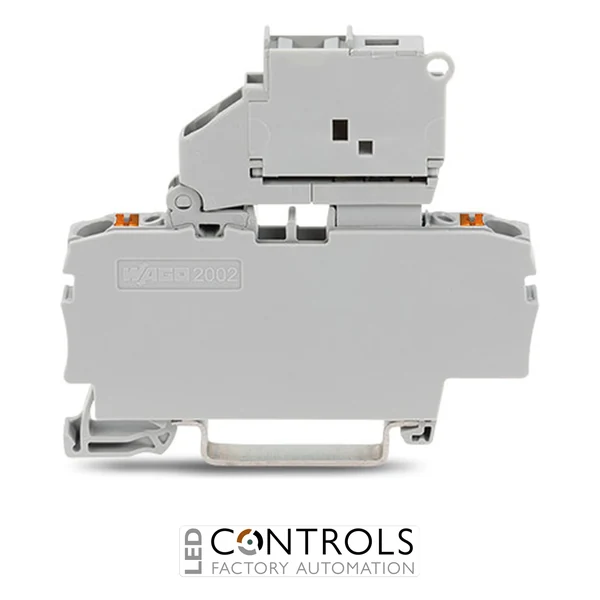

The WAGO 2202-1611 is a 2-conductor fuse terminal block from the TOPJOB® S 2202 Series, combining Push-in CAGE CLAMP® conductor termination with a pivoting fuse holder for standard 5 × 20 mm miniature metric fuses. Supplied with an end plate and finished in grey, it provides a compact DIN rail solution for adding replaceable fuse protection to control, automation and electrical distribution circuits.
The terminal features push-button actuation and Push-in CAGE CLAMP® technology, allowing suitable solid and fine-stranded conductors with ferrules to be inserted directly while also providing convenient spring-clamp operation for installation and removal. Its pivoting fuse carrier provides accessible fuse replacement and clear circuit isolation at the terminal position.
Designed around a 2.5 mm² nominal cross-section, the 2202-1611 accepts copper conductors from 0.25 to 4 mm² and requires a stripping length of 10 to 12 mm. It is rated at 250 V and 6.3 A according to IEC/EN 60947-7-3, has a rated impulse withstand voltage of 6 kV, and is supplied without blown-fuse indication.
Key Advantages
- Combines terminal connection and fuse protection in one compact DIN rail component.
- Pivoting holder accepts standard 5 × 20 mm miniature metric fuses.
- Push-in CAGE CLAMP® technology enables fast and secure spring-pressure conductor termination.
- Integrated push-button actuation simplifies conductor installation and removal.
- Accepts copper conductors across a broad 0.25 to 4 mm² connection range.
- 250 V / 6.3 A IEC rating for compatible fused circuits.
- Supplied with the required end plate for convenient terminal-row assembly.
- No blown-fuse indicator circuitry, making it suitable where a straightforward passive fuse terminal is required.
Key Features
- WAGO TOPJOB S 2202 Series.
- 2-conductor fuse terminal block.
- 2.5 mm² nominal cross-section.
- Push-in CAGE CLAMP® connection technology.
- Push-button actuation.
- Pivoting fuse holder.
- Designed for 5 × 20 mm miniature metric fuses.
- End plate included.
- Without blown-fuse indication.
- 2 conductor connection points.
- 1 electrical potential.
- Single-level construction.
- Conductor range up to 4 mm².
- 10 to 12 mm stripping length.
- Compatible with 35 × 7.5 mm and 35 × 15 mm DIN rails.
- Grey insulating housing.
Compact Fused Circuit Protection with Push-In CAGE CLAMP®
The WAGO 2202-1611 integrates a 5 × 20 mm fuse holder directly into the terminal block, allowing individual circuits to be fused without requiring a separate panel-mounted fuse holder. The pivoting carrier provides convenient access to the fuse and can simplify inspection, replacement and circuit servicing within densely populated terminal assemblies.
Push-in CAGE CLAMP® technology complements the fuse function by providing fast spring-pressure conductor termination. Suitable solid and fine-stranded conductors with ferrules can be connected directly, while the push-button provides easy clamp actuation when required. The standard 2202-1611 has no blown-fuse indication; WAGO offers separate variants where LED fuse-status indication is required.
Typical Applications
- Individual circuit fuse protection in industrial control panels.
- PLC, controller and automation system wiring.
- Machine-building and OEM electrical equipment.
- Protection of control, signal and auxiliary circuits.
- Switchgear and electrical distribution assemblies.
- DIN rail installations requiring accessible 5 × 20 mm fuse protection.
