Why Choose the WAGO 221-415 5-Conductor Splicing Connector?

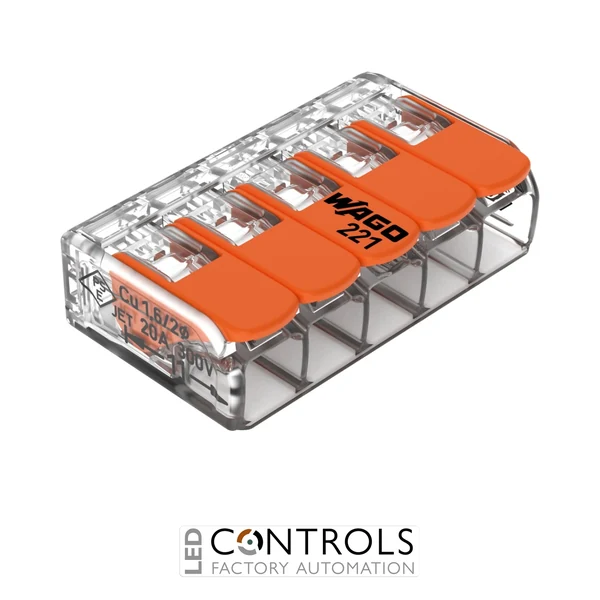

The WAGO 221-415 is a compact and versatile 5-conductor splicing connector with levers designed for fast, secure and reusable electrical connections. Part of the proven WAGO 221 Series COMPACT, it accepts solid, stranded and fine-stranded conductors, making it an exceptionally flexible solution for building installations, lighting circuits, junction boxes and equipment wiring.
Five independent lever-operated connection points allow conductors of different types and cross-sections to be joined on a common electrical connection without screws or specialist termination tools. Solid and stranded conductors from 0.2–4 mm² and fine-stranded conductors from 0.14–4 mm² can be connected simply by lifting the lever, inserting the stripped conductor and closing the lever.
The 221-415 is rated at 450 V and 32 A under its IEC/EN ratings and has a maximum surrounding air temperature of 85 °C (T85). Its transparent housing enables visual inspection of conductor insertion and stripping length, while two accessible test ports simplify electrical testing after installation.
Key Advantages
- Compact 5-conductor splicing connector for electrical installation and equipment wiring.
- Suitable for solid, stranded and fine-stranded conductors.
- Accepts conductors up to 4 mm².
- Simple lever-operated connection requires no screw tightening.
- 32 A and 450 V ratings support a wide range of electrical circuits.
- Transparent housing allows visual inspection of conductor positioning.
- Two test ports provide convenient access for electrical measurements.
- Compact design helps conserve valuable space inside junction boxes and enclosures.
Key Features
- WAGO 221 Series COMPACT splicing connector.
- 5 conductor connection points.
- Lever connection technology for simple, intuitive operation.
- Solid conductor range of 0.2–4 mm².
- Stranded conductor range of 0.2–4 mm².
- Fine-stranded conductor range of 0.14–4 mm².
- 24–12 AWG conductor range.
- 11 mm stripping length.
- 450 V rated voltage.
- 32 A rated current.
- 4 kV rated impulse voltage.
- Maximum surrounding air temperature of 85 °C (T85).
- Transparent housing for visual connection inspection.
- Two accessible test ports for measurement and troubleshooting.
Fast Connections for All Conductor Types
The WAGO 221 Series lever system makes conductor termination straightforward: lift the operating lever, insert the correctly stripped conductor and push the lever back down. Spring-pressure connection technology maintains secure electrical contact without the routine tightening associated with conventional screw terminals.
Because the 221-415 accommodates solid, stranded and fine-stranded conductors, different conductor types and sizes can be combined within the same connector. Its transparent housing provides immediate visual confirmation of correct conductor positioning, while the compact design is particularly advantageous in crowded junction boxes and installation enclosures.
Typical Applications
- Junction boxes and electrical installation enclosures.
- Lighting circuits and luminaires.
- Building electrical installations.
- Domestic and commercial wiring.
- Industrial machinery and equipment wiring.
- Control and automation equipment.
- Connecting solid, stranded and fine-stranded conductors.
