Why Choose the Cembre DNB160-10 Neutral Bar?

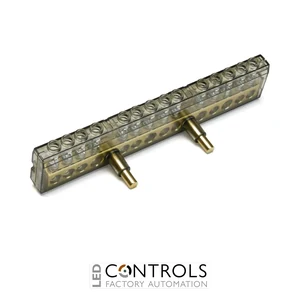

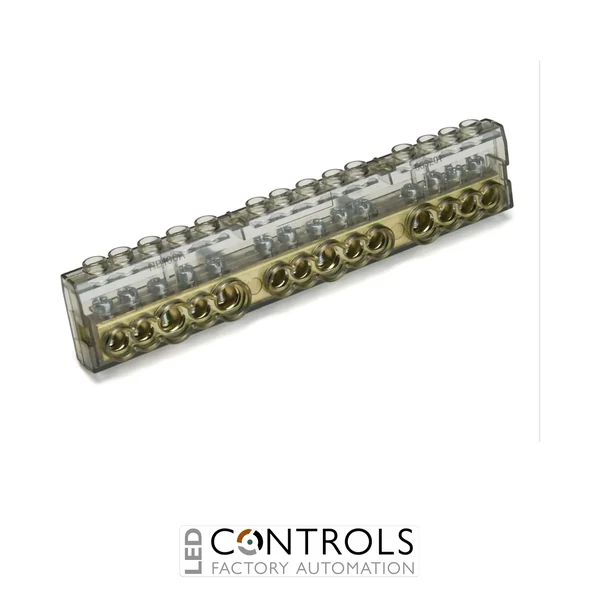

The Cembre DNB160-10, manufacturer reference 2843692, is a professional 160 A neutral bar designed for structured neutral conductor distribution in industrial electrical panels, switchgear and power distribution assemblies. Part of Cembre's DBLOCK accessory range, it combines four incoming connection points with ten outgoing connections in a compact insulated assembly.
The DNB160-10 uses direct screw clamping with captive galvanised-steel clamping elements and a robust brass conductive body. Easy-entry incoming connections assist conductor insertion, while the transparent polycarbonate insulating housing allows the connection arrangement to remain visible and provides IP20 protection when correctly installed.
Rated for an operating current of 160 A, the neutral bar accepts incoming low-stranded conductors from 10–35 mm² and flexible conductors from 10–25 mm². Its ten outgoing positions accommodate low-stranded conductors from 2.5–16 mm² and flexible conductors from 1.5–16 mm², providing a practical solution for distributing a common neutral connection across multiple circuits.
Key Advantages
- Professional 160 A neutral distribution bar for electrical panels and switchgear.
- 4 incoming and 10 outgoing connections provide flexible neutral distribution.
- Incoming conductor capacity up to 35 mm².
- Outgoing conductor capacity up to 16 mm².
- Robust brass conductive body for dependable electrical performance.
- Direct screw clamping provides secure conductor termination.
- Captive screws simplify installation and help prevent lost hardware.
- Transparent polycarbonate insulating housing provides visibility of the conductive assembly.
- IP20 protection for professional panel installations.
- CE and UKCA marked and RoHS compliant.
Key Features
- Cembre DNB Series neutral bar.
- 160 A operating current.
- 10-way outgoing distribution.
- 4 incoming connection holes.
- 10 outgoing connection holes.
- 14 total connection ways.
- Direct clamping system.
- 2 Nm clamping torque.
- Easy-entry incoming conductor connections.
- Captive galvanised-steel clamping screws.
- 35 kA rated peak withstand current (Ipk).
- Designed for integration with compatible Cembre DBLOCK power distribution equipment.
Efficient High-Current Neutral Distribution
The Cembre DNB160-10 provides a central connection point for distributing a common neutral conductor to multiple outgoing circuits. Four higher-capacity incoming positions and ten outgoing connections allow panel builders to organise neutral distribution without relying on multiple individual terminal links, helping simplify wiring and create a cleaner panel layout.
Its brass conductive body provides a robust current path, while direct screw clamping securely terminates conductors across a broad range of cross-sections. The transparent polycarbonate housing provides insulation while allowing visual inspection of the internal assembly, making the DNB160-10 particularly suitable for professionally constructed distribution boards and industrial switchgear.
Typical Applications
- Neutral conductor distribution in electrical panels.
- Industrial switchgear assemblies.
- Power distribution boards.
- Industrial control cabinets.
- Machine and equipment electrical panels.
- Building electrical distribution systems.
- OEM power distribution equipment.
- Cembre DBLOCK distribution assemblies.
