Why Choose the WAGO 285-134 2-Conductor Through Terminal Block?

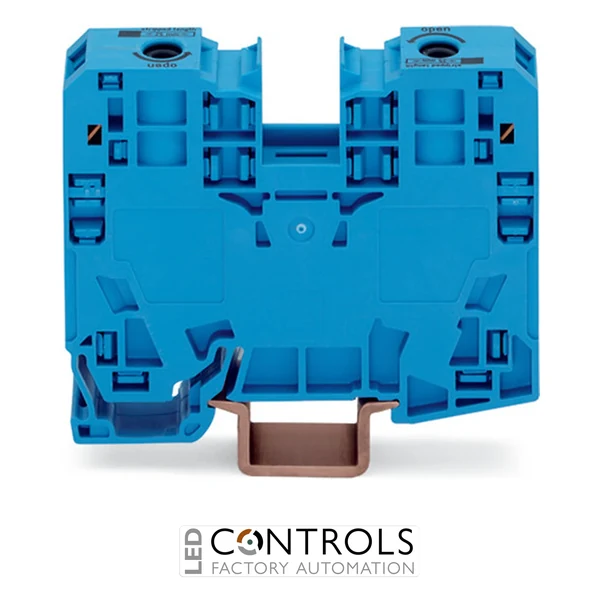

The WAGO 285-134 is a heavy-duty 2-conductor through terminal block designed for reliable high-current power distribution in industrial control panels, switchgear and machinery. Part of the WAGO 285 Series, it uses proven POWER CAGE CLAMP connection technology to provide a secure, maintenance-free spring connection for large conductor cross-sections.
Designed for a nominal conductor cross-section of 35 mm², the 285-134 accepts solid and fine-stranded copper conductors from 6–35 mm². Its POWER CAGE CLAMP connection accommodates different conductor types without conventional screw clamping, while an operating tool can lock the clamping point open to simplify conductor installation.
With IEC ratings of 1000 V and 125 A, the blue 285-134 is well suited to demanding power circuits. It features lateral marker slots for clear circuit identification and is specifically designed for mounting on a 35 × 15 mm DIN rail, providing a robust connection solution for professional industrial panel building.
Key Advantages
- Heavy-duty 2-conductor through terminal block for high-current applications.
- 35 mm² nominal cross-section for large power conductors.
- POWER CAGE CLAMP technology provides a reliable, maintenance-free spring connection.
- Accepts solid and fine-stranded copper conductors from 6–35 mm².
- 1000 V and 125 A IEC ratings for demanding industrial power circuits.
- Clamping point can be locked open using the appropriate operating tool for easier wiring.
- Lateral marker slots support clear terminal and circuit identification.
- Blue housing provides easy visual identification within terminal assemblies.
Key Features
- WAGO 285 Series high-current terminal block.
- 2-conductor through / feed-through configuration.
- 35 mm² nominal cross-section.
- POWER CAGE CLAMP connection technology.
- 6–35 mm² conductor range.
- 10–2 AWG conductor range.
- 1000 V IEC rated voltage.
- 125 A IEC rated current.
- 8 kV rated impulse voltage.
- 25 mm stripping length.
- Single-level configuration with two clamping points and one potential.
- 16 mm terminal width.
- Lateral marker slots for terminal identification.
- Designed specifically for 35 × 15 mm DIN rail mounting.
Reliable POWER CAGE CLAMP Connections for Large Conductors
WAGO POWER CAGE CLAMP technology is engineered specifically for large conductor cross-sections and high-current electrical connections. The spring-pressure connection maintains reliable contact without the routine retightening associated with conventional screw-clamp terminals, helping reduce maintenance requirements throughout the installation's service life.
The clamping point can be locked in the open position with the appropriate operating tool, simplifying conductor insertion during panel assembly. With support for different copper conductor types, high IEC electrical ratings and lateral marking facilities, the 285-134 provides a practical solution for organised high-current power distribution.
Typical Applications
- Industrial control panels and switchgear.
- High-current power distribution circuits.
- Machinery and factory automation systems.
- Motor control and drive cabinets.
- Electrical distribution equipment.
- Industrial power and feeder connections.
- OEM machinery and electrical panel building.
