Why Choose the WAGO 285-427 Power Tap?

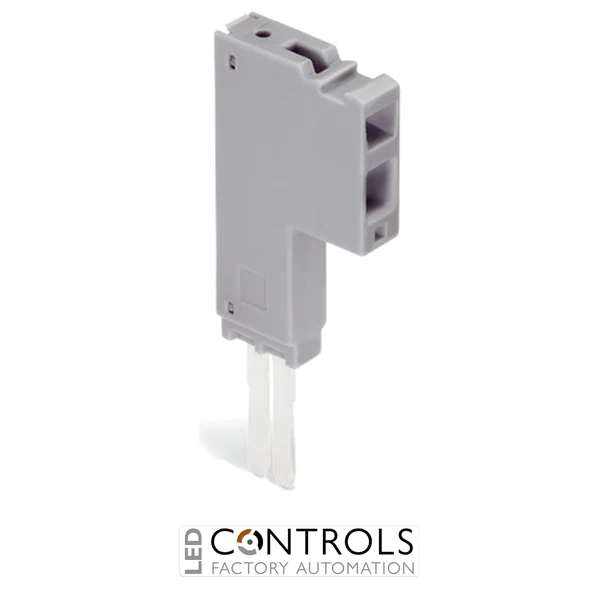

The WAGO 285-427 is a compact power tap for 35 mm² high-current terminal blocks, designed to provide a convenient branch connection from high-current terminal assemblies. Part of the WAGO 285 Series and based on POWER CAGE CLAMP connection technology, it provides a reliable solution for distributing power to smaller auxiliary conductors within industrial control and power distribution systems.
The power tap accepts conductors from 0.2–6 mm² and uses side-entry wiring, allowing a smaller conductor to be connected conveniently to a compatible 35 mm² high-current terminal block. Its spring pressure connection maintains dependable contact without the routine retightening associated with conventional screw connections, making it well suited to demanding industrial installations.
With a module width of only 8 mm, the WAGO 285-427 provides a space-efficient method of creating an additional power connection within a high-current terminal assembly. The grey module features one connection point and one potential and is suitable for applications requiring a compact power or voltage tap from WAGO 35 mm² high-current terminal blocks.
Key Advantages
- Compact power tap for 35 mm² high-current terminal blocks.
- 8 mm module width minimises required panel space.
- Supports conductor cross-sections from 0.2–6 mm².
- Side-entry wiring supports convenient conductor routing.
- Spring pressure connection provides secure and maintenance-free conductor termination.
- Provides a practical branch connection from high-current power distribution assemblies.
Key Features
- WAGO 285 Series power tap.
- Designed for 35 mm² high-current terminal blocks.
- POWER CAGE CLAMP connection technology.
- 0.2–6 mm² conductor connection range.
- 24–10 AWG conductor range.
- 8 mm module width.
- 32 A rated current.
- 800 V rated voltage.
- 8 kV rated impulse voltage.
- One connection point and one potential.
- Side-entry conductor connection.
- Grey housing for integration with high-current terminal assemblies.
Convenient Power Tapping for High-Current Terminal Assemblies
Power taps allow a smaller auxiliary conductor to be connected to a high-current terminal assembly without requiring a separate distribution arrangement. The WAGO 285-427 is specifically designed for compatible 35 mm² high-current terminal blocks, providing a compact method of taking an additional electrical connection from the terminal potential.
The 285-427 combines an 8 mm-wide format with WAGO spring pressure connection technology and side-entry wiring. This makes it particularly useful in industrial control cabinets and power distribution systems where space-efficient wiring, reliable electrical contact and straightforward installation are important.
Typical Applications
- Power tapping from 35 mm² high-current terminal blocks.
- Industrial electrical control panels and cabinets.
- Power distribution and switchgear assemblies.
- Machine building and factory automation systems.
- Motor control and industrial drive panels.
- Auxiliary power distribution within high-current terminal assemblies.
