Why Choose the IMO ERD2.5LD110DCBEIGE Double Deck Screw Clamp Terminal?

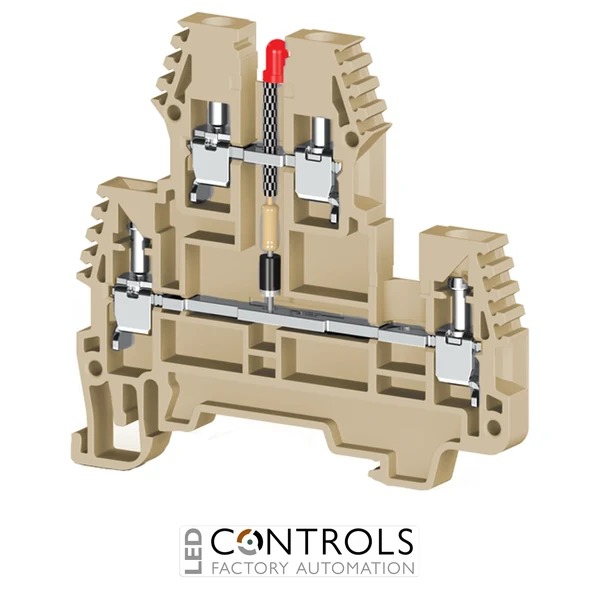

The IMO ERD2.5LD110DCBEIGE is a compact 2.5 mm² double deck screw clamp terminal block with 110 V DC LED indication, designed for high-density industrial control and signalling circuits. Part of the IMO ERD2.5 double deck terminal series, it combines two connection levels within a slim terminal profile, helping panel builders maximise wiring density while providing clear visual circuit status indication.
The ERD2.5LD110DCBEIGE uses proven screw clamp connection technology for secure and dependable conductor termination. Its integrated LED indication provides a convenient visual indication of voltage presence in compatible 110 V DC circuits, making the terminal particularly useful for control, monitoring and troubleshooting applications in industrial automation systems.
With a 300 V, 20 A UL/cUL terminal rating and a nominal conductor size of 2.5 mm², the ERD2.5LD110DCBEIGE provides a practical combination of compact wiring, reliable screw termination and integrated indication. Its double deck construction is particularly valuable in machinery, PLC panels and control cabinets where available DIN rail space must be used efficiently.
Key Advantages
- Space-saving double deck terminal design for high-density industrial wiring.
- Integrated 110 V DC LED indication provides convenient visual circuit status.
- 2.5 mm² nominal conductor size for common control and automation wiring.
- 300 V, 20 A UL/cUL terminal rating.
- Secure screw clamp connection technology for dependable conductor termination.
- Beige terminal body for easy identification within organised terminal assemblies.
- DIN rail format simplifies integration into industrial control panels and enclosures.
Key Features
- IMO ERD2.5 double deck terminal series.
- 2.5 mm² nominal cross-section.
- Double deck configuration for increased wiring density.
- Integrated LED indicator.
- 110 V DC indicator voltage.
- Screw clamp conductor connection.
- 300 V rated voltage under UL/cUL specifications.
- 20 A rated current under UL/cUL specifications.
- Beige terminal body.
- Designed for industrial DIN rail terminal assemblies.
High-Density Wiring with Visual Circuit Indication
Double deck terminal blocks place two connection levels within a single DIN rail position, enabling more conductors and circuits to be accommodated without significantly increasing the width of the terminal assembly. This makes them particularly useful in compact machinery panels, PLC cabinets and industrial control systems with high wiring densities.
The integrated 110 V DC LED adds visual indication directly at the terminal, helping engineers and maintenance personnel identify circuit status without requiring a separate panel-mounted indicator for every monitored connection. Combined with screw clamp termination, the ERD2.5LD110DCBEIGE provides a practical solution for organised and serviceable industrial control wiring.
Typical Applications
- 110 V DC industrial control circuits.
- PLC and automation control panels.
- Industrial machinery and machine building.
- Status and voltage indication circuits.
- Factory automation equipment.
- Electrical control and distribution enclosures.
- High-density DIN rail terminal assemblies.
- OEM machinery and industrial control cabinets.
