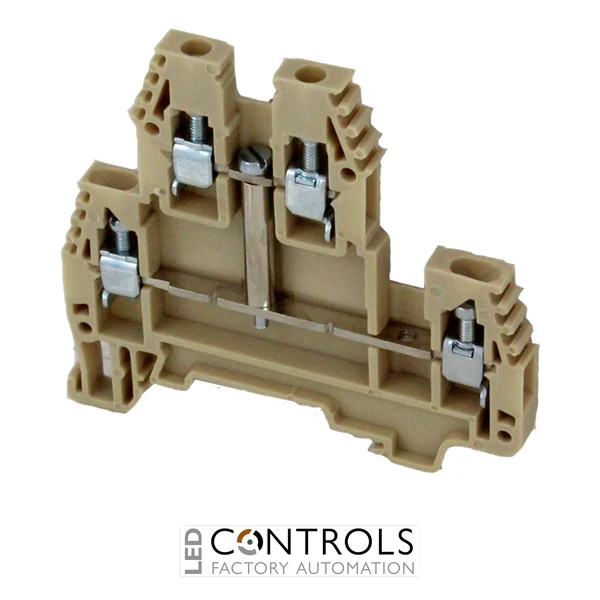

Why Choose the IMO ERD2.5VBEIGE Screw Clamp Terminal?
The IMO ERD2.5VBEIGE is a compact 2.5 mm² double-deck screw clamp terminal designed for secure and space-efficient conductor connections in industrial electrical panels, control cabinets and automation systems. Part of the IMO ERD DIN rail terminal range, it provides two connection levels within a single terminal footprint to help maximise wiring density.
The screw clamp connection system provides secure mechanical conductor retention and dependable electrical contact for industrial wiring applications. Its double-deck construction is particularly useful in densely populated control cabinets, allowing additional connection points to be accommodated without unnecessarily increasing the length of the DIN rail terminal assembly.
Rated at 300 V and 20 A with a nominal conductor cross-section of 2.5 mm², the ERD2.5VBEIGE is suited to control, signal and general industrial wiring circuits. Its beige terminal body supports an organised and consistent terminal layout within machinery, switchgear and automation equipment.
Key Advantages
- Compact double-deck terminal design helps maximise wiring density.
- 2.5 mm² nominal conductor size suitable for industrial control wiring.
- 20 A rated current for dependable electrical connections.
- 300 V rated voltage suitable for control and distribution circuits.
- Reliable screw clamp connection technology provides secure conductor retention.
- DIN rail mounting supports organised installation within electrical panels and cabinets.
Key Features
- IMO ERD series terminal block.
- Double-deck configuration for space-efficient panel wiring.
- 2.5 mm² nominal cross-section.
- 300 V rated voltage.
- 20 A rated current.
- Secure screw clamp termination.
- Beige terminal body for organised terminal assemblies.
- Designed for DIN rail-mounted industrial control and automation applications.
Space-Efficient Industrial Terminal Connections
Double-deck terminal blocks provide two connection levels within the footprint of a single DIN rail terminal, allowing more circuits to be terminated within a limited amount of panel space. This makes them particularly useful in control cabinets, machinery panels and automation systems where high wiring density and organised conductor routing are important.
The IMO ERD2.5VBEIGE combines this space-saving double-level construction with established screw clamp termination. It provides panel builders and installers with a practical solution for creating secure, accessible and organised electrical connections in industrial control and distribution systems.
Typical Applications
- Industrial electrical control panels.
- Machine-building and automation equipment.
- Control and signal wiring circuits.
- Switchgear and electrical cabinets.
- DIN rail terminal assemblies.
- Industrial machinery and production equipment.
