Why Choose the IMO ERD4FBEIGE Double Deck Fuse Terminal?

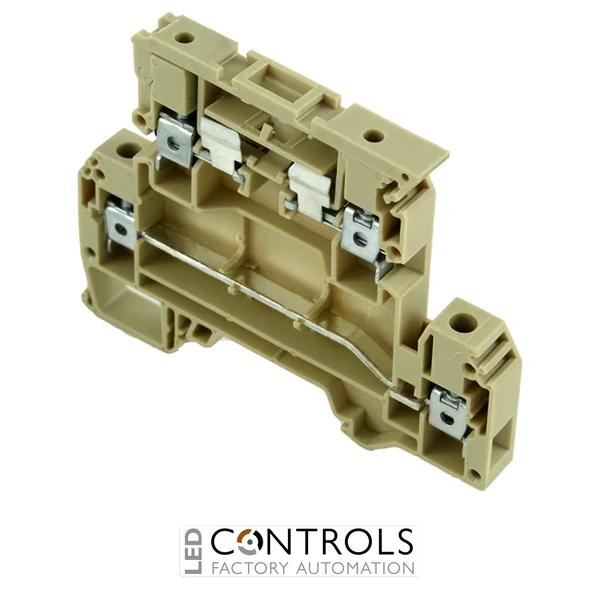

The IMO ERD4FBEIGE is a robust 4 mm² double deck screw clamp fuse terminal block designed to combine secure conductor termination with convenient circuit protection in industrial control panels and automation systems. Part of the IMO ERD4F fuse terminal range, it provides two connection levels with two inputs and two outputs, helping panel builders achieve efficient wiring while incorporating a replaceable fuse into the terminal assembly.
The ERD4FBEIGE uses proven screw clamp connection technology for secure and dependable conductor termination. Its integrated fuse holder accepts G-type 5 × 20 mm and 5 × 25 mm fuses, allowing individual circuits to be protected and serviced directly at the DIN rail terminal without requiring a separate fuse holder elsewhere in the panel.
Designed for 35 mm DIN rail, the ERD4FBEIGE has a nominal conductor cross-section of 4 mm² and a CE electrical rating of 500 V and 32 A. It supports solid and stranded conductors from 0.2–6 mm², while its compact 8 mm width makes it well suited to machinery, control cabinets and distribution systems where dependable fused connections and efficient use of panel space are essential.
Key Advantages
- Combines terminal connection and fuse protection within one DIN rail component.
- Space-efficient double deck, two-input and two-output design.
- 4 mm² nominal cross-section for industrial power and control wiring.
- 500 V, 32 A CE electrical rating.
- Accepts 5 × 20 mm and 5 × 25 mm G-type fuses.
- Supports solid and stranded conductors from 0.2–6 mm².
- Secure screw clamp connection for dependable conductor termination.
- Compact 8 mm width helps conserve DIN rail space.
Key Features
- IMO ERD4F double deck fuse terminal series.
- 4 mm² nominal conductor cross-section.
- Double deck configuration with two inputs and two outputs.
- Integrated replaceable fuse holder.
- Compatible with G / 5 × 20 mm and 5 × 25 mm fuses.
- 500 V rated voltage under CE EN 60947-7-3 specifications.
- 32 A rated current under CE specifications.
- Solid and stranded conductor capacity of 0.2–6 mm².
- 8–9 mm conductor stripping length.
- 0.5–1 Nm screw tightening torque.
- IP20 protection rating.
- 8 mm terminal width for compact panel installations.
Compact Fused Connections for Industrial Control Panels
Fuse terminal blocks combine conductor termination and replaceable overcurrent protection in a single DIN rail-mounted component. This arrangement can simplify control panel construction by reducing the need for separate fuse holders while keeping individual protected circuits clearly organised and readily accessible for inspection or maintenance.
The IMO ERD4FBEIGE combines this functionality with a double deck, two-input and two-output configuration. Its 8 mm-wide housing, broad conductor compatibility and support for standard 5 × 20 mm and 5 × 25 mm fuses make it a practical solution for protected power, control and automation circuits in compact industrial enclosures.
Typical Applications
- Industrial electrical control panels.
- PLC and automation systems.
- Protected control and signalling circuits.
- Industrial machinery and machine building.
- Electrical distribution and junction enclosures.
- Factory automation equipment.
- High-density fused DIN rail wiring assemblies.
- OEM machinery and industrial control cabinets.
