Why Choose the IMO ERDTPE2.5 Distribution Earth Terminal?

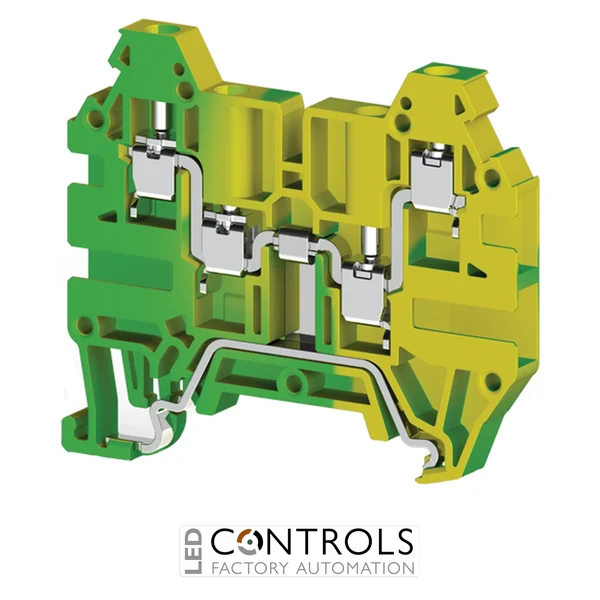

The IMO ERDTPE2.5 is a compact 2.5 mm² earth distribution terminal designed to provide organised protective earth conductor distribution within industrial electrical panels, control cabinets and automation systems. Featuring a 1-input / 3-output configuration, it allows a single incoming earth connection to be distributed efficiently to three outgoing connections.
Designed for DIN rail terminal assemblies, the ERDTPE2.5 provides a practical way to consolidate multiple protective earth connections while reducing the amount of panel space and individual wiring points required. Its distribution configuration is particularly useful in machinery and control systems where several circuits or devices require a common protective earth connection.
With a nominal conductor cross-section of 2.5 mm², the ERDTPE2.5 is suited to industrial control and equipment earthing applications. Its dedicated protective earth function helps panel builders create clearly organised and maintainable wiring systems while supporting effective distribution of protective conductors.
Key Advantages
- Dedicated protective earth distribution terminal for industrial panel wiring.
- 1-input / 3-output configuration provides convenient earth distribution.
- 2.5 mm² nominal conductor size for control and equipment earthing circuits.
- Reduces the need for multiple individual earth distribution connections.
- Compact format helps conserve valuable space within terminal assemblies.
- DIN rail installation supports organised electrical panel construction and maintenance.
Key Features
- IMO ERDT distribution terminal range.
- Dedicated earth / protective conductor terminal.
- 2.5 mm² nominal cross-section.
- 1 incoming connection.
- 3 outgoing connections.
- Compact distribution terminal configuration.
- DIN rail mounting for industrial terminal assemblies.
- Designed for machinery, automation and electrical control panel applications.
Organised Protective Earth Distribution
Protective earth distribution terminals provide a convenient central connection point for routing protective conductors to multiple circuits or devices. A distribution arrangement can simplify panel wiring by allowing one incoming protective earth conductor to serve several outgoing connections while maintaining an organised terminal layout.
The IMO ERDTPE2.5 provides one input and three outputs in a compact DIN rail-mounted format. This makes it particularly useful for machine builders and panel manufacturers seeking an efficient way to organise protective earth connections across industrial equipment, control systems and electrical enclosures.
Typical Applications
- Protective earth distribution in industrial control panels.
- Machine-building and automation equipment.
- Electrical control cabinets and enclosures.
- Switchgear and distribution assemblies.
- DIN rail terminal installations.
- Common protective earth connections for multiple circuits or devices.
