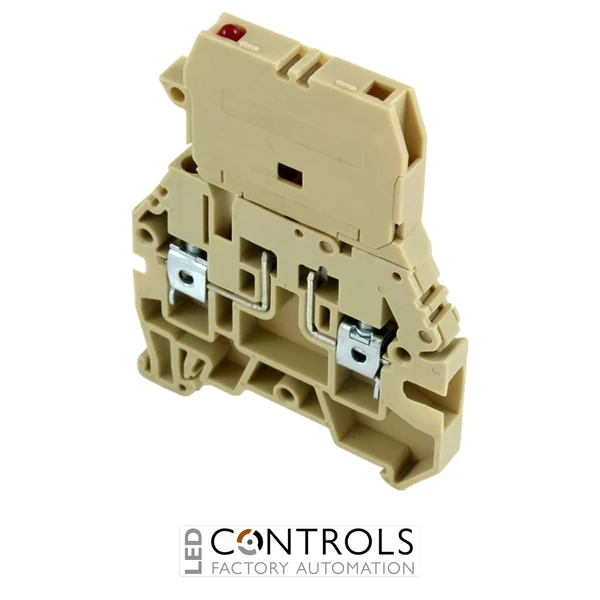

Why Choose the IMO ERF3MLD24DC Screw Clamp Fuse Terminal?
The IMO ERF3MLD24DC is a compact and reliable screw clamp fuse terminal designed for electrical protection and secure circuit distribution within industrial control panels, automation systems and DIN-rail installations. As part of the IMO ERF series of fuse terminal blocks, it combines a 4 mm² screw connection terminal with a fuse carrier and integrated LED indication for dependable circuit monitoring.
This fuse terminal provides a practical solution for protecting control circuits while allowing quick fuse replacement and clear status identification. The hinged fuse carrier design supports easy maintenance, while the compact construction enables efficient use of valuable control cabinet space.
With a 4 mm² conductor capacity, 10 A rated current and a 24 V DC LED indication circuit, the ERF3MLD24DC is suitable for industrial automation panels, machinery controls and electrical distribution applications where reliable fused protection is required.
Key Advantages
- Compact DIN-rail mounted fuse terminal for industrial control applications.
- 4 mm² conductor connection suitable for a wide range of panel wiring applications.
- 10 A rated current for reliable circuit protection.
- Integrated red LED fuse status indication at 24 V DC for quick fault identification.
- Hinged fuse carrier allows simple fuse access and replacement.
- Space-saving design for efficient electrical cabinet layouts.
Key Features
- IMO ERF series screw clamp fuse terminal.
- 4 mm² fuse terminal block design.
- 10 A rated current.
- 24 V DC LED fuse indication.
- Beige polyamide terminal housing.
- Supports cartridge fuse installation with removable carrier design.
- Compatible with standard 35 mm DIN rail mounting systems.
- Screw clamp connection technology for secure conductor retention.
Reliable Circuit Protection for Industrial Control Systems
Fuse terminals such as the IMO ERF3MLD24DC provide an efficient method of combining circuit protection and terminal connectivity within automation cabinets. By integrating the fuse holder directly into the terminal block, installation is simplified while maintaining clear separation and protection of individual circuits.
The ERF series is designed for industrial applications where reliability, easy maintenance and compact panel design are essential. The built-in LED indication helps operators quickly identify blown fuses, reducing troubleshooting time and improving system availability.
Typical Applications
- Industrial automation control panels.
- PLC and machine control circuits.
- Electrical distribution cabinets.
- Factory automation systems.
- Instrumentation and monitoring equipment.
- Machinery protection and control wiring.
