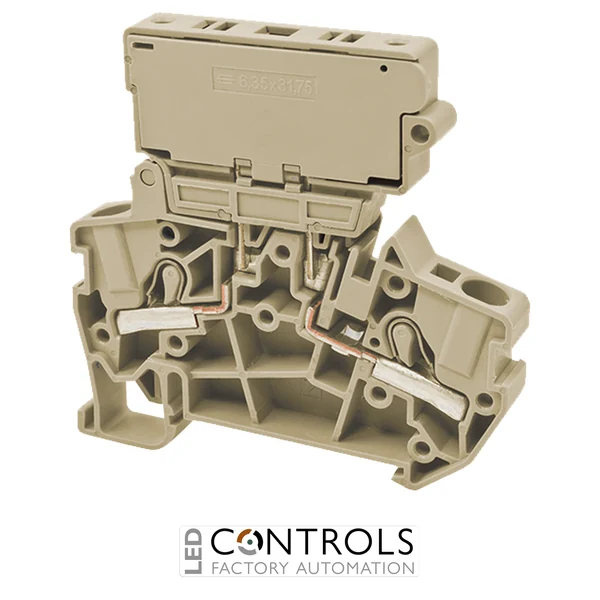

Why Choose the IMO PFD2.5LD-24VDCBEIGE Push Fit Terminal?
The IMO PFD2.5LD-24VDCBEIGE is a compact 2.5 mm² PushFit double-deck feed-through terminal block designed for high-density industrial control-panel wiring. Its two-level construction allows more connections to be accommodated within limited DIN rail space, making it particularly useful in machinery, automation and electrical control applications.
Rated at 24 A, the PFD2.5LD-24VDCBEIGE incorporates an integrated LED for 24 V DC circuits, providing convenient visual circuit indication directly at the terminal. PushFit spring connection technology supports quick conductor installation, while the beige insulating housing provides a clean and consistent appearance within professional terminal assemblies.
Designed for standard 35 mm DIN rail, the terminal measures only 5 mm wide and accepts a range of conductor sizes. This combination of double-deck construction, LED indication and space-saving PushFit termination makes the PFD2.5LD-24VDCBEIGE a practical solution for modern industrial panel building.
Key Advantages
- Double-deck construction increases wiring density while conserving DIN rail space.
- Integrated 24 V DC LED provides convenient visual circuit indication.
- 24 A rated current for industrial control and electrical wiring applications.
- 2.5 mm² terminal class suits commonly used panel wiring conductors.
- PushFit spring connection technology supports fast conductor installation.
- Compact 5 mm width enables high-density terminal assemblies.
- Designed for standard 35 mm DIN rail mounting.
- IP20 protection for installation within suitable electrical enclosures.
Key Features
- IMO PushFit terminal range.
- 2.5 mm² double-deck feed-through terminal block.
- 24 A rated current.
- Integrated LED designed for 24 V DC.
- PushFit spring connection technology.
- Beige insulating housing.
- 5 mm terminal width.
- Approximately 75.3 × 62.9 mm overall length and height.
- Designed for 35 mm DIN rail.
- Two-level construction for increased connection density.
- Solid conductor capacity from 0.34–4 mm².
- Flexible conductor capacity from 0.34–2.5 mm².
- AWG 22–12 conductor range.
- Recommended stripping length of 9–10 mm.
- IP20 terminal protection rating.
Space-Saving Double-Deck Wiring with 24 V DC LED Indication
Double-deck terminal blocks provide two connection levels within a single DIN rail position, helping panel builders increase wiring density without unnecessarily increasing cabinet dimensions. The IMO PFD2.5LD-24VDCBEIGE combines this space-saving arrangement with PushFit spring termination, allowing conductors to be connected efficiently within densely populated industrial control systems.
The integrated 24 V DC LED provides visual indication directly at the terminal, making the product particularly useful in DC control, automation and signalling circuits. Together with its 24 A rating, 5 mm width and standard 35 mm DIN rail mounting, the terminal provides a compact solution for professional machine and panel wiring.
Typical Applications
- Industrial control panels and electrical cabinets.
- 24 V DC automation and control circuits.
- PLC input and output wiring.
- Machine control and instrumentation systems.
- Circuits requiring local LED indication.
- High-density DIN rail terminal assemblies.
- Switchgear and electrical control equipment.
- OEM machinery and equipment manufacturing.
- Process control and factory automation systems.
