Why Choose the IMO PFD4GREY Push Fit Terminal?

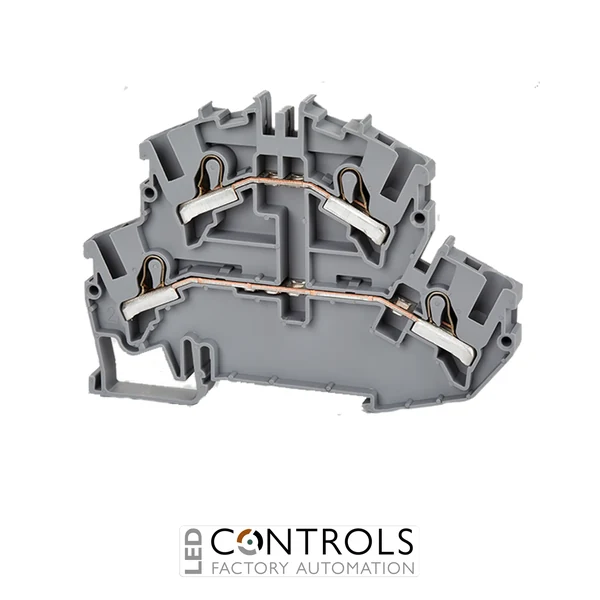

The IMO PFD4GREY is a 4 mm² double-deck PushFit feed-through terminal block designed for compact, high-density wiring in industrial control panels, machinery and electrical distribution equipment. Its two-level construction provides additional connection capacity within a single DIN rail position, helping panel builders make efficient use of available cabinet space.
Rated at 500 V and 32 A, the PFD4GREY is suitable for a broad range of industrial control and power wiring duties. IMO's PushFit spring connection technology provides fast conductor termination without conventional terminal screws, while the grey insulating housing provides a neutral and easily identifiable appearance within organised terminal assemblies.
The PFD4GREY is designed for mounting on standard 35 mm DIN rail and has a compact width of only 6 mm. With support for solid conductors up to 6 mm² and stranded conductors up to 4 mm², it provides a versatile connection solution for machine builders, automation engineers and professional control-panel manufacturers.
Key Advantages
- Double-deck construction increases connection density while conserving DIN rail space.
- 4 mm² rated cross-section suits industrial control and power wiring.
- 500 V rated voltage for professional electrical installations.
- 32 A rated current provides substantial current-carrying capability.
- PushFit spring technology supports fast and reliable conductor termination.
- Compact 6 mm width helps maximise available panel space.
- Designed for standard 35 mm DIN rail mounting.
- Grey housing provides clear and consistent terminal identification.
Key Features
- IMO PFD4 PushFit terminal range.
- 4 mm² double-deck feed-through terminal block.
- 500 V rated voltage.
- 32 A rated current.
- PushFit spring connection technology.
- Two-level terminal construction.
- Grey insulating housing.
- 6 mm terminal width.
- Designed for 35 mm DIN rail.
- Solid conductor range of 0.34–6 mm².
- Stranded conductor range of 0.25–4 mm².
- AWG 22–10 conductor range.
- Recommended conductor stripping length of 9–10 mm.
- IP20 protection rating.
- Designed in accordance with relevant EN/IEC terminal-block requirements.
Space-Saving Double-Deck PushFit Connections
Double-deck terminal blocks provide two wiring levels within a single terminal position, allowing greater connection density without requiring a corresponding increase in DIN rail length. The IMO PFD4GREY combines this space-saving configuration with PushFit spring termination, making conductor installation efficient while maintaining an organised terminal layout.
With its 500 V voltage rating, 32 A current rating and broad conductor capacity, the PFD4GREY is suitable for both control and power distribution duties within industrial equipment. Its compact 6 mm width and standard 35 mm DIN rail compatibility make it particularly useful where panel space and wiring efficiency are important considerations.
Typical Applications
- Industrial control panels and electrical cabinets.
- Machinery and factory automation systems.
- High-density DIN rail terminal assemblies.
- PLC and control-system wiring.
- Switchgear and electrical distribution equipment.
- Motor control panels and machinery.
- OEM electrical equipment manufacturing.
- Process control and production equipment.
- Industrial circuits requiring compact double-deck conductor connections.
