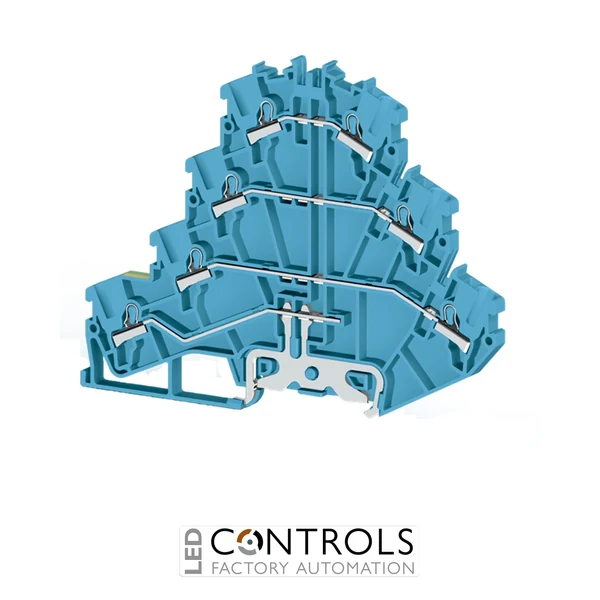

Why Choose the IMO PFT3EBLUE Push Fit Terminal?
The IMO PFT3EBLUE is a 2.5 mm² triple-level PushFit terminal block with protective earth, designed for high-density industrial control-panel wiring. Its multi-level construction combines three feed-through wiring levels with a protective-earth connection, allowing several circuits and PE termination functions to be accommodated within a compact DIN rail footprint.
Rated at 500 V and 24 A at 2.5 mm², the PFT3EBLUE uses IMO's PushFit spring connection technology for fast conductor termination. The terminal accepts solid conductors from 0.34–4 mm² and flexible conductors from 0.34–2.5 mm², providing flexibility for common automation, instrumentation and machine-control wiring.
Designed for standard 35 mm DIN rail, the PFT3EBLUE has a compact 5 mm width. Its integrated protective-earth function makes it particularly useful where signal, control and earth connections need to be organised efficiently within densely populated electrical cabinets.
Key Advantages
- Triple-level construction with protective earth maximises wiring density within limited DIN rail space.
- 2.5 mm² rated cross-section suits common industrial control and instrumentation wiring.
- 500 V rated voltage and 24 A rated current.
- Integrated protective-earth connection simplifies PE conductor termination.
- PushFit spring connection technology supports fast conductor installation.
- Compact 5 mm width helps maximise available panel space.
- Accepts both solid and flexible conductors across a useful wiring range.
- Designed for standard 35 mm DIN rail mounting.
Key Features
- IMO PF Multi Level PushFit terminal range.
- 2.5 mm² triple-level terminal block.
- Integrated protective-earth connection.
- 500 V rated voltage.
- 24 A rated current.
- PushFit spring connection technology.
- 5 mm terminal width.
- Designed for 35 mm DIN rail.
- Solid conductor range of 0.34–4 mm².
- Flexible conductor range of 0.34–2.5 mm².
- AWG 22–12 conductor range.
- Recommended stripping length of 9–10 mm.
- IP20 terminal protection rating.
- Compact multi-level design for high-density control-panel wiring.
High-Density Triple-Level Wiring with Protective Earth
Multi-level terminals allow several conductor circuits to be organised vertically rather than consuming additional DIN rail length. The IMO PFT3EBLUE combines three feed-through wiring levels with protective-earth functionality, making it particularly useful for applications where power, signal or sensor conductors and PE connections need to be grouped efficiently.
The PushFit spring connection system supports rapid conductor termination while maintaining a compact terminal arrangement. With a 500 V rating, 24 A current capacity and only 5 mm of DIN rail width, the PFT3EBLUE provides a practical solution for high-density industrial automation and machinery wiring.
Typical Applications
- Industrial control panels and electrical cabinets.
- High-density DIN rail terminal assemblies.
- PLC input and output wiring.
- Sensor and actuator connections.
- Machine control and factory automation systems.
- Instrumentation and process-control panels.
- Circuits requiring integrated protective-earth termination.
- OEM machinery and equipment manufacturing.
- Applications requiring multiple wiring levels within limited panel space.
