Why Choose the IMO PFT3SBEIGE Push Fit Sensor Terminal?

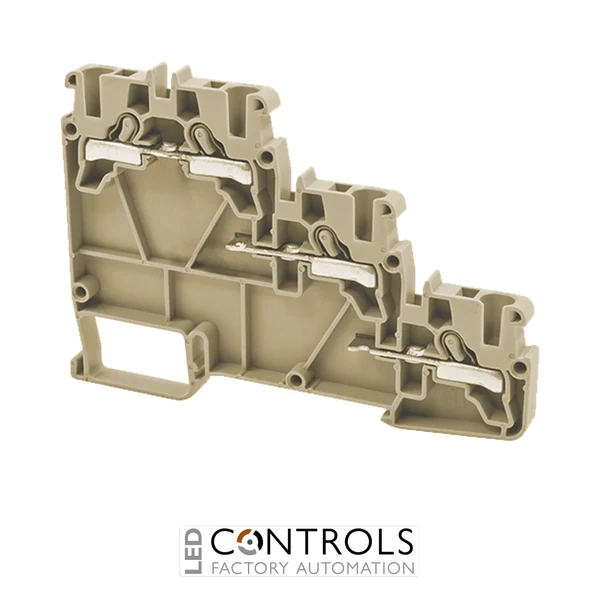

The IMO PFT3SBEIGE is a compact 2.5 mm² triple-level PushFit feed-through sensor terminal block designed for high-density wiring in industrial control panels, automation systems and machinery. Its three-level construction allows multiple sensor connections to be organised within a terminal just 5 mm wide, helping maximise available DIN rail space.
Under its CE EN 60947-7-1 rating, the PFT3SBEIGE is rated at 250 V and 24 A with a nominal cross-section of 2.5 mm². It accepts solid conductors from 0.34–4 mm² and stranded conductors from 0.34–2.5 mm², equivalent to an AWG 22–12 conductor range.
The PFT3SBEIGE uses PushFit connection technology and mounts on standard 35 × 7.5 mm DIN rail. Measuring approximately 79.4 × 5 × 58.6 mm and providing IP20 protection, it offers a practical space-saving solution for sensor and control wiring where compact, organised terminal assemblies are required.
Key Advantages
- Triple-level sensor terminal increases wiring density while conserving DIN rail space.
- PushFit connection technology enables efficient conductor termination.
- 24 A current rating at 250 V under CE EN 60947-7-1 ratings.
- Nominal 2.5 mm² cross-section for common industrial sensor and control wiring.
- Accepts 0.34–4 mm² solid and 0.34–2.5 mm² stranded conductors.
- Only 5 mm wide for high-density terminal assemblies.
- Designed for standard 35 × 7.5 mm DIN rail.
- Compatible with dedicated IMO end plates, cross-connections and terminal accessories.
Key Features
- IMO PF sensor terminal range.
- Triple-level PushFit feed-through sensor terminal block.
- 2.5 mm² nominal cross-section.
- 250 V CE rated voltage.
- 24 A CE rated current.
- 0.34–4 mm² solid conductor range.
- 0.34–2.5 mm² stranded conductor range.
- AWG 22–12 conductor range.
- 9–10 mm insulation stripping length.
- 5 mm terminal width.
- 79.4 mm length.
- 58.6 mm height.
- IP20 protection class.
- Beige terminal body.
Space-Saving Triple-Level Sensor Connections
Triple-level sensor terminal blocks are designed to organise several sensor connection functions within a narrow DIN rail footprint. The IMO PFT3SBEIGE uses a 5 mm wide, three-level construction, making it particularly useful where numerous field sensors and control connections must be terminated within a limited panel space.
PushFit termination simplifies conductor installation while the terminal's 0.34–4 mm² solid and 0.34–2.5 mm² stranded conductor capacity provides flexibility for common industrial wiring sizes. Dedicated accessories including the EPPFT3SBEIGE end plate and compatible Push In cross-connections allow coordinated terminal assemblies to be created for larger automation and control systems.
Typical Applications
- Industrial sensor wiring and field connections.
- PLC input and output wiring systems.
- Industrial control panels and electrical cabinets.
- Factory automation and production machinery.
- Process control and instrumentation systems.
- High-density DIN rail terminal assemblies.
