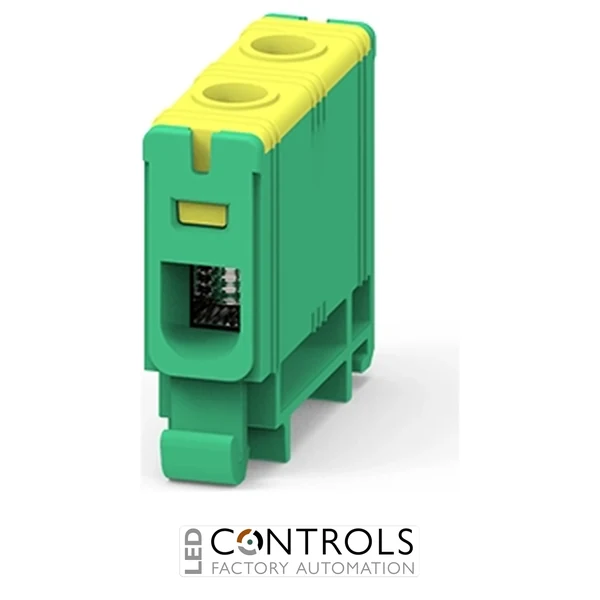

Teknomega PTB3013 single-pole two-way power terminal block for aluminium and copper conductors from 1.5 to 16 mm² with an 85 A rating and yellow-green housing for industrial electrical applications.
£2.66
The Teknomega PTB3013 is a compact and dependable single-pole power terminal block designed for safe conductor termination and power distribution within industrial switchboards, electrical cabinets and automation panels. As part of the Teknomega PTB power terminal block range, it provides a secure connection for both aluminium and copper conductors while helping create organised and efficient panel layouts.
Manufactured with a durable PA66 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductor, the PTB3013 offers excellent electrical conductivity, corrosion resistance and long-term reliability. The terminal is supplied pre-greased, eliminating the need for additional grease during installation while helping maintain consistent electrical contact.
Designed for conductor sizes from 1.5 to 16 mm², the PTB3013 has a continuous thermal current rating of 85 A. Its yellow-green housing makes it ideal for protective earth applications, while the 35 mm DIN rail mounting design enables quick installation inside industrial electrical enclosures.
The Teknomega PTB3013 provides a safe and efficient method of terminating and distributing conductors inside industrial electrical panels. Its compact construction maximises available panel space while maintaining secure cable connections and simplifying inspection and maintenance.
Suitable for both aluminium and copper conductors, the PTB3013 helps reduce inventory requirements by accommodating multiple cable types within the same installation. The tinned aluminium conductor and pre-greased connection points ensure dependable long-term electrical performance.
| Current | 85 A |
|---|---|
| Phase | Single Phase |
| IP Rating | IP20 |
| Manufacturer | Teknomega |
| Series | PTB Power Terminal Blocks |
| Model | PTB3013 |
| Reference | PTB-1-16-Y |
| Product type | Power terminal block |
| Number of poles | 1 |
| Connections | 2-way |
| Copper conductor range | 1.5–16 mm² |
| Aluminium conductor range | 1.5–16 mm² |
| Rated thermal current | 85 A |
| Short-time withstand current | 1.93 kA for 1 second |
| Peak withstand current | 2.7 kA |
| Rated insulation voltage | 1,000 V AC / 1,500 V DC |
| Impulse withstand voltage | 8 kV |
| Protection rating | IP20 |
| Pollution degree | 3 |
| Comparative tracking index | 600 V |
| Insulating body | PA66 UL94-V0 |
| Conductor material | Tinned aluminium |
| Screw material | Galvanised steel |
| Housing colour | Yellow-green |
| Mounting type | 35 mm DIN rail |
| Cable stripping length | 15 mm |
| Hex key size | 4 mm |
| Maximum operating temperature | +85 °C |
| Dimensions (H × W × D) | approx. 43.5 × 13.9 × 40.3 mm |
| Weight | approx. 0.021 kg |
| Standards | EN 60947-7-1 and EN 61238-1-1 |
| HS Code | 85369095 |
The PTB3013 is used for terminating and distributing electrical conductors inside industrial switchboards, control panels and electrical enclosures.
The terminal supports both aluminium and copper conductors from 1.5 to 16 mm².
The PTB3013 has a continuous thermal current rating of 85 A when installed correctly.
The terminal block clips directly onto a standard 35 mm DIN rail for quick installation inside electrical cabinets.
The yellow-green housing is commonly used to identify protective earth connections within electrical installations.
Teknomega power terminal blocks are widely used by panel builders, industrial electricians and OEM manufacturers for dependable conductor termination, compact installation and long-term electrical reliability.
