Why Choose the Teknomega PTB3111 Power Terminal Block?

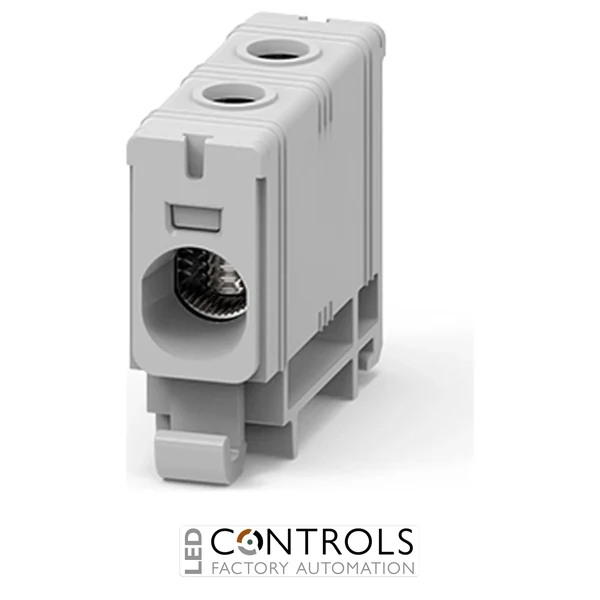

The Teknomega PTB3111 is a compact 1-pole, 2-way power terminal block designed for reliable conductor connections within industrial switchboards, electrical distribution panels and automation cabinets. Also referenced as PTB-1-35-G, it provides a secure 1 input / 1 output connection for copper or aluminium conductors up to 35 mm².
The PTB3111 combines a durable PA66 UL 94-V0 insulating body and cover with a tinned aluminium conductor block and galvanised steel screws. This construction provides dependable electrical contact and secure mechanical clamping while the self-extinguishing insulating material supports safe installation within industrial electrical enclosures.
With a rated insulation voltage of 1000 V AC / 1500 V DC, an impulse withstand voltage of 8 kV and IP20 protection, the PTB3111 is suited to demanding power distribution applications. Its compact grey housing measures approximately 47.4 × 16.3 × 40.3 mm, helping panel builders create organised high-current connections while conserving valuable enclosure space.
Key Advantages
- Compact 1-pole, 2-way power terminal for industrial panel wiring.
- Supports copper and aluminium conductors up to 35 mm².
- 1000 V AC / 1500 V DC rated insulation voltage for demanding electrical systems.
- 8 kV impulse withstand voltage for robust insulation performance.
- Self-extinguishing PA66 UL 94-V0 insulating body and cover.
- Tinned aluminium conductor block provides reliable electrical connectivity.
- Compact IP20 construction for installation within electrical enclosures.
Key Features
- Teknomega PTB power terminal series.
- 1-pole configuration.
- 2-way / 1 input and 1 output connection.
- 2.5–35 mm² Cu/Al conductor capacity.
- 1000 V AC / 1500 V DC rated insulation voltage.
- 8 kV rated impulse withstand voltage.
- IP20 degree of protection.
- PA66 UL 94-V0 insulating body and cover.
- Tinned aluminium conductive block.
- Galvanised steel clamping screws.
- Maximum continuous operating temperature of +85 °C.
- Grey housing for general power conductor applications.
Reliable Power Connections for Industrial Panels
Power terminal blocks such as the Teknomega PTB3111 provide a secure connection point for higher-current conductors within electrical distribution and control equipment. The 1-pole, 2-way arrangement allows an incoming conductor to be securely connected to an outgoing conductor while maintaining an organised and serviceable panel wiring layout.
The combination of a tinned aluminium conductive block, galvanised steel screws and PA66 UL 94-V0 insulation makes the PTB3111 suitable for professional industrial panel building. Its compatibility with both copper and aluminium conductors provides additional flexibility when designing switchboards, automation cabinets and machinery electrical systems.
Typical Applications
- Industrial switchboards and distribution panels.
- Electrical control panels and automation cabinets.
- Machine building and OEM electrical assemblies.
- Power conductor termination and connection.
- Industrial machinery electrical systems.
- Copper and aluminium conductor connections.
- Compact high-current wiring within electrical enclosures.
