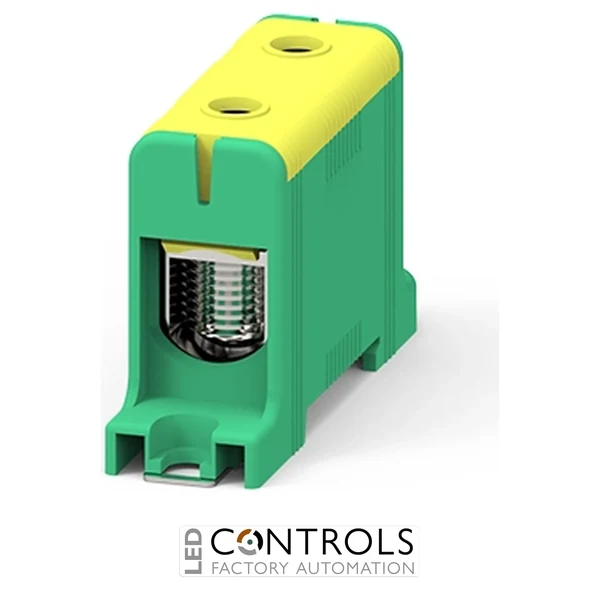

Teknomega PTB3313 heavy-duty single-pole yellow-green power terminal block for aluminium and copper conductors from 16 to 95 mm² with a 245 A copper current rating for industrial electrical distribution.
£6.71
The Teknomega PTB3313 is a heavy-duty single-pole power terminal block designed for the safe termination of large aluminium and copper conductors within industrial switchboards, electrical distribution boards and automation control panels. As part of the robust Teknomega PTB power terminal block range, it provides reliable, high-current electrical connections while maintaining a compact installation footprint.
Manufactured with a durable PA66 UL94-V0 self-extinguishing insulating body, a tinned aluminium conductor block and galvanised steel clamping screws, the PTB3313 delivers excellent conductivity, corrosion resistance and long-term mechanical reliability. The conductor block is supplied pre-greased, improving conductor contact and simplifying installation of both aluminium and copper cables.
Supporting conductor sizes from 16 to 95 mm², the PTB3313 offers a continuous thermal current rating of 245 A (Cu) and 220 A (Al). Its yellow-green housing makes it ideal for protective earth conductor identification, while its versatile design supports installation on a 35 mm DIN rail or directly onto a panel.
The Teknomega PTB3313 is designed for terminating large protective earth conductors used within industrial electrical distribution systems. Its heavy-duty construction delivers dependable electrical continuity while maintaining a compact footprint inside switchboards and electrical panels.
Compatible with both aluminium and copper conductors, the PTB3313 reduces inventory requirements by supporting multiple cable types within a single installation. Its tinned aluminium conductor block and pre-greased connection points help deliver long-term electrical reliability in demanding industrial environments.
| Current | 245 A |
|---|---|
| Phase | Single Phase |
| IP Rating | IP20 |
| Manufacturer | Teknomega |
| Series | PTB Power Terminal Blocks |
| Model | PTB3313 |
| Reference | PTB-1-95-Y |
| Product type | Power terminal block |
| Number of poles | 1 |
| Connections | 1 input / 1 output |
| Copper conductor range | 16–95 mm² |
| Aluminium conductor range | 16–95 mm² |
| Rated thermal current (Cu) | 245 A |
| Rated thermal current (Al) | 220 A |
| Short-time withstand current | 11.4 kA for 1 second |
| Peak withstand current | 22.8 kA |
| Rated insulation voltage | 1,000 V AC / 1,500 V DC |
| Impulse withstand voltage | 8 kV |
| Protection rating | IP20 |
| Pollution degree | 3 |
| Comparative tracking index | 600 V |
| Insulating body | PA66 UL94-V0 |
| Conductor material | Tinned aluminium |
| Screw material | Galvanised steel |
| Housing colour | Yellow-green |
| Mounting type | 35 mm DIN rail or panel mounting |
| Cable stripping length | 27 mm |
| Hex key size | 5 mm |
| Tightening torque | 20 Nm |
| Maximum operating temperature | +85 °C |
| Dimensions (H × W × D) | approx. 89.1 × 24.3 × 49.6 mm |
| Weight | approx. 0.09 kg |
| Pack quantity | 3 |
| Standards | EN 60947-7-1 and EN 61238-1-1 |
| HS Code | 85369095 |
The PTB3313 is designed for terminating large aluminium and copper conductors within industrial switchboards, electrical panels and protective earth distribution systems.
The terminal accepts aluminium and copper conductors from 16 to 95 mm².
The PTB3313 is rated at 245 A for copper conductors and 220 A for aluminium conductors.
The terminal can be mounted onto a standard 35 mm DIN rail or directly onto a panel using suitable mounting hardware.
The yellow-green housing provides clear identification for protective earth conductor connections in industrial electrical installations.
Teknomega PTB power terminal blocks are trusted by panel builders, OEM manufacturers and industrial electricians for dependable high-current conductor termination and safe industrial power distribution.
