Why Choose the Teknomega PTB3612 Power Terminal Block?

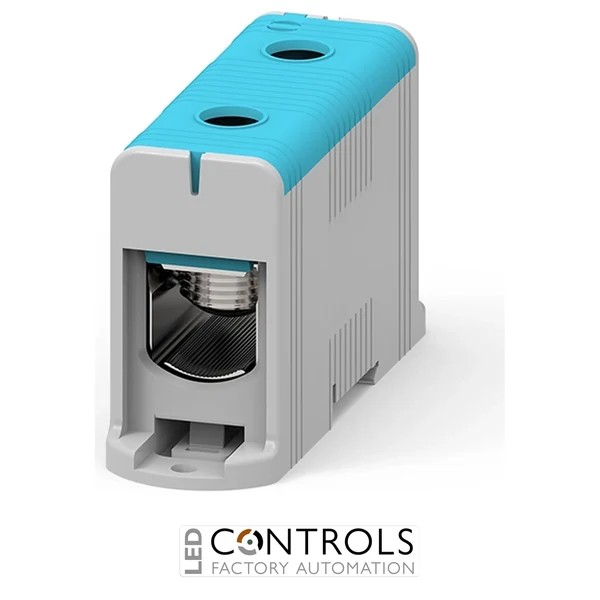

The Teknomega PTB3612 is a heavy-duty 1-pole power terminal block designed for terminating large power conductors within industrial switchboards, distribution panels and control cabinets. Also referenced as PTB-1-300-B, it provides a 1 input / 1 output arrangement for direct high-current feeder connections.
Designed to accommodate both copper and aluminium conductors from 35–300 mm², the PTB3612 combines a tinned aluminium conductive block with galvanised steel clamping screws. Its insulating body and cover are manufactured from PA66 UL 94-V0 material, providing a robust self-extinguishing enclosure around the conductive components.
The PTB3612 has a rated insulation voltage of 1000 V AC / 1500 V DC, an impulse withstand voltage of 8 kV and an IP20 degree of protection. Its blue housing provides clear identification within electrical panels, while DIN rail and base-plate mounting options support flexible installation in demanding industrial power distribution systems.
Key Advantages
- Heavy-duty 1-pole power terminal for large industrial conductors.
- 1 input / 1 output configuration for direct feeder termination.
- Accepts 35–300 mm² copper and aluminium conductors.
- Conventional thermal current of 520 A with copper conductors.
- Conventional thermal current of 440 A with aluminium conductors.
- 1000 V AC / 1500 V DC rated insulation voltage.
- 36 kA short-time withstand current for 1 s.
- 75.6 kA peak withstand current.
- Self-extinguishing PA66 UL 94-V0 insulating construction.
- Blue housing provides convenient identification in electrical distribution panels.
Key Features
- Teknomega Ω BLOCK PTB series.
- 1-pole configuration.
- 2 conductor connections: 1 input / 1 output.
- 35–300 mm² Cu/Al conductor capacity.
- 520 A conventional thermal current with copper.
- 440 A conventional thermal current with aluminium.
- 1000 V AC / 1500 V DC rated insulation voltage.
- 8 kV rated impulse withstand voltage.
- IP20 degree of protection.
- PA66 UL 94-V0 insulating body and cover.
- Tinned aluminium conductive block.
- Galvanised steel clamping screws.
- Maximum continuous operating temperature of +85 °C.
- Suitable for 35 mm DIN rail or base-plate mounting.
- Blue housing.
High-Current Power Termination for Industrial Panels
The Teknomega PTB3612 is engineered for large feeder conductors where secure mechanical clamping and dependable electrical continuity are essential. Its 1 input / 1 output configuration provides a straightforward connection between two large conductors, while the 35–300 mm² capacity makes it suitable for substantial industrial power circuits.
The combination of a tinned aluminium conductive block, galvanised steel screws and PA66 UL 94-V0 insulation allows the PTB3612 to accommodate both copper and aluminium cables. Its 520 A Cu and 440 A Al thermal current ratings, together with high short-circuit withstand capability, make it a practical solution for high-current switchboard and machinery applications.
Typical Applications
- Main feeder termination in industrial switchboards.
- Neutral conductor connections in electrical distribution panels.
- High-current power distribution systems.
- Industrial control panels and automation cabinets.
- Large copper and aluminium conductor termination.
- Machine building and OEM electrical assemblies.
- Industrial machinery and production equipment.
- Electrical distribution infrastructure.
