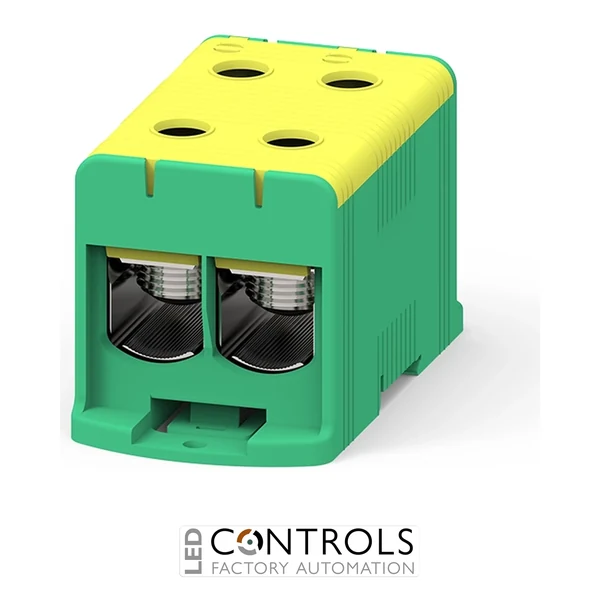

Teknomega PTB3623 yellow-green single-pole 2 input / 2 output power terminal block for aluminium and copper conductors up to 300 mm², designed for industrial electrical distribution and protective earth applications.
£44.98
The Teknomega PTB3623 is a heavy-duty single-pole power terminal block designed for high-current electrical distribution within industrial switchboards, automation cabinets and power distribution panels. Also referenced as PTB-2-300-Y, this yellow-green terminal block features a 2 input / 2 output configuration, making it ideal for distributing large aluminium and copper conductors from a single connection point. It is particularly suited to protective earth and equipotential bonding applications where reliable high-current termination is essential.
Manufactured using a durable PA66 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductor block, the PTB3623 provides excellent electrical conductivity while allowing direct connection of both aluminium and copper conductors. Pre-greased connection chambers help reduce oxidation and ensure dependable long-term performance in demanding industrial environments.
Supporting conductor sizes from 35 mm² to 300 mm², the PTB3623 is rated for 1000 V AC / 1500 V DC with an 8 kV impulse withstand voltage. Its robust construction allows installation on standard DIN rail or directly onto mounting panels, making it ideal for industrial power distribution systems.
The Teknomega PTB3623 provides a secure and organised method of distributing high-current conductors within industrial electrical panels. Its dual connection design enables feeder cables to be split efficiently while maintaining safe, low-resistance electrical connections that improve installation reliability.
Designed for switchboards, OEM machinery and automation systems, the PTB3623 combines durable construction with excellent electrical performance. Compatibility with both aluminium and copper conductors makes it an ideal solution for protective earth systems, industrial power distribution and modern electrical installations.
| Current | 440 A |
|---|---|
| Phase | Single Phase |
| IP Rating | IP20 |
| Manufacturer | Teknomega |
| Series | PTB Power Terminal Blocks |
| Model | PTB3623 |
| Reference | PTB-2-300-Y |
| Product type | Power terminal block |
| Number of poles | 1 |
| Connections | 2 input / 2 output |
| Conductor size | 35 to 300 mm² (Al/Cu) |
| Current rating | 520 A (Cu), 440 A (Al) |
| Short-time withstand current (Icw) | 36 kA (1 s) |
| Peak withstand current (Ipk) | 75.6 kA |
| Rated insulation voltage (Ui) | 1000 V AC / 1500 V DC |
| Impulse withstand voltage (Uimp) | 8 kV |
| Pollution degree | PD3 |
| Comparative tracking index (CTI) | 600 V |
| Protection rating | IP20 |
| Insulating body | PA66 UL94-V0 |
| Conductor material | Tinned aluminium |
| Screw material | Galvanised steel |
| Maximum operating temperature | +85 °C |
| Colour | Yellow-green |
| Mounting type | DIN rail or panel mounting |
| Dimensions (L × W × H) | approx. 132.3 × 71.7 × 77 mm |
| Weight | approx. 0.85 kg |
| Standards | EN 60947-7-1, EN 61238-1-1 |
| HS Code | 85369095 |
The PTB3623 is used to distribute and terminate large aluminium and copper conductors within industrial switchboards, electrical distribution panels and protective earth systems.
The terminal supports aluminium and copper conductors ranging from 35 mm² to 300 mm².
Yes. The tinned aluminium conductor block is designed to provide reliable and secure connections for both aluminium and copper conductors.
The PTB3623 has a rated insulation voltage of 1000 V AC / 1500 V DC and an impulse withstand voltage of 8 kV.
The terminal is designed for installation on a standard DIN rail or directly onto a mounting panel within electrical enclosures.
Teknomega PTB power terminal blocks are trusted by panel builders, OEM manufacturers and electrical engineers for delivering dependable high-current conductor connections in industrial power distribution and grounding applications.
