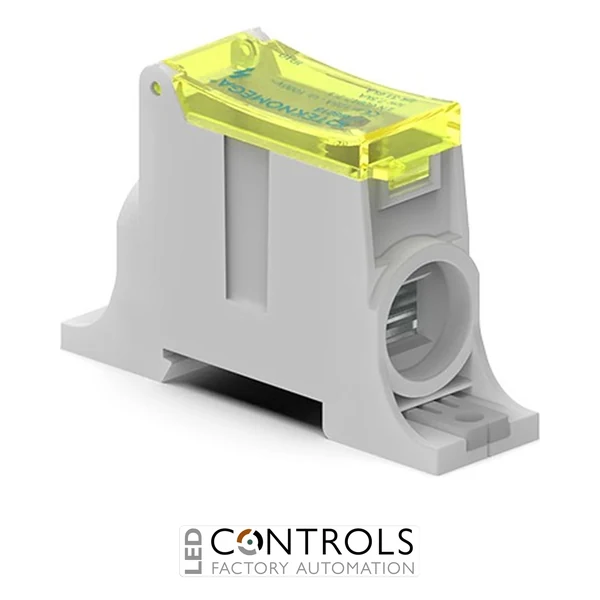

Teknomega PTB6015 single-pole 125A power terminal block with 1 input and 1 output for copper and aluminium conductors up to 35mm².
£7.98
The Teknomega PTB6015 is a robust single-pole power terminal block designed for safe and reliable termination of high-current conductors in industrial switchboards, electrical distribution boards and control panels. Also referenced as PTB 125, it features a 1 input / 1 output configuration and is rated for 125A, making it ideal for compact power distribution and feeder cable termination.
Manufactured using a PA66 UL94-V0 self-extinguishing insulating body with a tinned aluminium conductor block, the PTB6015 offers excellent electrical conductivity while allowing secure termination of both copper and aluminium conductors. Heavy-duty galvanised steel clamping screws provide dependable mechanical retention, while the protective cover helps improve installation safety.
Suitable for conductor sizes from 10 mm² to 35 mm² (wire with ferrules) or up to 35 mm² stripped conductors, the PTB6015 is rated for 1000V insulation voltage with a 7.5kA short-time withstand current. Its compact design enables installation on DIN rail or directly onto mounting panels inside electrical enclosures.
The Teknomega PTB6015 provides a compact yet highly reliable solution for terminating medium-current power conductors within industrial electrical installations. Its robust construction ensures low-resistance electrical connections while simplifying switchboard assembly and maintenance.
Designed for OEM panel builders, electrical contractors and industrial maintenance engineers, the PTB6015 delivers dependable performance in machinery, commercial buildings and power distribution equipment where safe cable termination is essential.
| Current | 125 A |
|---|---|
| Phase | Single Phase |
| IP Rating | IP10 |
| Manufacturer | Teknomega |
| Series | PTB Power Terminal Blocks |
| Model | PTB6015 |
| Reference | PTB 125 |
| Product type | Power terminal block |
| Number of poles | 1 |
| Connections | 1 input / 1 output |
| Current rating | 125A |
| Stripped conductor | 25–35 mm² |
| Conductor with ferrule | 10–35 mm² |
| Rated insulation voltage (Ui) | 1000V |
| Short-time withstand current (Icw) | 7.5kA (1s) |
| Peak withstand current (Ipk) | 31.6kA |
| Protection rating | IP20 |
| Insulating body | PA66 UL94-V0 |
| Conductor material | Tinned aluminium |
| Screw material | Galvanised steel |
| Maximum operating temperature | +85°C |
| Colour | Grey |
| Mounting | DIN rail or panel mounting |
| Dimensions | 84 × 24 × 54 mm |
| Weight | 0.110kg |
| Standard | EN 60947-7-1 |
| HS Code | 85369095 |
The PTB6015 is a 125A power terminal block designed for terminating and distributing conductors inside industrial switchboards and electrical distribution panels.
It accepts stripped conductors from 25–35 mm² and ferruled conductors from 10–35 mm².
Yes. The tinned aluminium conductor block is suitable for both copper and aluminium cable termination.
The PTB6015 has a rated insulation voltage of 1000V.
The terminal block can be mounted on a DIN rail or directly onto a mounting panel within an electrical enclosure.
Teknomega PTB power terminal blocks are trusted by panel builders, OEM manufacturers and electrical engineers for providing dependable, high-quality conductor termination in industrial electrical distribution systems.
