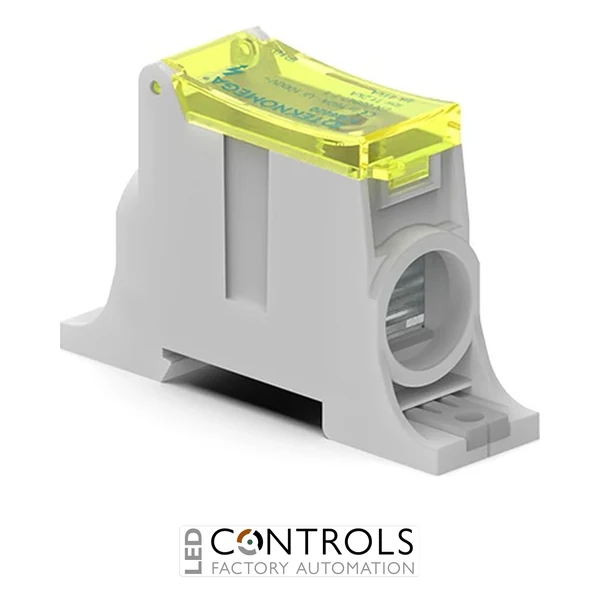

Teknomega PTB6020 single-pole 160A power terminal block with 1 input and 1 output for copper and aluminium conductors up to 70mm².
£10.52
The Teknomega PTB6020 is a compact single-pole power terminal block designed for reliable conductor termination and power distribution in industrial switchboards, electrical distribution panels and automation cabinets. Also referenced as PTB 160, it features a 1 input / 1 output configuration with a 160A current rating, making it ideal for medium-current feeder circuits and industrial electrical installations.
Manufactured with a durable PA6 UL94-V0 self-extinguishing insulating body and a tinned aluminium conductor block, the PTB6020 delivers excellent conductivity, corrosion resistance and dependable long-term performance. The transparent protective cover reduces the risk of accidental contact while allowing quick visual inspection of cable terminations.
Suitable for conductor sizes from 25 mm² to 70 mm² (stripped conductors) or 10 mm² to 50 mm² (with ferrules), the PTB6020 offers a 1000V rated insulation voltage, 11.2kA short-time withstand current and 41kA peak withstand current, making it suitable for demanding industrial power distribution systems.
The Teknomega PTB6020 provides a dependable solution for terminating medium-current conductors in industrial electrical systems. Its compact footprint enables efficient panel layouts while maintaining secure, low-resistance electrical connections for reliable long-term operation.
Ideal for panel builders, OEM manufacturers and electrical contractors, the PTB6020 is suitable for industrial machinery, automation equipment, commercial installations and electrical distribution systems where safe conductor termination is essential.
| Current | 160 A |
|---|---|
| Phase | Single Phase |
| IP Rating | IP10 |
| Manufacturer | Teknomega |
| Series | PTB Power Terminal Blocks |
| Model | PTB6020 |
| Reference | PTB 160 |
| Product type | Power terminal block |
| Number of poles | 1 |
| Connections | 1 input / 1 output |
| Current rating | 160A |
| Stripped conductor | 25–70 mm² |
| Conductor with ferrule | 10–50 mm² |
| Rated insulation voltage (Ui) | 1000V |
| Impulse withstand voltage (Uimp) | 8kV |
| Short-time withstand current (Icw) | 11.2kA (1 second) |
| Peak withstand current (Ipk) | 41kA |
| Protection rating | IP10 |
| Insulating body | PA6 UL94-V0 |
| Conductor material | Tinned aluminium |
| Screw material | Galvanised steel |
| Maximum operating temperature | +85°C |
| Colour | Grey |
| Mounting | DIN rail or panel mounting |
| Dimensions | 84 × 24 × 54 mm |
| Weight | 0.115kg |
| Standard | EN 60947-7-1 |
| HS Code | 85369095 |
The PTB6020 is a 160A power terminal block used for terminating and distributing conductors inside industrial switchboards, electrical panels and automation systems.
It accepts stripped conductors from 25–70 mm² and ferruled conductors from 10–50 mm².
Yes. The tinned aluminium conductor block is designed to provide secure connections for both copper and aluminium conductors.
The PTB6020 has a rated insulation voltage of 1000V and an impulse withstand voltage of 8kV.
The terminal block can be mounted directly onto a DIN rail or onto a mounting panel within an electrical enclosure.
Teknomega PTB power terminal blocks are trusted by panel builders, OEM manufacturers and electrical engineers for delivering dependable conductor termination and safe industrial power distribution.
